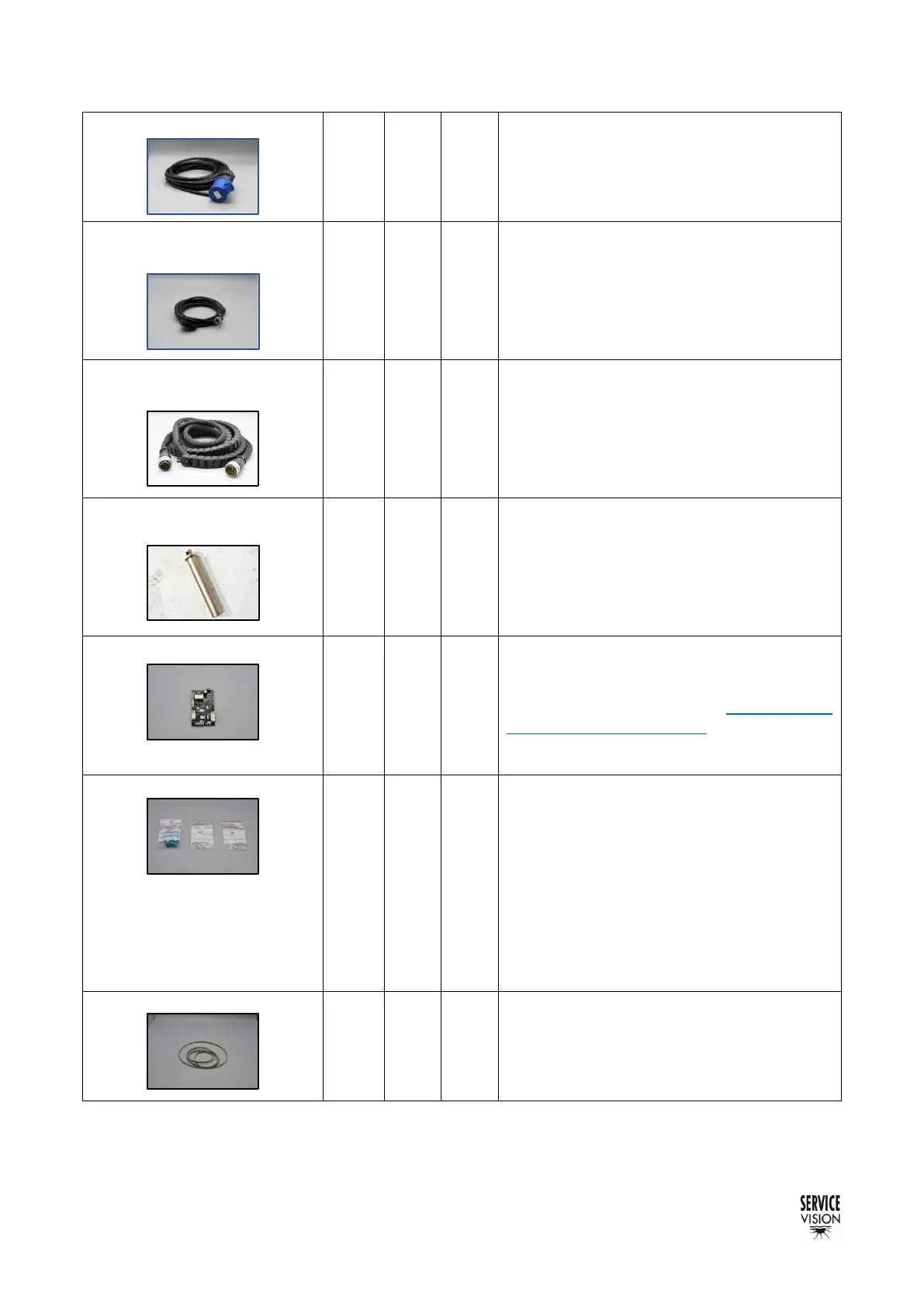

SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Accessories
Version 1.02 May 27, 2022
42
S38’-45’ AC Power cable
7642
7622
1
1
1
1
Open end AC power cable
AC power cable.
S38’-45’ AC Power cable for
Power Unit.
0193
1
1
To power the Power unit from the Electronic
box.
S38’-45’ Dynamic counter-
weights cable
7304
7626
1
1
To control the motor on the counterweight
system from the E.B.
S38’ Locking bolt for
collapsible arms on the dolly
7331
2 (1)
This bolt is used to fix the collapsible arms
for the dolly in the extended position
Servo I
7658
1
1
There are different digital boards inside the
Electronic box. To understand the function
of each board and identify which one could
have a problem see the chapter 2.5.4
Internal Working concepts. Also, the LEDs
outside the Electronic box and the LH gives
information about the status of the boards.
Kit of fuses
0092
0093
7320
7321
7322
7323
7324
7710
7728
7727
7661
2
2
2
4
2
2
2
2
2
2
2
2
2
7A Fuse (Power Unit input)
20A Fuse (Power Unit output)
S38’ 60A Fuse
S38’ Fuse shunt 10A
S38’ Fuse 7A P.S AC IN
S38’ Fuse 2A safety
S38’ 4A Fuse
S45’ 4A Fuse
S45’ 2A Fuse safety
S45’ Fuse shunt 10A
S45’ 60A Fuse
S38’-45’ Belts
7617
7618
1(1)
1(1)
1(1)
1(1)
Encoder belt for Pan T5 990
Encoder belt for Tilt T2.5 600
