Product Description CDHD
6 Servotronix
2.2 Technical Specifications
2.2.1 Dimensions

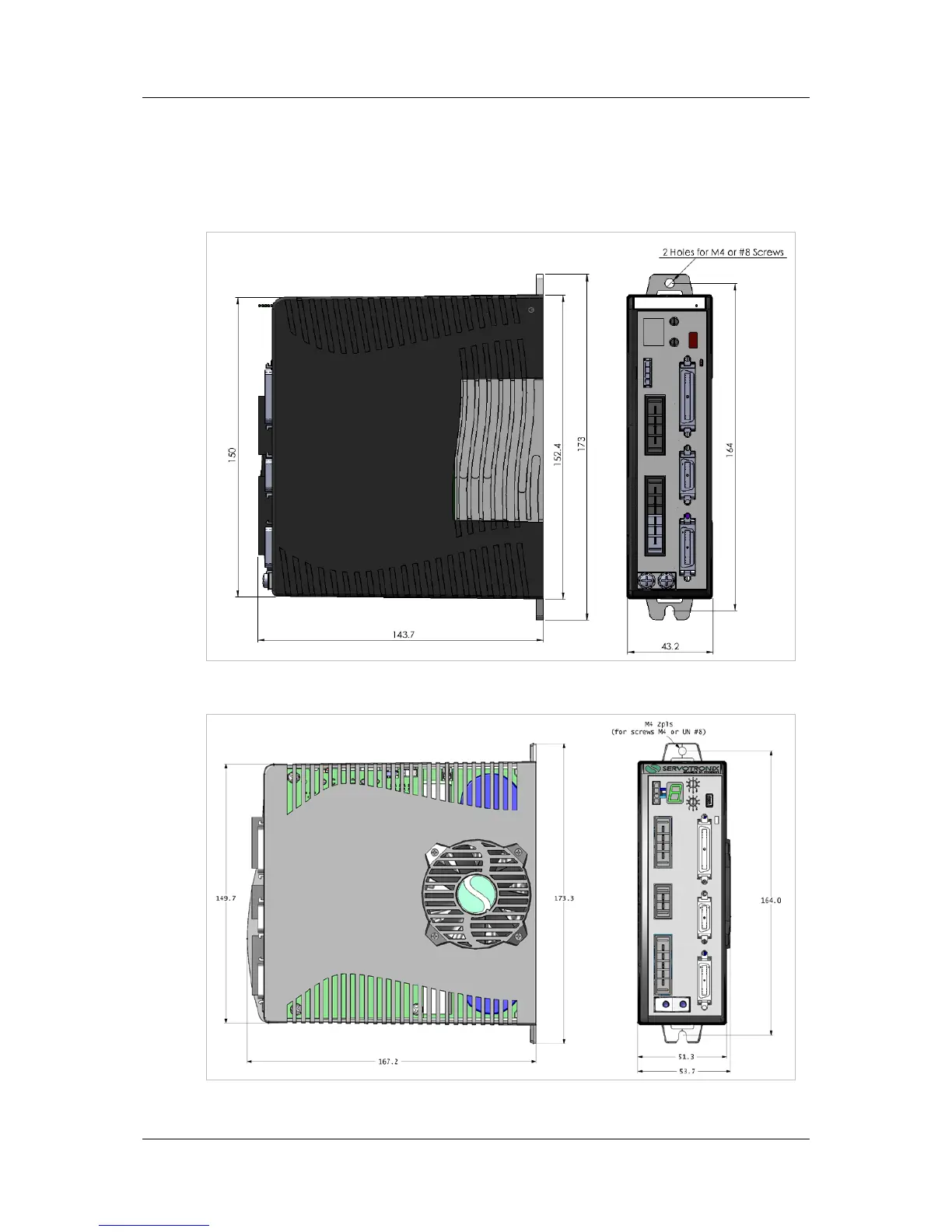

The exterior dimensions of the CDHD-1D5 and CDHD-006 are shown in
Figure 2-1 and Figure 2-1, respectively
Figure 2-1. CDHD-1D5 Dimensions (in mm)
Figure 2-2. CDHD-006 Dimensions (in mm)
