CDHD Installation

User Manual 21

Table 3-3. Motor Interface Mating Connector

Item Specification

Manufacturer JST

Housing and

4-pin crimp

Part # F32FSS04-V-KX and

Part # SF3F71-GF-P0.2

Spring terminal Part # 04JFAT-SAYGF-I

Wire Gauge 14–16 AWG

3.4.2 Connect STO (P1)

Safe torque off (STO) is a safety function that prevents the drive from delivering

power to the motor, which can generate torque.

STO Enable and STO Return must be connected to enable CDHD operation. The

STO Enable signal voltage must be 24 VDC.

Using the supplied mating connector, connect the STO interface.

If the application does not require STO functionality, connect pin 4 to pin 1, and

pin 3 to pin 2.

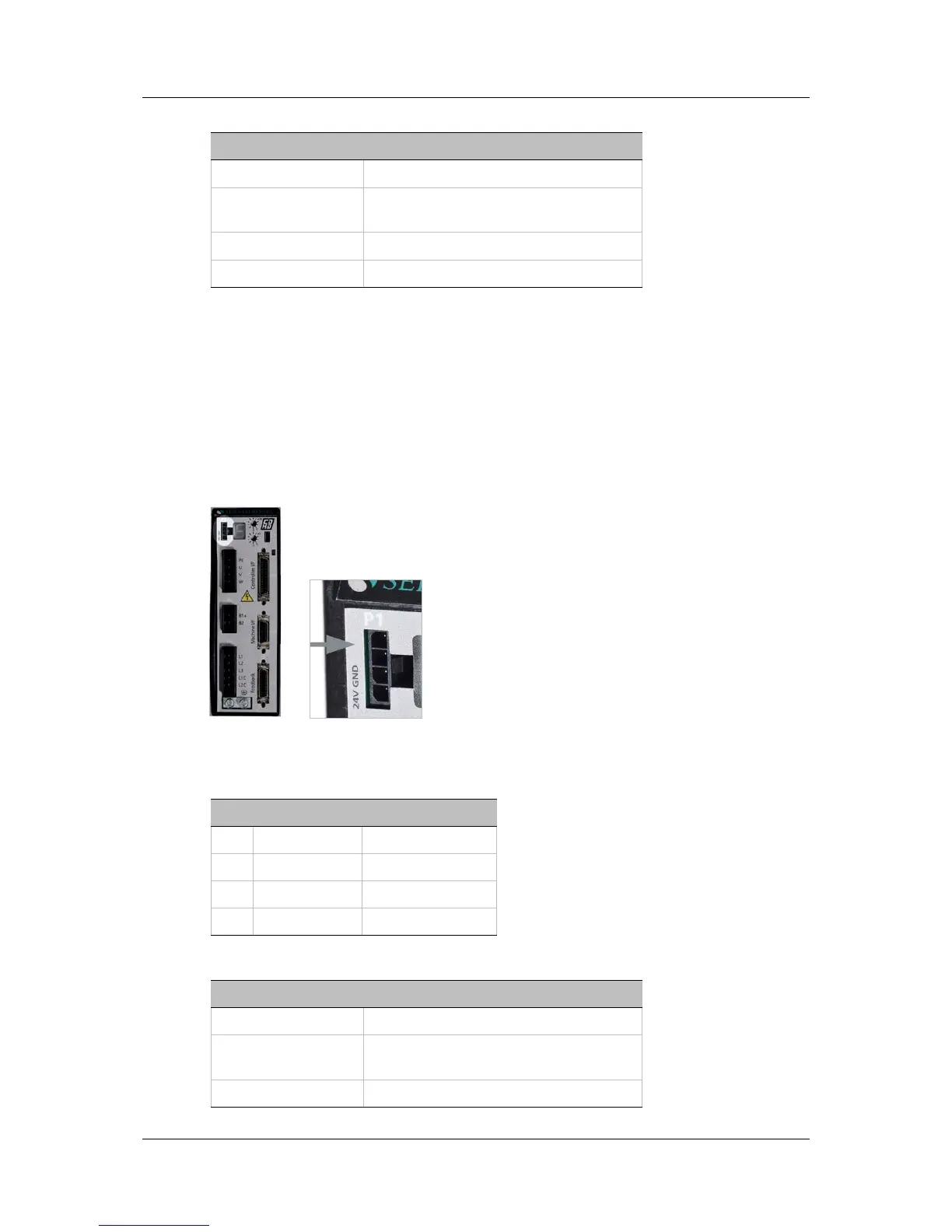

Figure 3-3. STO Interface

Table 3-4. STO Interface

Pin Pin Label Function

1 24V STO Enable

2 GND STO Return

3 24V Return

4 24V Supply

Table 3-5. STO Interface Mating Connector

Item Specification

Manufacturer Molex

Housing and

4-pin crimp

Part # 436450400 and

Part # 436450400

Wire Gauge 26–30 AWG
