Super II Introduction 7
Installing Your Scale
Setup
1. Locating your scale.
The rugged design of your
Super II scale ensures that it will be able to operate well in the typical factory or office
environment. Nonetheless, you should always treat your scale as you would any other piece of precision equipment,
locating it on a clean dry surface, protected from draft and vibration. CE certification only applies to use of the scale in an
Indoor Environment.

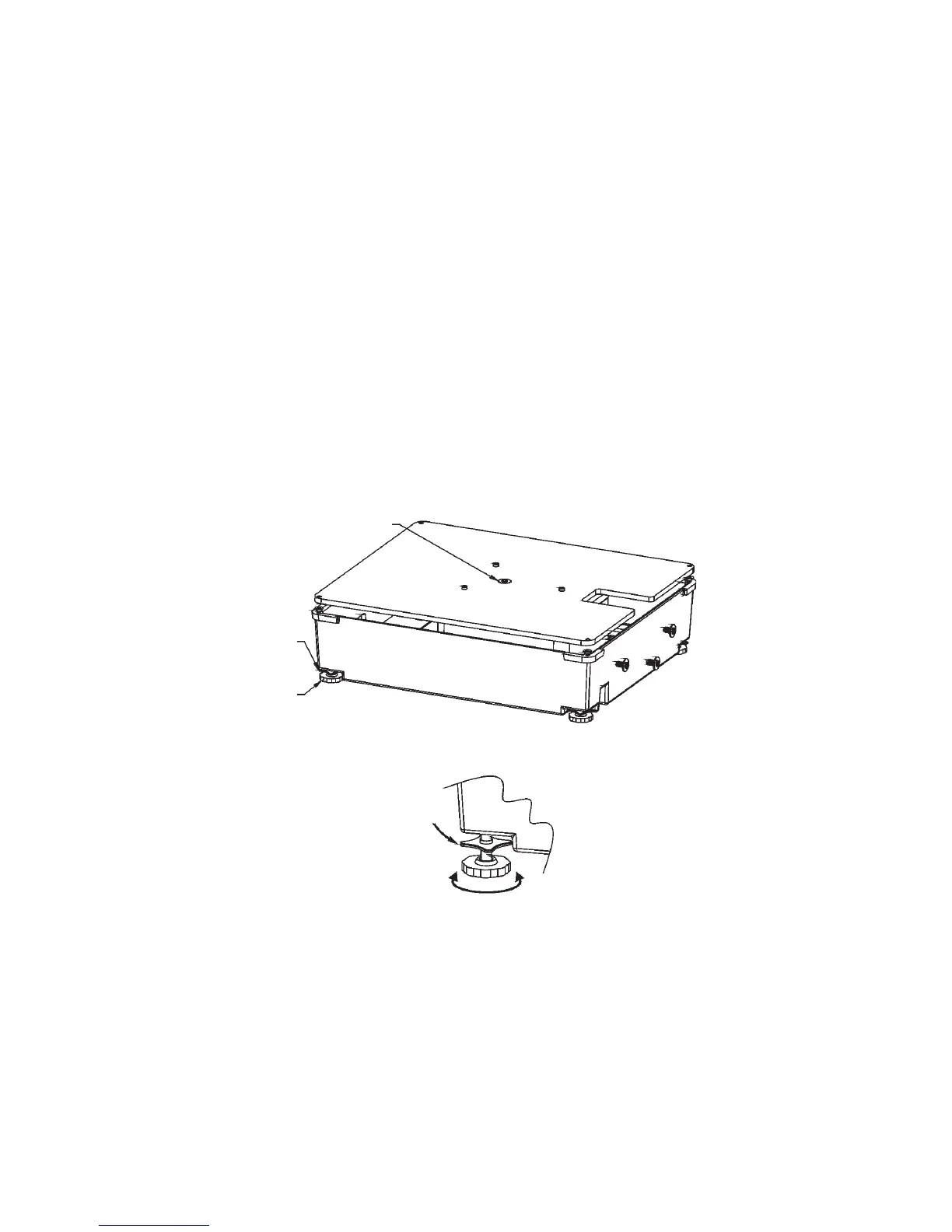

2. Leveling your scale.
Yo ur scale has four adjustable feet with locking mechanisms. The bubble level is located in the center underneath the
weighing pan. Once your scale is level, the feet should be locked into place by turning the star lock nut counter-
clockwise until it is pressing firmly against the base casting.
BUBBLE LEVEL
STAR LOCK NUT
ADJUSTABLE FOOT
TURN CLOCKWISE TO
LOCK FOOT IN PLACE
TURN TO ADJUST
HEIGHT
LEVELING THE SCALE
