Device structure
Size 0
Operating Instructions – MOVIDRIVE
®
MDX60B/61B
18

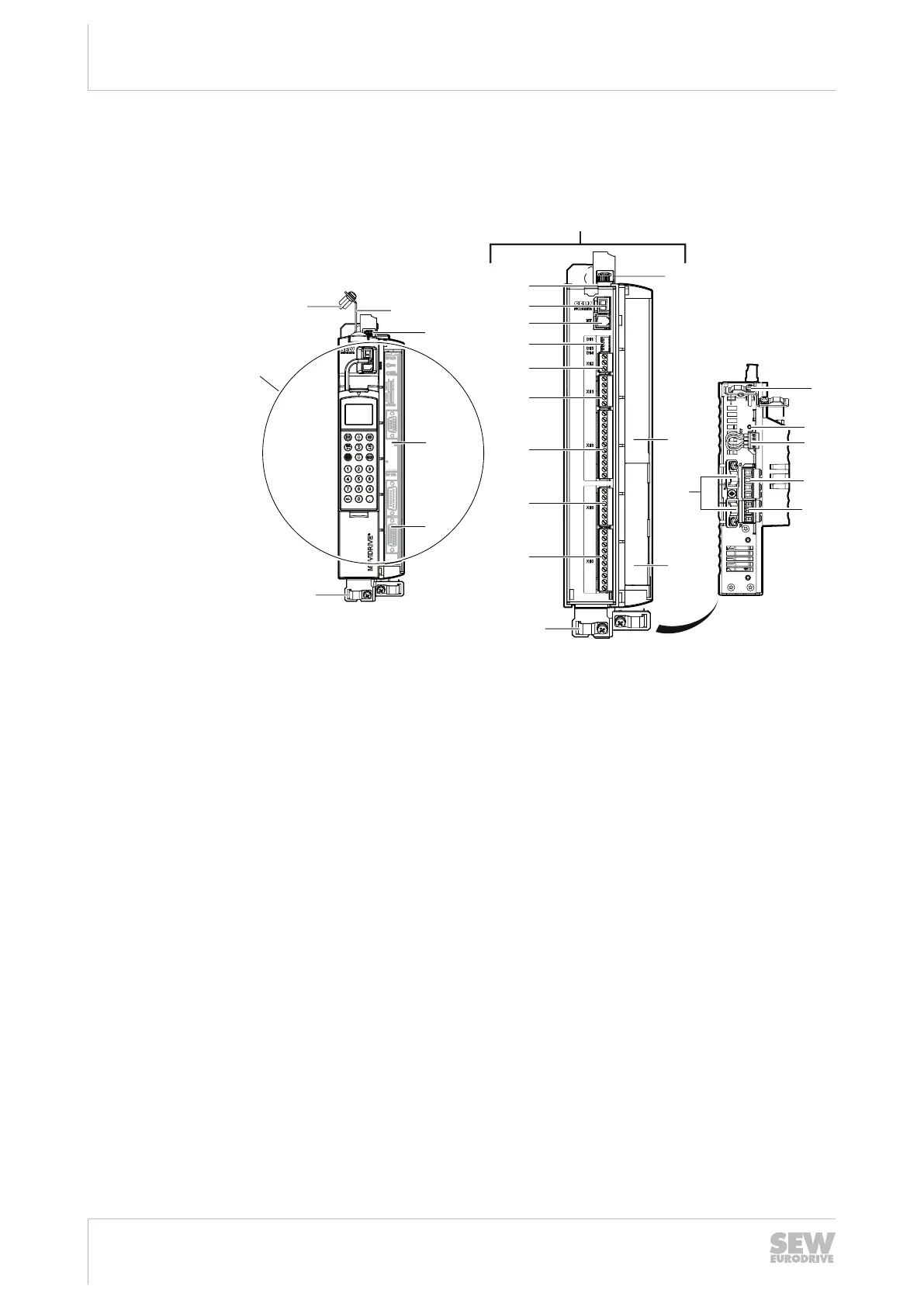

3.3 Size 0
MDX60/61B-5A3 (AC 400/500V devices): 0005/0008/0011/0014
[18]
[19]
[17]
[1]
[2]
[20]
*
[16]
[6]
A
[7]
[9]
[10]
[11]
[12]
[13]
[14]
[8]
[15]
A
[6]
[4]
[5]
[6]
[4]
[5]
[3]
[3]
2205806347
*View of the bottom of the device
[1] Power shield clamp for supply system connection and DC link connection
[2] X4: Connection for DC link coupling -U
Z
+U
Z
and PE connection, separable
[3] X1: Power supply connection L1, L2, L3 and PE connection, separable
[4] Only with MDX61B: Fieldbus slot
[5] Only with MDX61B: Encoder slot
[6] Shield clamp for signal cables MDX61B size 0
[7] X10: Signal terminal strip for digital outputs and TF/TH input
[8] X16: Signal terminal strip digital inputs and outputs
[9] X13: Signal terminal strip terminal strip for digital inputs and RS485 interface
[10] X11: Signal terminal strip for setpoint input AI1 and 10 V reference voltage
[11] X12: Signal terminal strip system bus (SBus)
[12] DIP switches S11–S14
[13] XT: Slot for DBG60B keypad or USB11A/UWS21B serial interface
[14] 7-segment display
[15] Memory card
[16] Grounding screw M4×14
[17] X17: Signal terminal block for safety contacts of drive safety function STO
[18] X2: Motor connection U, V, W and PE connection, separable
[19] X3: Braking resistor connection +R / –R and PE connection, separable
[20] Power shield clamp for motor connection and braking resistor connection
