Device structure
Size 2
Operating Instructions – MOVIDRIVE
®
MDX60B/61B
23
3.6 Size 2
MDX61B-5A3 (AC 400/500 V devices): 0110
MDX61B-2A3 (AC 230 V devices): 0055/0075
4
1 2 3
5 6
7 8 9
+/-
0
.
A
[2]
[3]
[4]
[5]
[3]
[4]
[5]
[6]
[7]
[1]
[6][7]
X16
X10
X13
X11
X12
XT
S11
S12
S13
S14
A
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[2][1]
2205794827

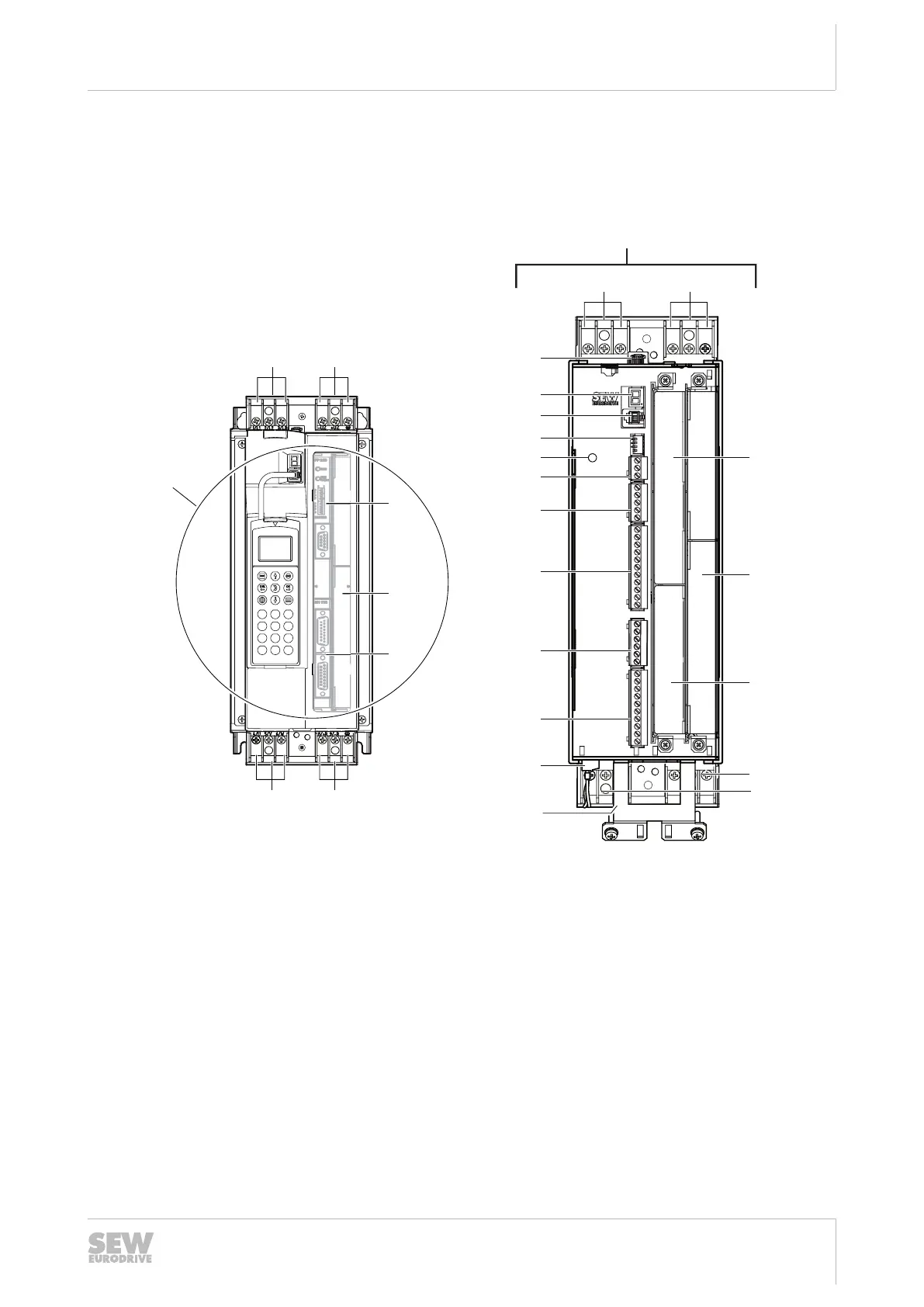

[1] X1: Line connection 1/L1, 2/L2, 3/L3
[2] X4: Connection for DC link coupling –U
Z
+U
Z
and PE connection
[3] Fieldbus slot
[4] Expansion slot
[5] Encoder slot
[6] X3: Braking resistor connection 8/+R, 9/–R and PE connection
[7] X2: Motor connection 4/U, 5/V, 6/W
[8] Shield clamp for signal cables and PE connection
[9] X17: Signal terminal block for safety contacts of drive safety function STO
[10] X10: Signal terminal strip for digital outputs and TF/TH input
[11] X16: Signal terminal strip digital inputs and outputs
