8.10 DBM60B/DKG60B housing for DBG60B
8.10.1 Description
The DBM60B option can be used to mount the keypad close to the inverter (e.g. in the
control cabinet door). The DBM60B option consists of a housing in IP65 degree of pro-
tection, and a 5m DKG60B extension cable.
Part numbers
• DBM60B: 08248532
• DKG60B: 08175837

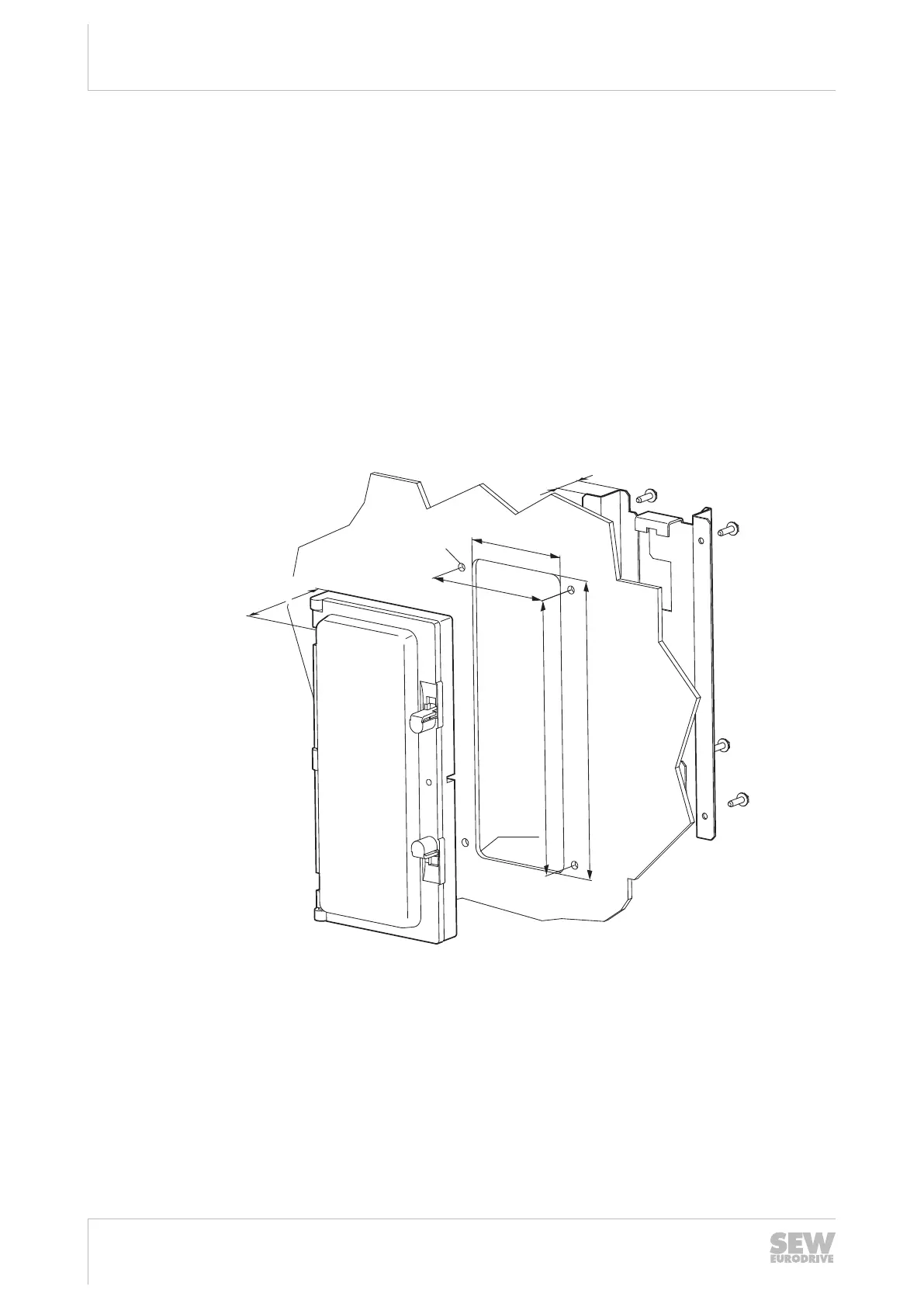

8.10.2 Dimension drawing DBM60B/DKG60B
The following figure shows the mechanical dimensions in mm (in).
16 (0.63)
Ø4 (0.2)
R5
151 (5.94)
139 (5.47)
54 (2.15)
67 (2.6)
26 (1.0)
1454360843
All dimensions in mm (in)
