4 Installation
MOVIDRIVE
®
B application inverters are exclusively suitable for control cabinet install-
ation according to the degree of protection.
4.1 Installation instructions for the basic unit
4.1.1 General installation notes for size 0–6

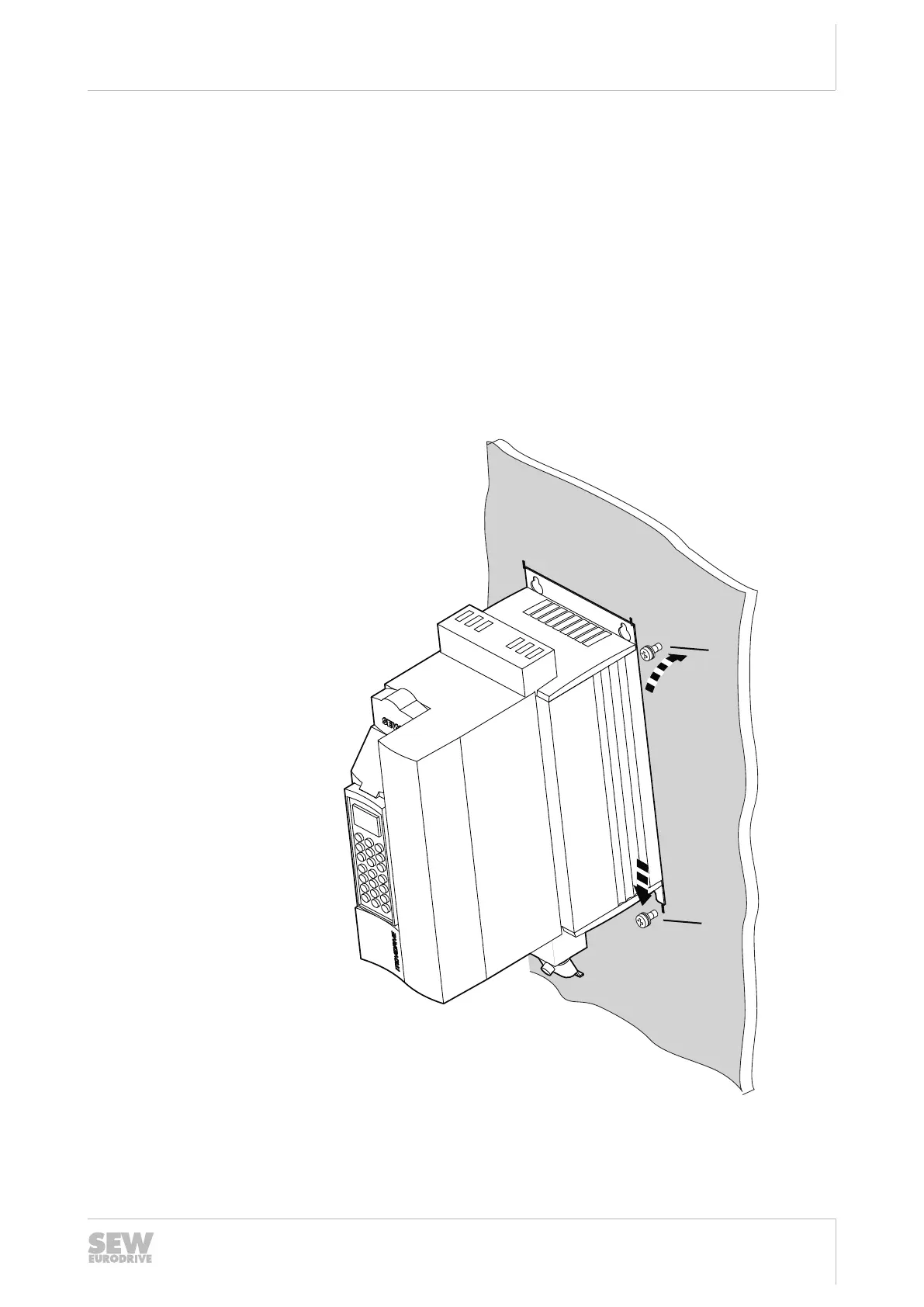

The retaining screws [1] and [2] are screwed into the prepared mounting grid in the
control cabinet but not tightened.
1. Place the module with the slotted holes on the device base plate onto the retaining
screws [1] from the top.
1.
2.
[1]
[2]
20524209675
2. Push the module backwards to insert the retaining screws [2] into the upper holes
in the device base plate.
3. Lower the module.
23534850/EN – 11/2017
