10
Technical data of options
Fieldbus interface PROFIBUS DP-V1 with PROFIsafe DFS11B
Operating Instructions – MOVIDRIVE
®
MDX60B/61B
309
10.21 Fieldbus interface PROFIBUS DP-V1 with PROFIsafe DFS11B
10.21.1 Part number
18238408
10.21.2 Description
MOVIDRIVE
®
B can be equipped with the 12 Mbaud fieldbus interface DFS11B for the
serial bus system PROFIBUS DP-V1 with PROFIsafe. In addition to cyclical and acyc-
lical data exchange, safety-related communication takes place that allows to switch a
safe F-DO output. The device master data (GSD) and type files for MOVIDRIVE
®
B
are available from the SEW website (http://www.sew-eurodrive.de) to help with project
planning and facilitate startup.
For more detailed information, refer to the "DFS11B Fieldbus Interface PROFIBUS
DP-V1 with PROFIsafe" manual. You can order this manual from SEW‑EURODRIVE.

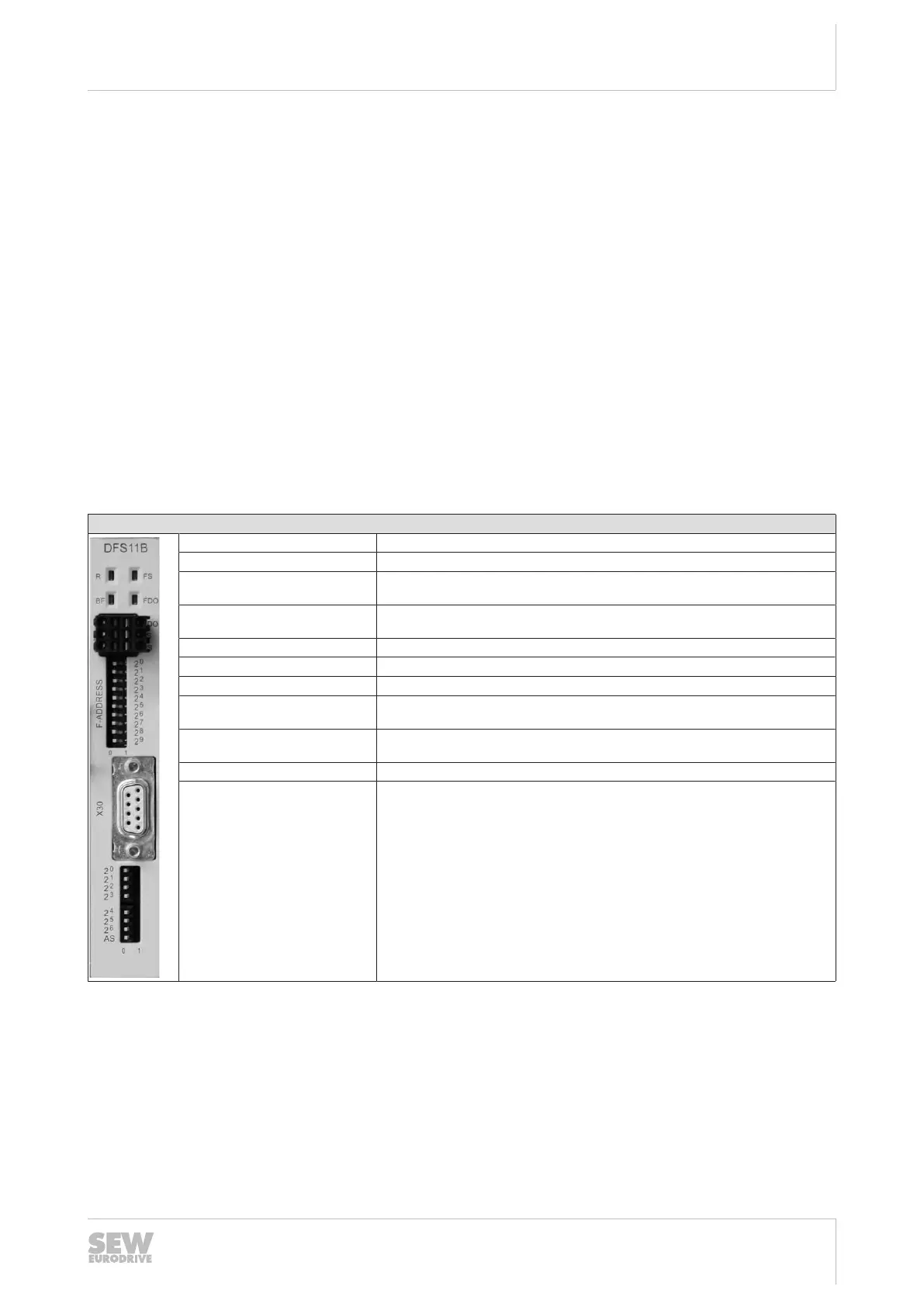

10.21.3 Electronics data
DFS11B option
PROFIBUS protocol variants PROFIBUS-DP and DP-V1 to IEC61158
Automatic baud rate detection 9.6 kBaud–12 MBaud
Connection technology • 9-pin D-sub socket
• Pin assignment acc. to IEC61158
Bus termination Not integrated, implement using suitable PROFIBUS connector with terminating
resistors that can be activated.
Station address 1 – 125, can be set via DIP switches
GSD file name SEW_600C.GSD
DP ID number 600C=24588
hex
Diagnostics data • Max. 8 bytes
• Standard diagnostics: 6 bytes
Tools for startup • MOVITOOLS
®
MotionStudio engineering software
• DBG60B keypad
F address 1–1022 DIP switch for setting the failsafe address
Ambient temperature 0–55°C
23534850/EN – 11/2017
