Fault messages and list of faults
Operating Instructions – MOVIDRIVE
®
MDX60B/61B
191
7.3 Fault messages and list of faults
7.3.1 Fault message via 7-segment display

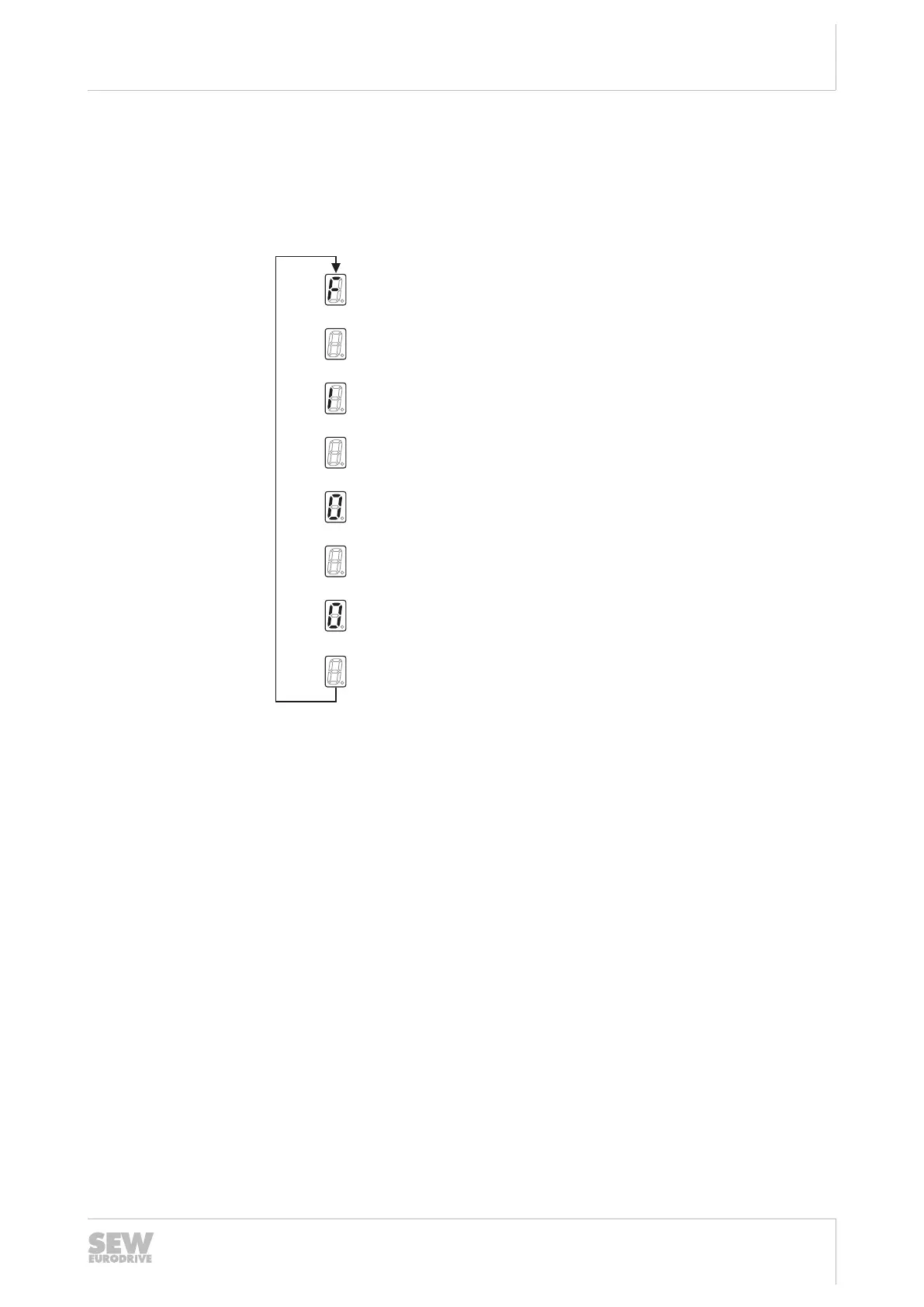

The fault code is shown in a 7-segment display. The following display sequence is
used (e.g. fault code 100):
1939352587
Flashing, about 1 s
Display off, about 0.2 s
Hundreds (if available), ca. 1 s
Display off, about 0.2 s
Tens, ca. 1 s
Display off, about 0.2 s
Ones, ca. 1 s
Display off, about 0.2 s
Following a reset or if the fault code resumes the value "0", the display switches to the
operating display.
7.3.2 Subfault code display
The subfault code is displayed in MOVITOOLS
®
MotionStudio or in the DBG60B
keypad.
