Technical data of options
INTERBUS FOC fieldbus interface DFI21B
Operating Instructions – MOVIDRIVE
®
MDX60B/61B
298
10.14 INTERBUS FOC fieldbus interface DFI21B

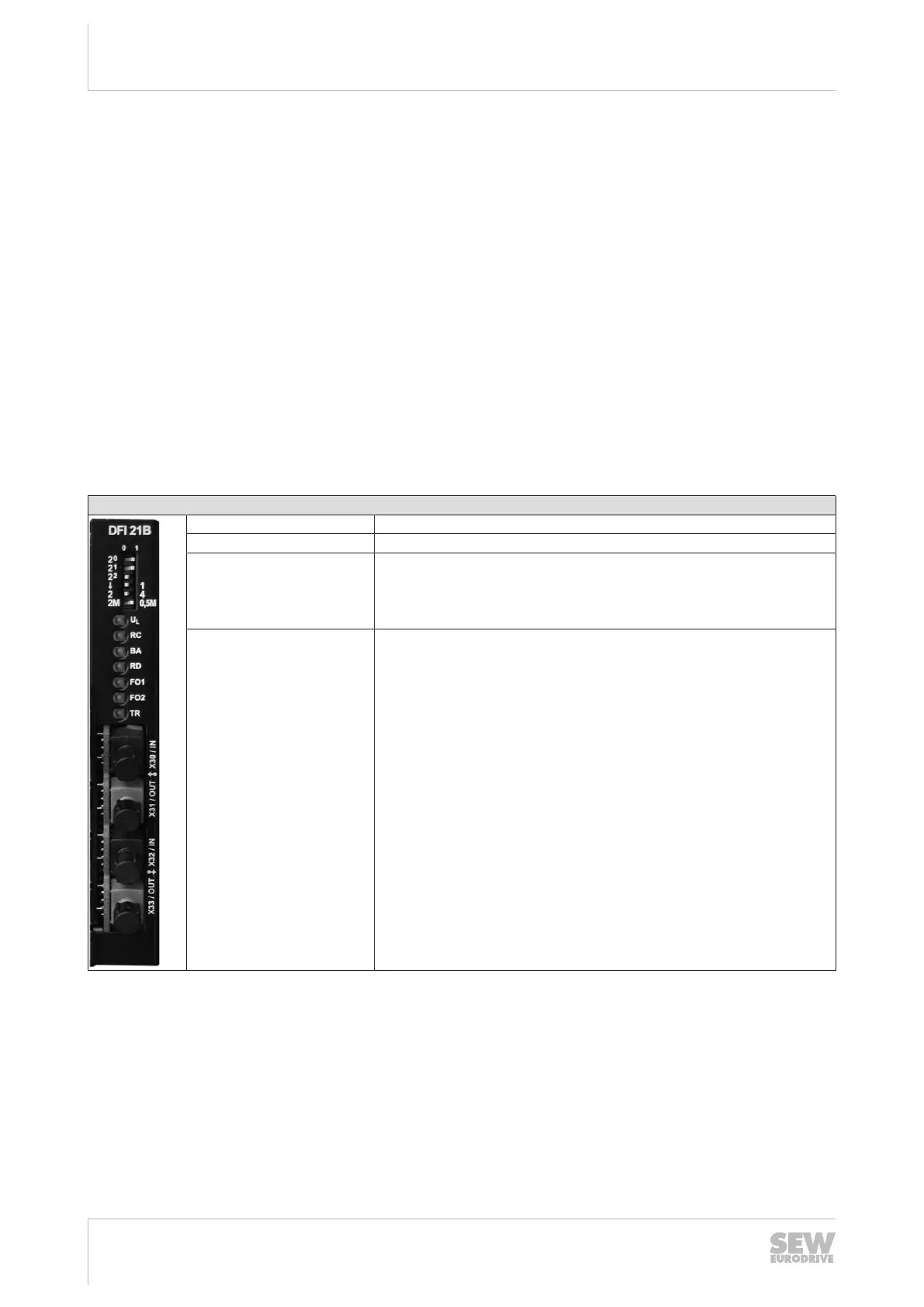

10.14.1 Part number
08243115
10.14.2 Description
MOVIDRIVE
®
B can be equipped with a fieldbus interface for the non-proprietary and
standardized sensor/actuator bus system INTERBUS/INTERBUS with optical fibers
(INTERBUS FOC).
INTERBUS is defined in EN50254/DIN19258 and, as far as its function is concerned,
it consists of a process data channel and a parameter data channel. Intelligent actuat-
ors such as the MOVIDRIVE
®
B drive inverters can be controlled and configured in a
user-friendly way.
10.14.3 Electronics data
DFI21B option
Supported baud rates 500kBaud and 2MBaud, can be selected via DIP switch
Connection technology F-SMA connector
DP identity numbers E3
hex
=227
dec
(1 PCP word)
E0
hex
=224
dec
(2 PCP words)
E1
hex
=225
dec
(4 PCP words)
38
hex
=56
dec
(microprocessor not ready)
03
hex
=3
dec
(no PCP word)
Max. number of process data 6 process data entries
23534850/EN – 11/2017
