Sewhacnm SI 4100 - Weighing Mode 4: Packer Mode 2; Packer Mode 2 Configuration

Digital Weighing Indicator
SI 4100
- 28 -
◆ Weighing Mode 4. Packer Mode (F21-04 setting) - Checker mode 2.
1. Set value setting
Sp1(Acceptable Range), Sp2 (Acceptable Range), Sp3(Acceptable Range), Sp4(Acceptable Range)

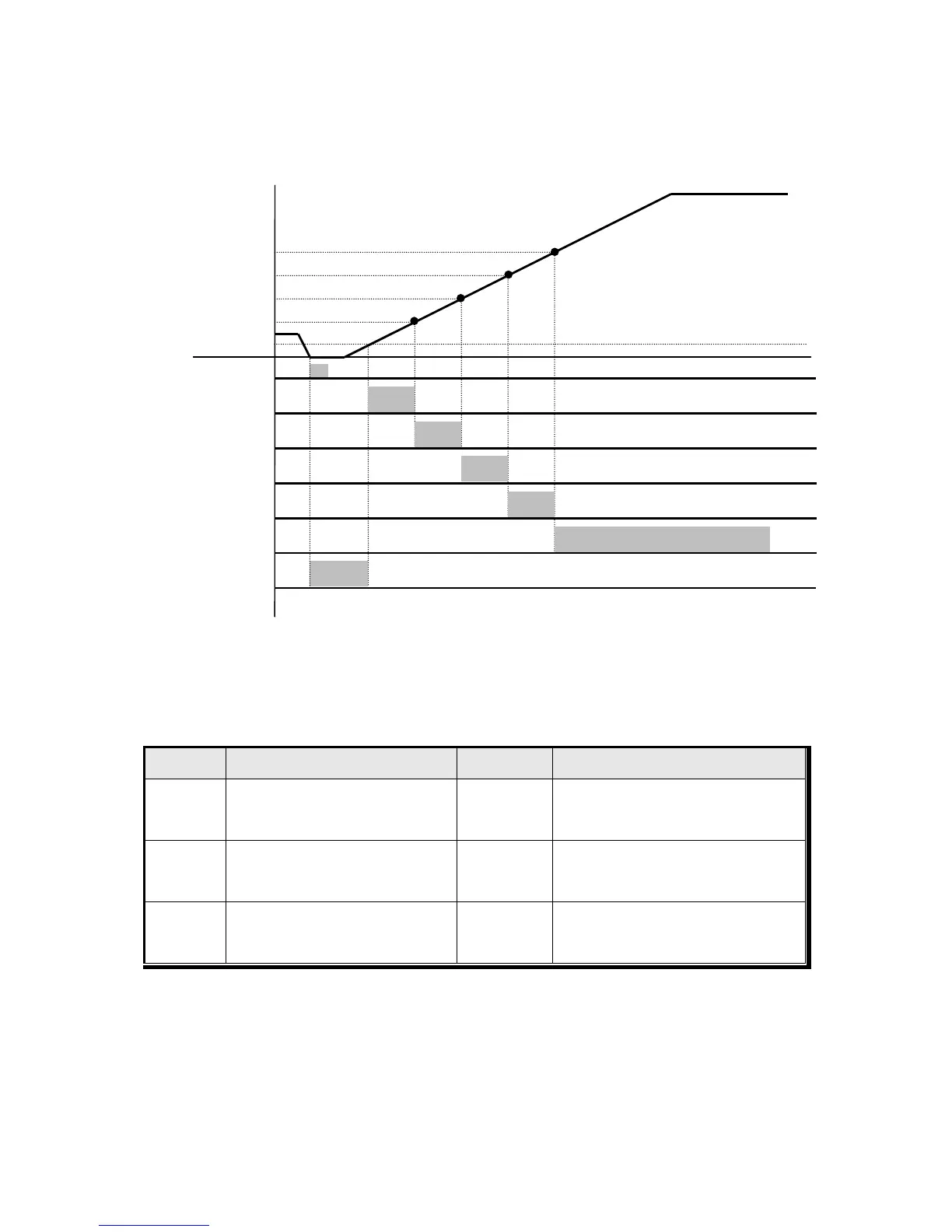

2. Each relay will be “ON” within its own acceptable range after “t3”time, during “t4” time.
3. Relay Output
Relay
Contents
Relay
Contents
SP 1
Near Zero< Current weight ≤SP1
(ON)
SP4
SP3< Current weight ≤SP4
(ON)
SP 2
SP1< Current weight ≤SP2
(ON)
OVER
SP4< Current weight
(ON)
SP3
SP2< Current weight ≤SP3
(ON)
NEAR
ZERO
Within “EMPTY” range (ON)
Weight
Near Zero
TARE(IN)
Near Zero
Near Zero≤
Steady weight<SP1
SP1≤Steady weight<SP2
SP2≤Steady weight<SP3
SP3≤Steady weight<SP4
SP4≤Steady weight
Sp1
Sp2
Sp3
Sp4
