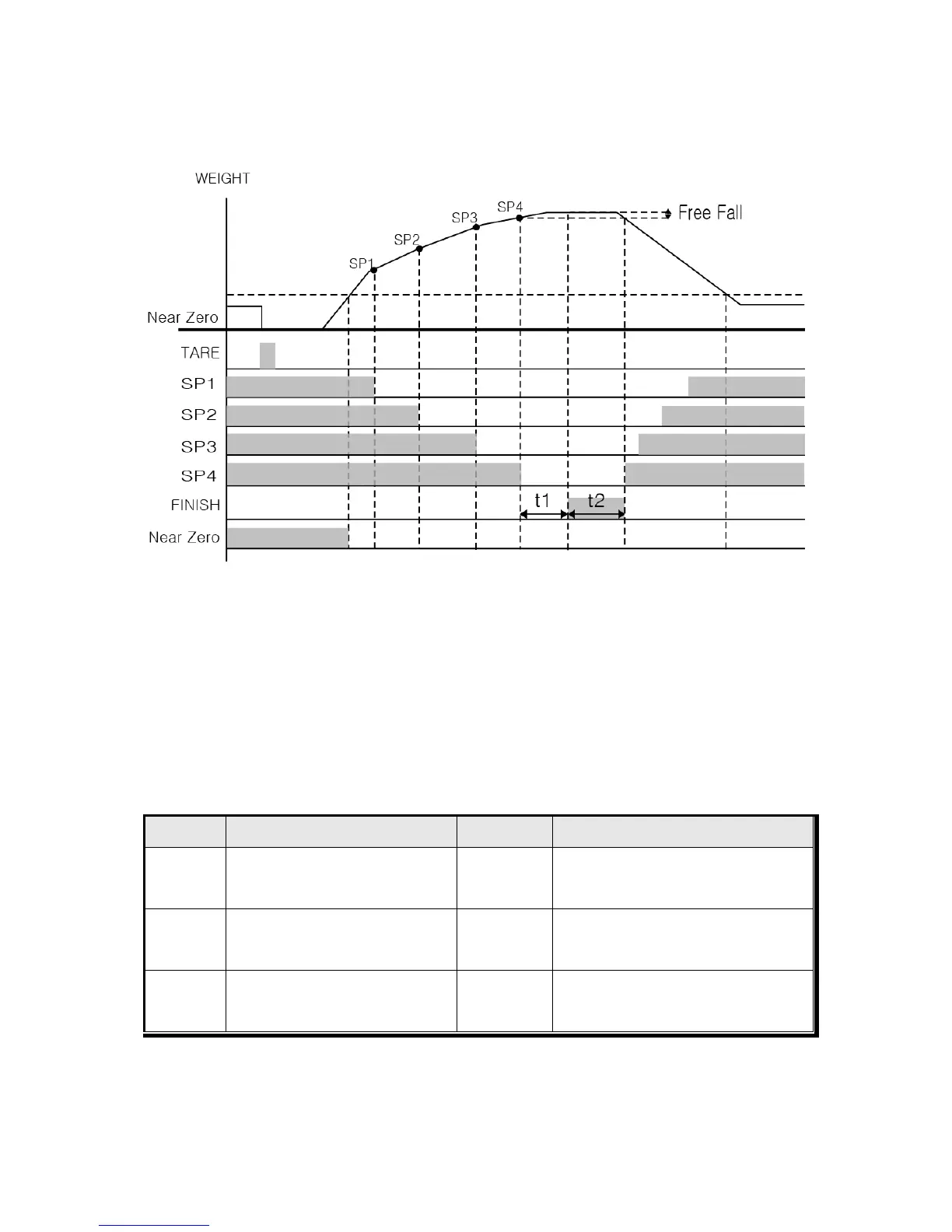

◆ Weighing Mode 5. Limit Mode 2. (F21-05 setting) - Relay “OFF” when weight reaches to set value
1. Set value setting
Sp1(Bulk), Sp2(Bulk + Drib), Sp3(Bulk + Drib + Fall), Sp4(FINAL)
Setting conditions : (Sp4>Sp3>Sp2>Sp1)
※ If the setting conditions are not satisfied, “E” symbol displayed and you can process the weighing.
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
※ Finish Relay will be “OFF”, after “t2” time set or weight is under “Empty Range”.
4. Output Relay
Relay
Contents
Relay
Contents
SP 1
Current weight < SP1(OFF)
Current weight ≥ SP1(ON)
SP4
Current weight < SP4(OFF)
Current weight ≥ SP4(ON)
SP 2
Current weight < SP2(OFF)
Current weight ≥SP2(ON)
FINISH
After “t1” time,
“On” during “t2” time
SP3
Current weight < SP3(OFF)
Current weight ≥ SP3(ON)
Near Zero
Within “EMPTY” range (ON)
