Digital Weighing Indicator
SI 4100
- 30 -

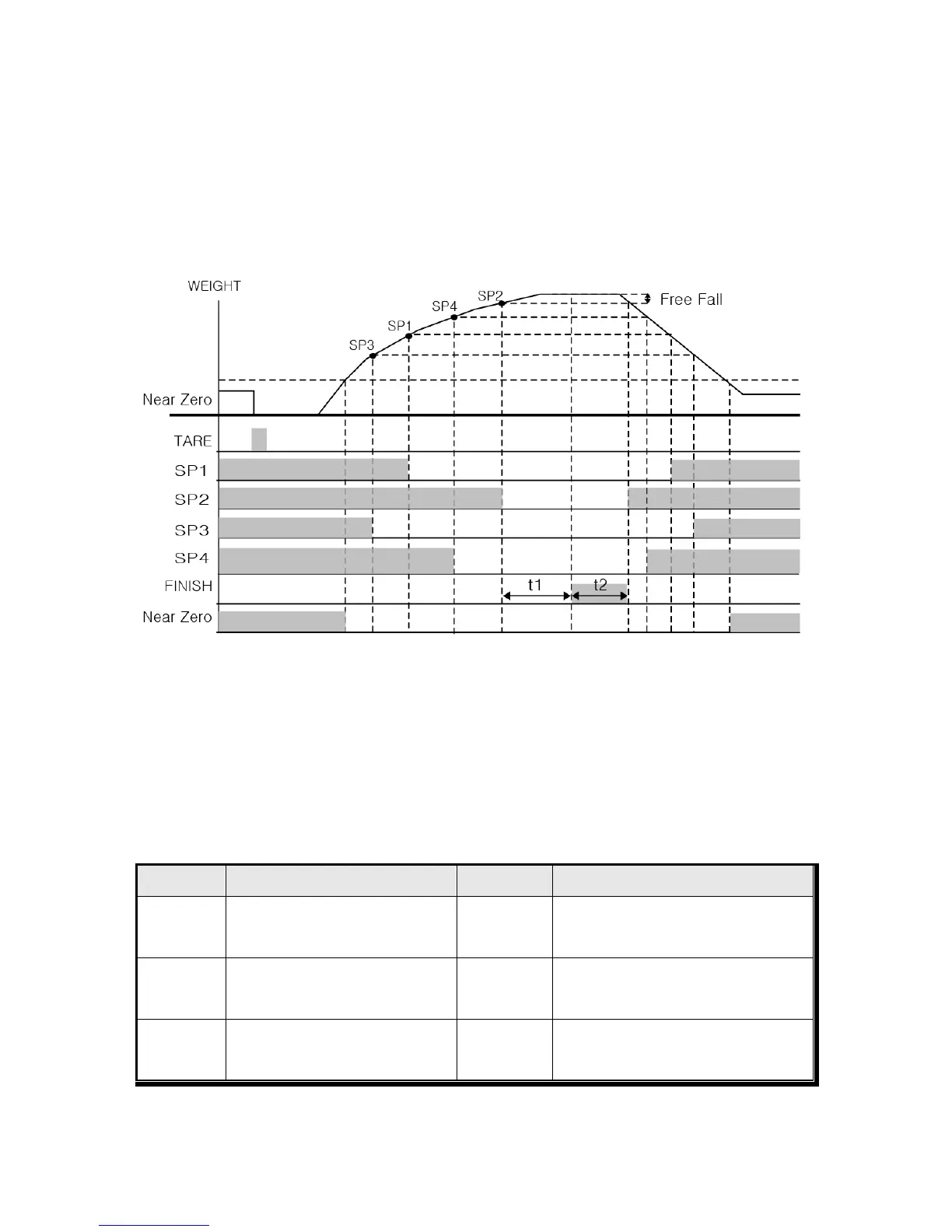

◆ Weighing Mode 6. User’s Choice Mode 1. (F21-06 setting)
- User Can arrange each relay output (SP1~4) sequence, by setting each SP value. (“B” Dry Contact)
- Example.
User’s Relay output Sequence : SP3SP1SP4SP2FinishNear Zero
SP settings : SP3(100kg), SP1(200kg), SP4(300kg), SP2(400kg)
1. Set value setting
SP1, SP2, SP3, SP4 must be bigger than “Empty(Near Zero) Range.
※ If the setting conditions are not satisfied, “E” symbol displayed and you can process the weighing.
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
※ Finish Relay will be “OFF”, after “t2” time set or weight is under “Empty Range”.
4. Output Relay
Relay
Contents
Relay
Contents
SP 1
Current weight < SP1(OFF)
Current weight ≥ SP1(ON)
SP4
Current weight < SP4(OFF)
Current weight ≥ SP4(ON)
SP 2
Current weight < SP2(OFF)
Current weight ≥ SP2(ON)
FINISH
After “t1” time,
“On” during “t2” time
SP3
Current weight < SP3(OFF)
Current weight ≥ SP3(ON)
Near Zero
Within “EMPTY” range (ON)
