Digital Weighing Indicator
SI 4100
- 32 -

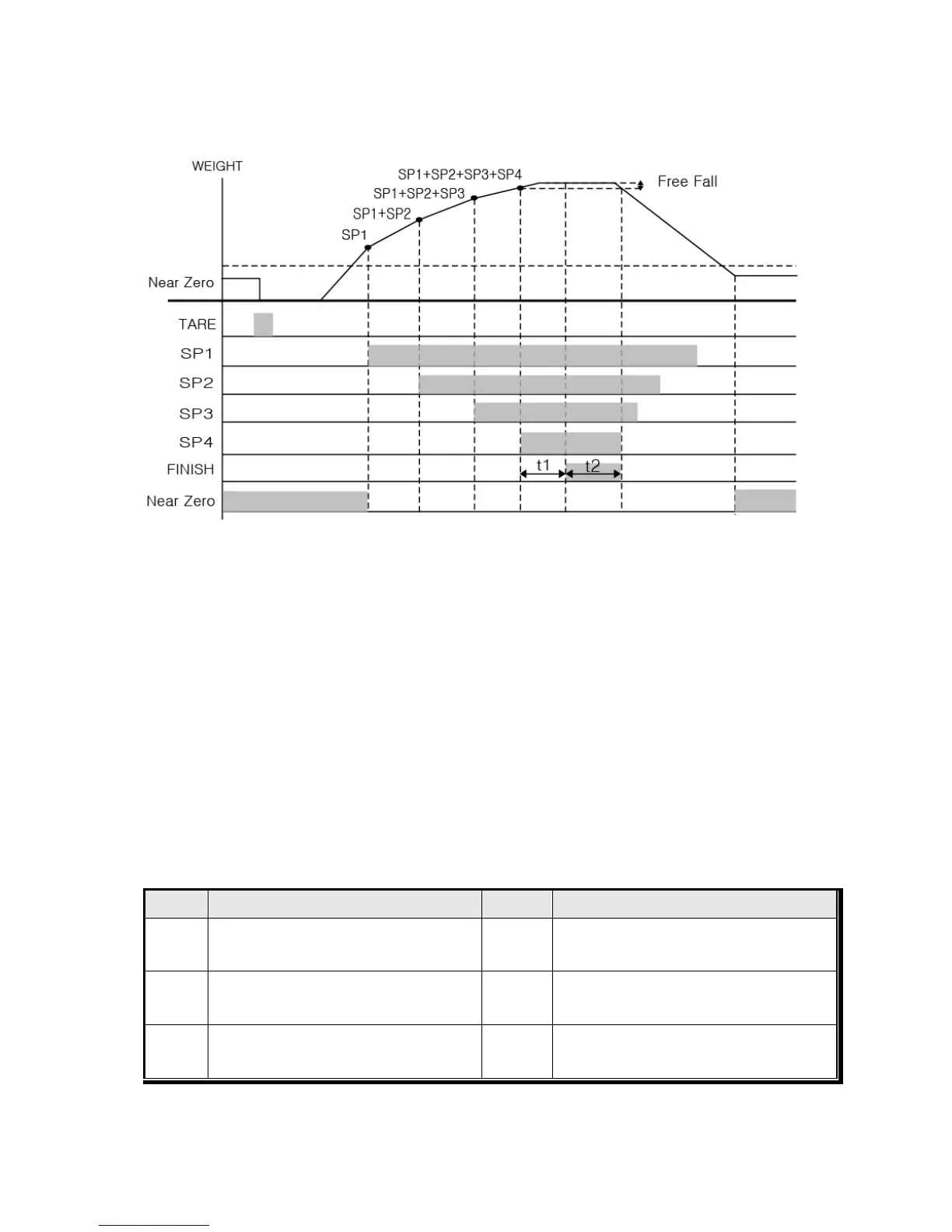

◆ Weighing Mode 8 Accumulating Mode 1 (F21-08 Setting)
1. Set Value Setting
SP1, SP2, SP3, SP4 > “Empty(Near Zero) Range.
※ SP1, SP2, SP3, SP4 = 0, The relay is not used.
Sp1(No.1 Material Set value), Sp2(No.2 Material Set value), Sp3(No.3 Material Set value), Sp4(No.4
Material Set value) There is any condition to set the each set value.
※ Control Relay output type
- SP1 Relay “ON” = Current Weight = SP1 Set value
- SP2 Relay “ON” = Current Weight = SP1 + SP2 Set value
- SP3 Relay “ON” = Current Weight = SP1 + SP2 + SP3 Set value
- SP4 Relay “ON” = Current Weight = SP1 + SP2 + SP3 + SP4 Set value
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
※ Finish Relay will be “OFF”, after “t2” time set or weight is under “Empty Range”.
4. Output Relay
Relay
Contents
Relay
Contents
SP 1
Current weight ≥ SP1(ON)
Current weight < SP1(OFF)
SP4
Current weight ≥ SP1+SP2+SP3+SP4(ON)
Current weight < SP1+SP2+SP3+SP4(OFF)
SP 2
Current weight ≥ SP1+SP2(ON)
Current weight < SP1+SP2(OFF)
FINISH
After “t1” time, “On” during “t2” time
SP3
Current weight ≥ SP1+SP2+SP3(ON)
Current weight < SP1+SP2+SP3(OFF)
Near
Zero
Within “EMPTY” range (ON)
