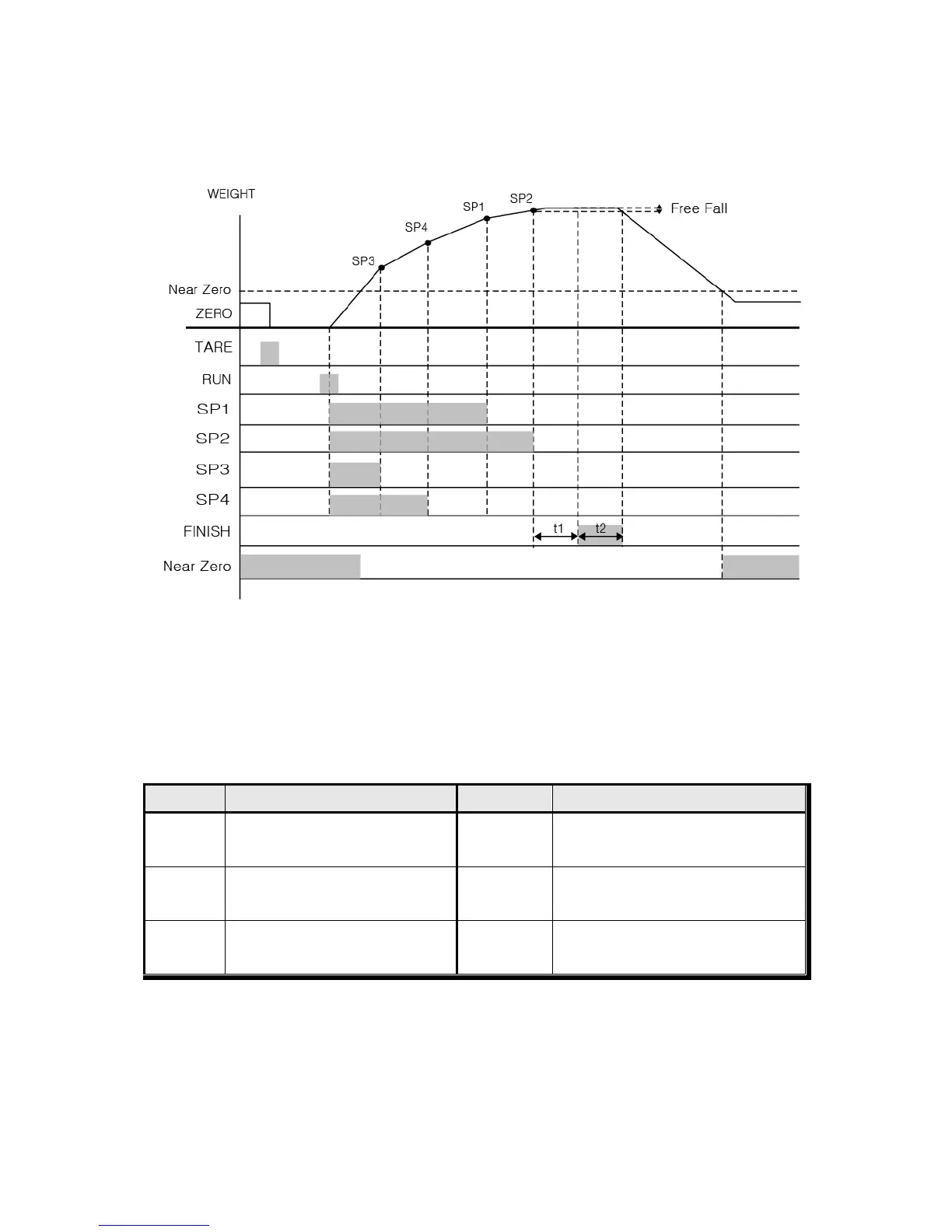

◆ Weighing Mode 9. Packer mode User’s Choice 2 (F21-09 Setting)
1. SP1, SP2, SP3, SP4 can be any value.
※ SP1, SP2, SP3, SP4 = 0, The relay is not used.
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
※ Finish Relay will be “OFF”, after “t2” time set or weight is under “Empty Range”.
4. Relay Output
Relay
Contents
Relay
Contents
SP 1
RUN input : ON
Current weight = SP1(OFF)
SP 4
RUN input : ON
Current weight = SP4(OFF)
SP 2
RUN input : ON
Current weight = SP2(OFF)
FINISH
After time “t1”, “On”
during time “t2”
SP 3
RUN input : ON
Current weight = SP3(OFF)
Near Zero
Within “EMPTY” range (ON)
5. “Drib” (F26-01 setting)
