Digital Weighing Indicator
SI 4100
- 34 -

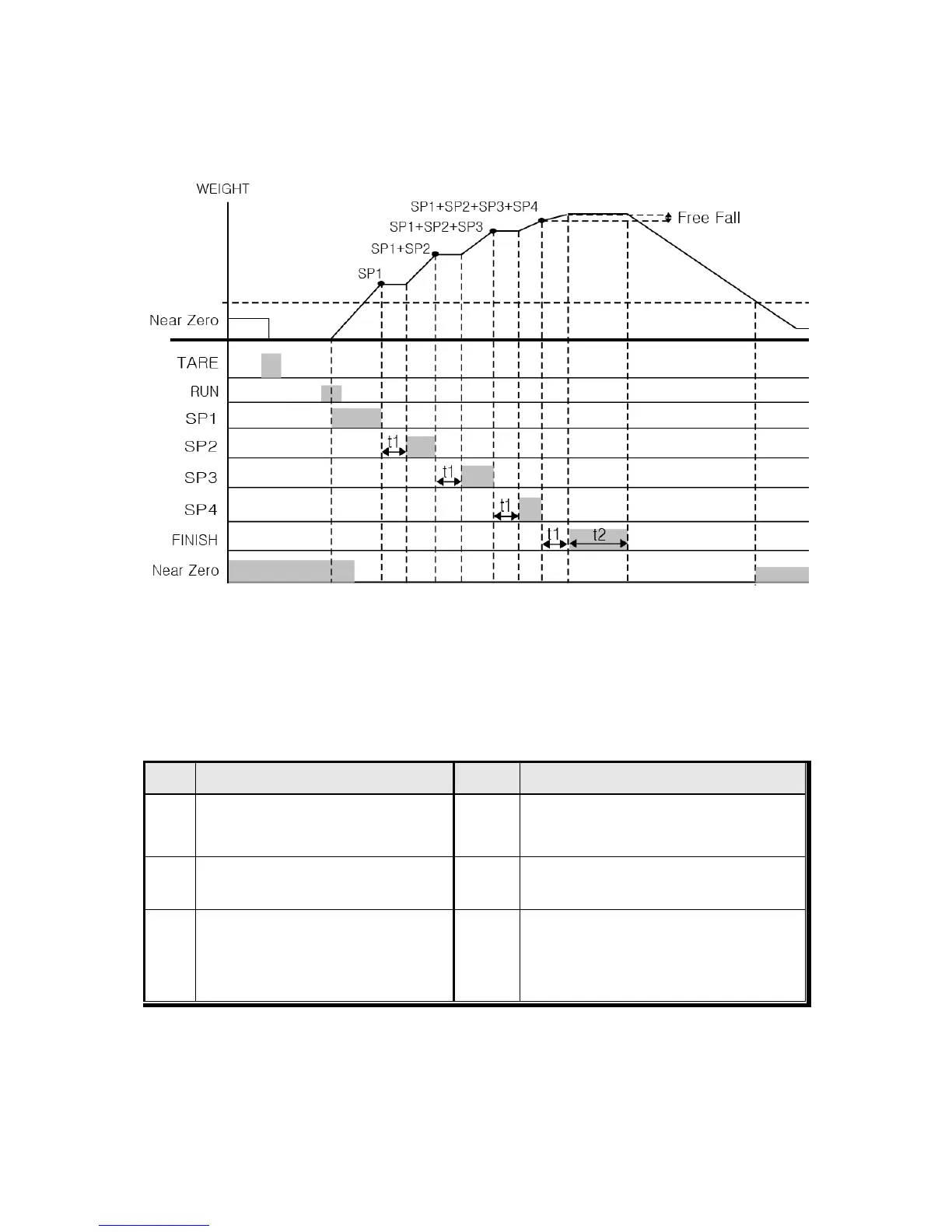

◆ Weighing Mode 10 Accumulating Mode 2 (F21-10 Setting)
1. SP1, SP2, SP3, SP4 can be any value.
※ SP1, SP2, SP3, SP4 = 0, The relay is not used.
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
※ Finish Relay will be “OFF”, after “t2” time set or weight is under “Empty Range”.
4. Relay Output
Relay
Contents
Relay
Contents
SP 1
Current weight < SP1(ON)
SP 4
SP1+SP2+SP3 < Current weight <
SP1+SP2+SP3+ SP4(ON)
SP 2
SP1< Current weight <SP1+SP2(ON)
FINISH
After time “t1”, “On”
during time “t2”
SP 3
SP1+SP2 < current weight < SP1+SP2+SP3
(ON)
Near
Zero
Within “EMPTY” range (ON)
