7

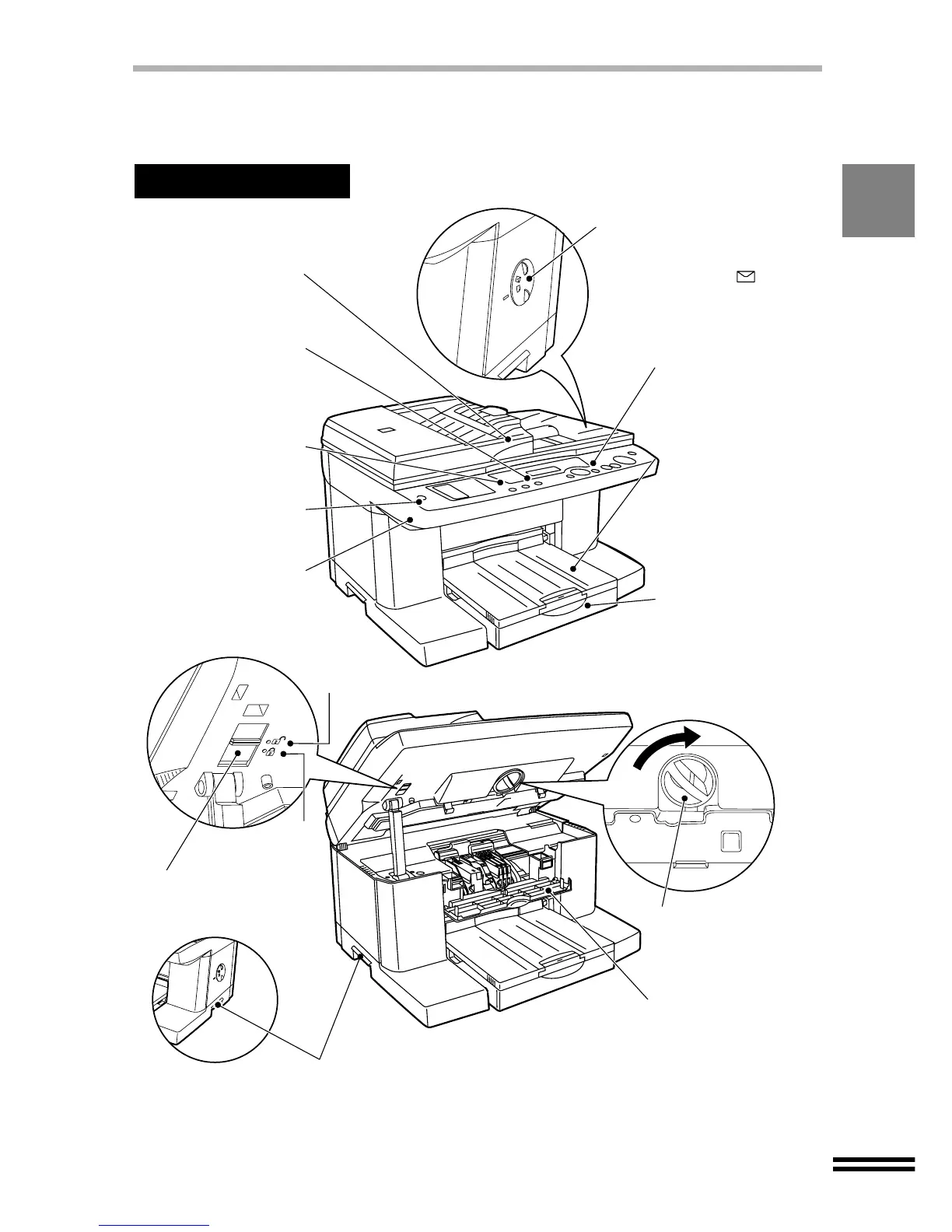

PART NAMES AND FUNCTIONS
The following illustrations show the names and locations of the main machine parts.
Operation panel
Use this panel to specify
your preferences for
copying and for setting
up the unit.
Output tray
The document is
deposited onto the tray
after copying or printing.
Pull out the output tray
extension when using
paper longer than the
output tray.
Paper tray
Holds up to 150 sheets of
paper. Adjustable to suit
a variety of paper sizes.
Load the paper so that
the side to be printed or
copied onto is face down.
SPF
(Single pass feeder)
Refer to the next page
for the SPF.
Display panel
Displays the status of
the unit, copier settings
and the number of
copies.
ERROR indicator
Lights up when an error
occurs.
Power button
Press to turn the power
on or off.
Front cover
Open this cover to
change the ink tanks or
print heads.
Scan head locking switch
Lock the scan head
when moving this unit.
Front Side
Paper knob
When copying or printing onto thick
paper or printing onto an envelope
adjust the knob to the setting.
(Return the knob to its original
setting after copying or printing.)
Handles
Front cover locking knob
Turn this knob to the
right to open the front
cover.
Maintenance cover
Open this cover to
change the ink tanks or
print heads.
Released
Locked
To Next Page
