AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 27

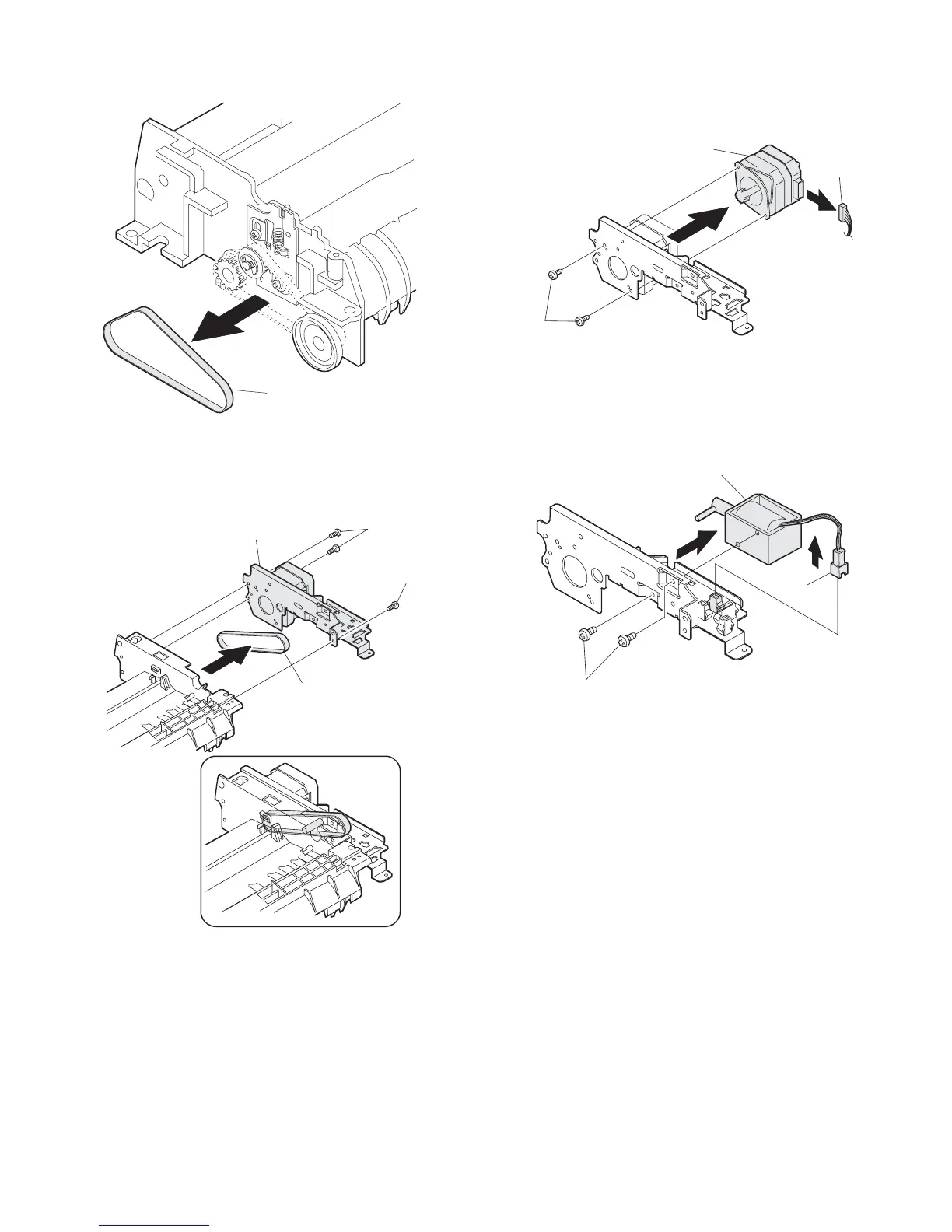

K. Belt 1
1) Remove the belt.
L. Belt 2
1) Remove three screws.
2) Remove the drive unit.
3) Remove the belt.
Note: When reassembling, hang the belt on the boss.
M. SPF motor
1) Remove the harness.
2) Remove two screws.
3) Remove the SPF motor.
N. Solenoid
1) Remove the harness.
2) Remove two screws.
3) Remove the solenoid.
1
1
2
3
1
1
2
3
1
2
3
