Sharp AL-1215 Service Manual

AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 29

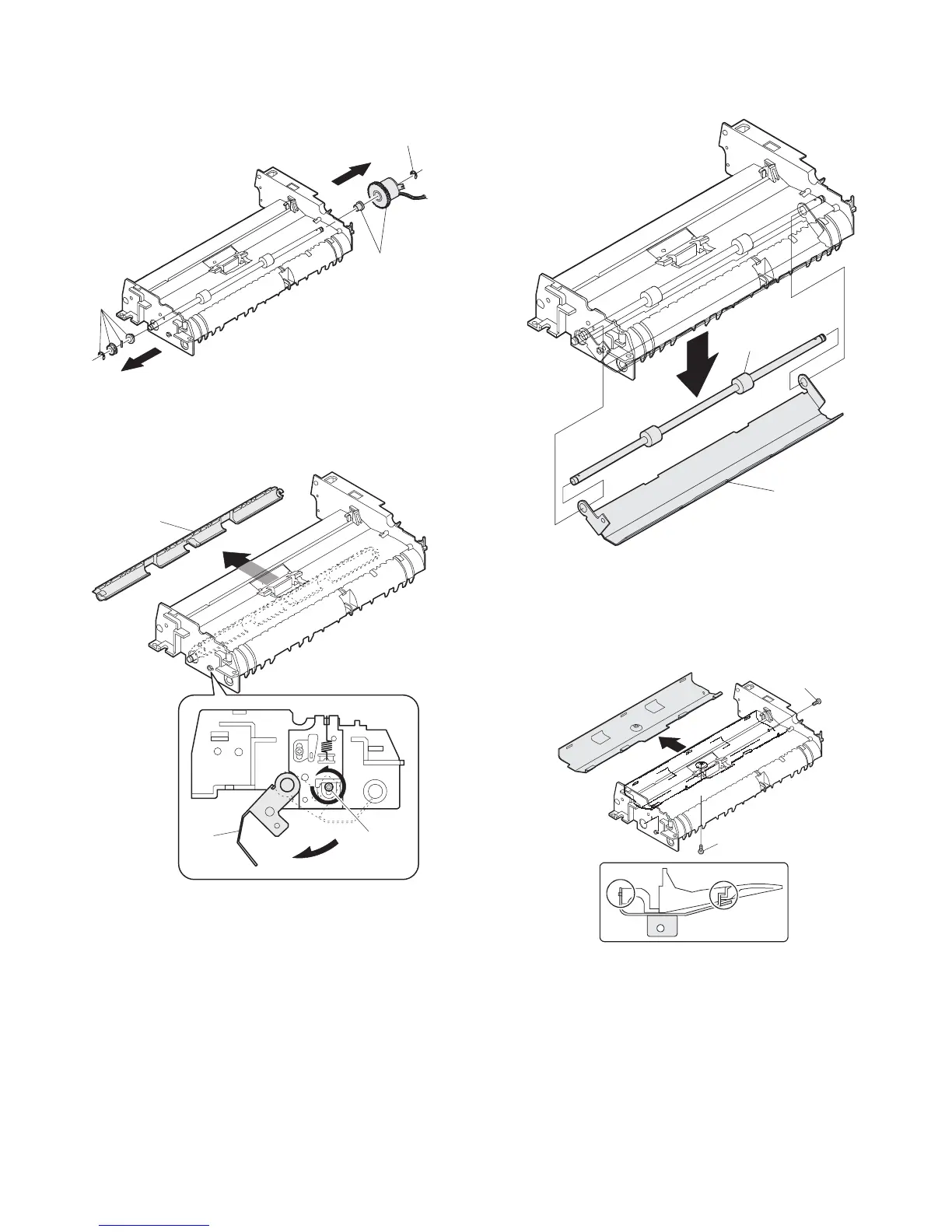

R. Transport roller 1.
(1) Remove the parts.
1) Remove the parts.
(2) Remove the parts.
1) Loosen the screw.
2) Open the paper exit paper guide.
3) Remove the parts.
(3) Remove the transport roller.
1) Remove the paper exit paper guide.
2) Remove the transport roller.
S. Paper exit roller
(1) Remove the parts.
1) Remove two screws.
2) Remove the parts.
1
1
1
1
2
3
1
2
1
1
2
