Chapter 1
INSTALLATION
CONNECTIONS

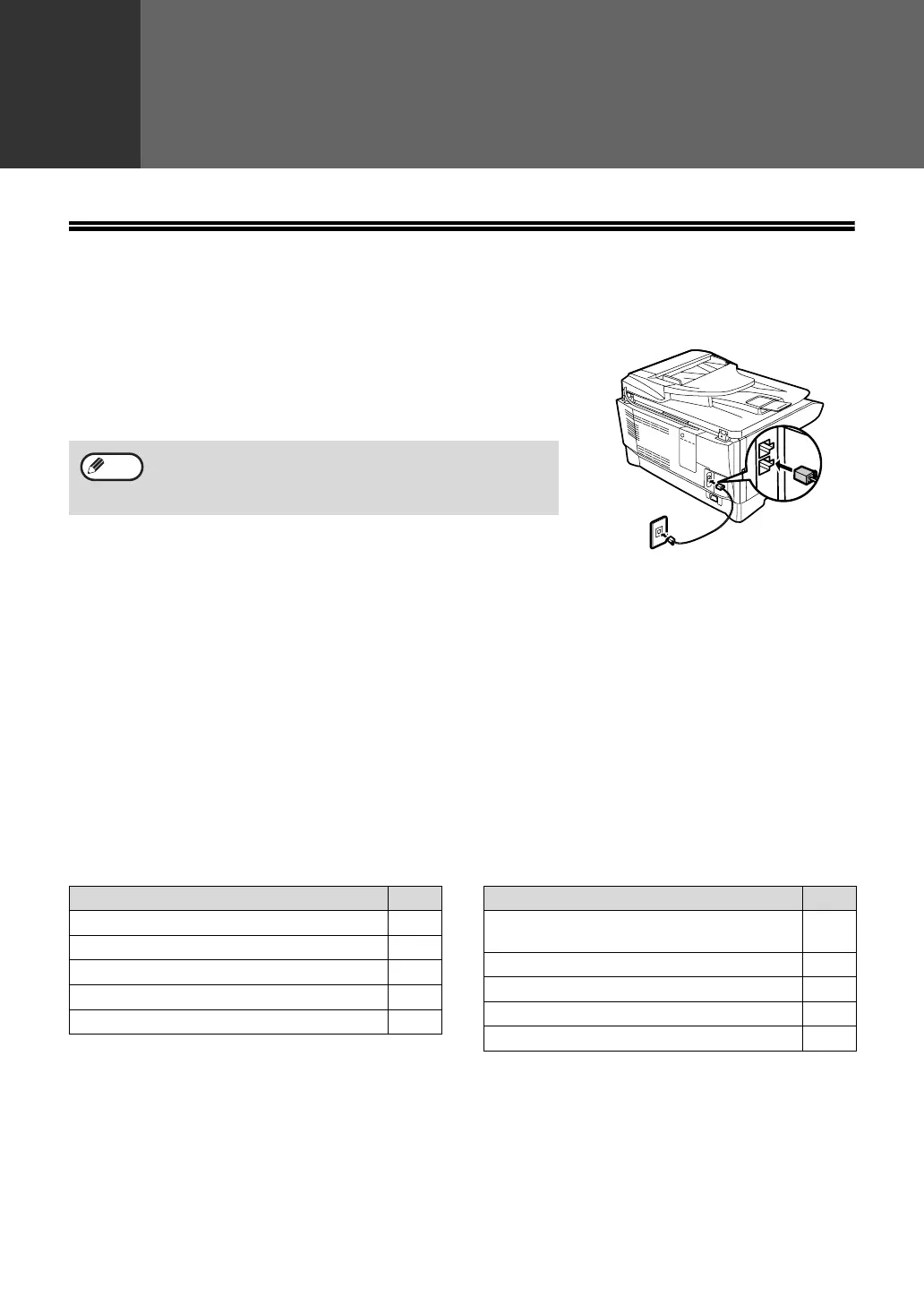

CONNECTING THE TELEPHONE LINE CORD
Plug one end of the telephone line cord into the jack on the machine marked
"LINE." Plug the other side into a standard (RJ11C) single-line telephone
wall jack. Be sure not to plug this telephone line cord into the "TEL" jack.
The "TEL" jack is used to attach an extension telephone or answering
machine to the machine. (See "CONNECTING OTHER DEVICES" (p.12))
ABOUT THE OPERATION MANUALS
The operation manuals for the machine are as follows:
Facsimile Expansion Kit Operation Manual (this manual)
This manual explains the procedures for using the machine as a fax machine.
This manual only explains the fax functions of the machine. For general information on using the machine, including
safety information, installation, paper loading, removal of paper misfeeds, and peripheral equipment, see the
operation manual for the machine.
Operation Manual (for general information)
Explains the machine and how to use it as a copier. Also explains how to install the software that allows the machine
to be used as a printer and scanner for your computer.
The following information is contained in the operation manual for the machine :
Online Manual (on the CD-ROM)
This manual explains the procedures for using the machine as a printer and a scanner.
If your area experiences a high incidence of lightning or power
surges, we recommend that you install surge protectors for the
power and telephone lines. Surge protectors can be purchased
from your retailer or at most telephone specialty stores.
LIN
E
TEL
Note
OPERATION MANUAL contents Page
CAUTIONS
3
PART NAMES 9
POWER ON AND OFF 12
LOADING THE PAPER TRAY 15
BYPASS FEED (including special paper) 17
OPERATION MANUAL contents Page
CHANGING A TRAY'S PAPER SIZE
SETTING
19
MISFEED REMOVAL 70
TONER CARTRIDGE REPLACEMENT 74
CHECKING THE TOTAL COUNT 77
CLEANING THE MACHINE 78
