MX-3610N Dehumidifying heater 3 – 7

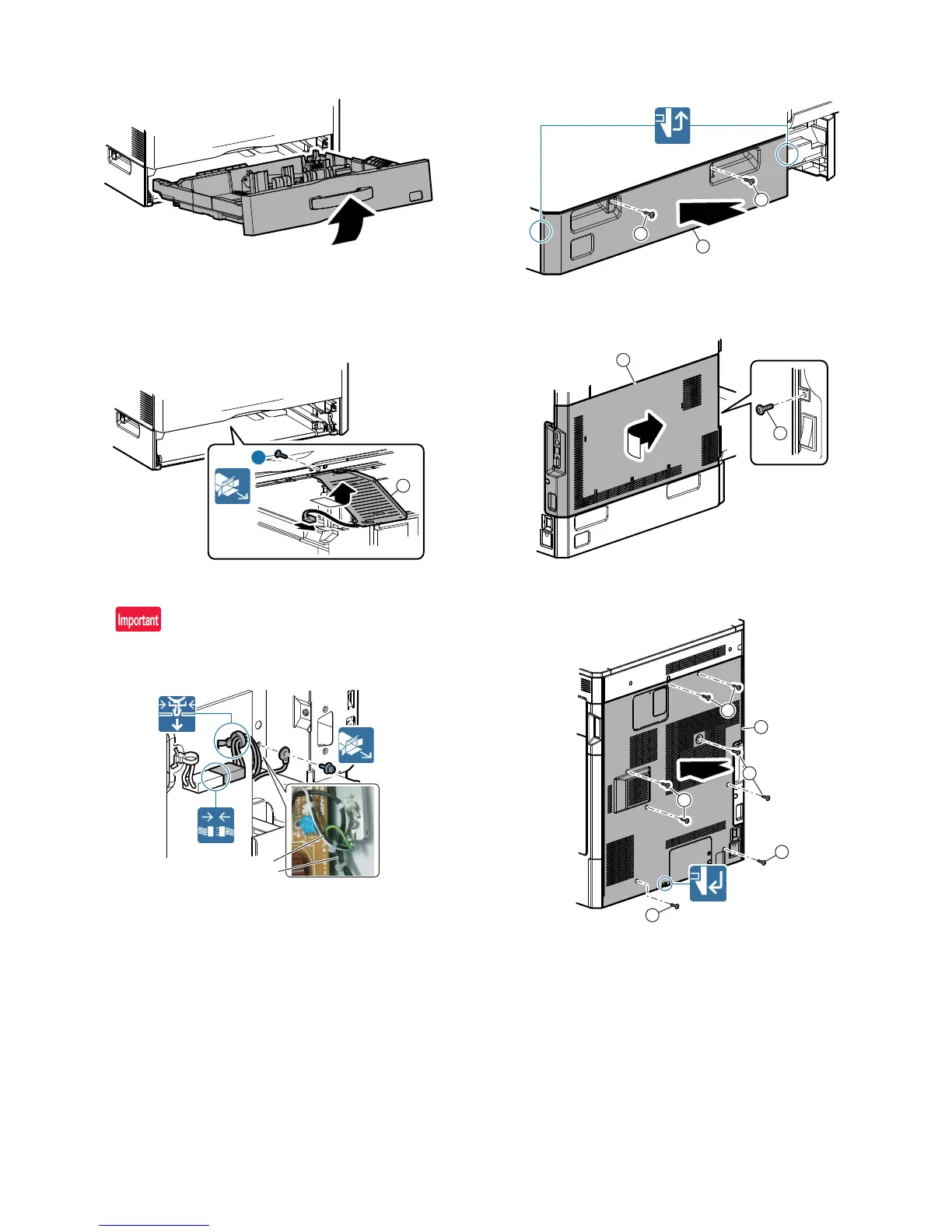

(2) Heater unit attachment
1) Remove the tray 1.
2) Attach the heater unit to the main unit, and secure it with the
screw (M4 x 10 P-tight).
Pass the harness of the heater through the hole on the main
unit frame.
3) Fix the earth wire with a screw. Connect the connector.
Pass the WH harness under the CCS-WH harness to the
switch.
(3) External fixture attachment
1) Attach the left cabinet lower.
2) Attach the left cabinet.
3) Attach the rear cabinet.
2
1
CSS-WH harness
WH harness
