MX-3610N Dehumidifying heater 3 – 8

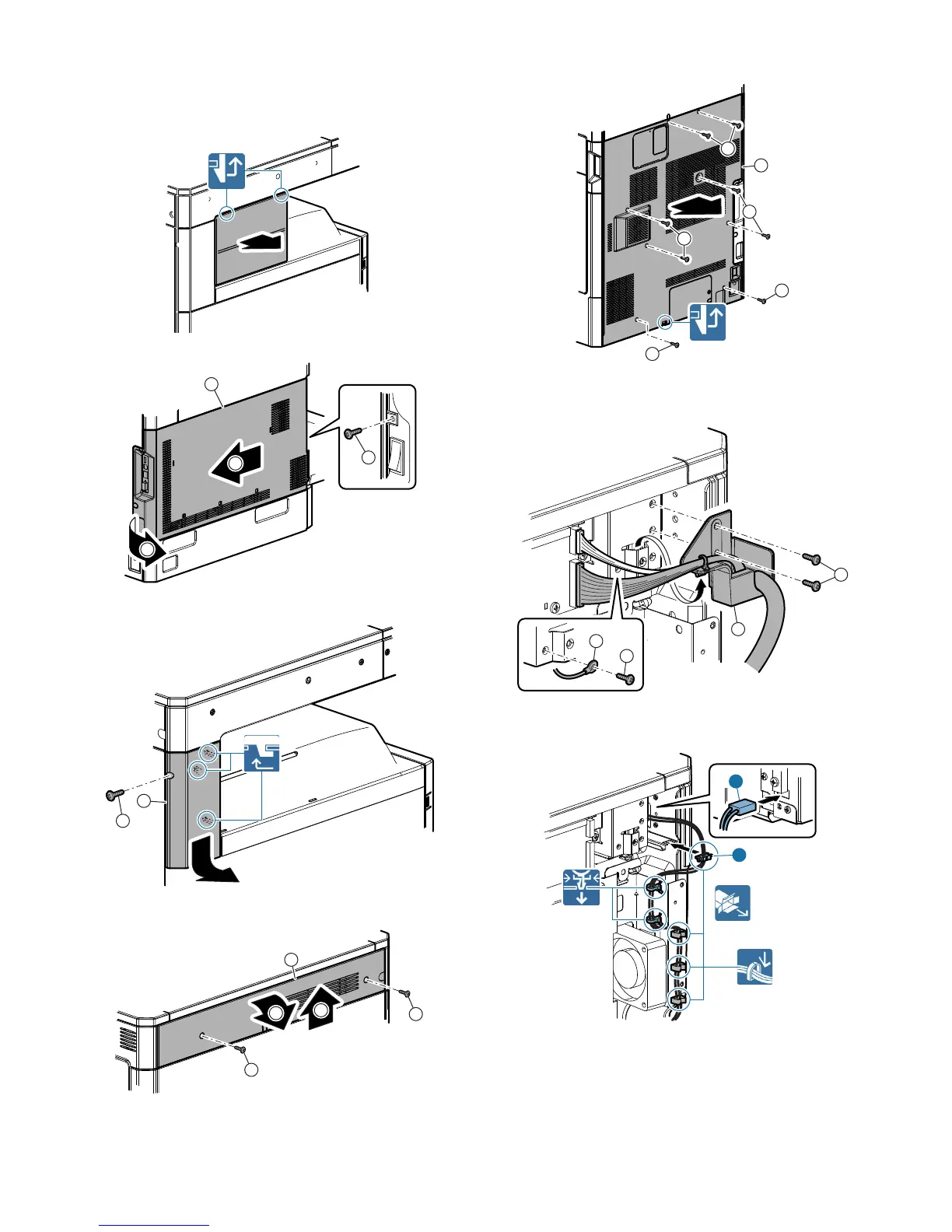

C. Scanner heater kit installation
(1) External fixture removal
1) Remove the paper exit cover.
2) Remove the left cabinet.
3) Remove the left cabinet upper.
4) Remove the rear upper cabinet.
5) Remove the rear cabinet.
(2) SCN-WH harness connection
1) Remove the harness guide.
2) Connect the SCN-WH harness connector to the scanner
frame.
2
1
1
2
1
2
2
1
1
1
2
2
1
1
1
1
1
3
4
2
1
1
2
