MX-3610N Dehumidifying heater 3 – 9
3) Hang the SCN-WH harness to the main drive unit.
4) Connect the SCN-WH harness to the WH PWB.

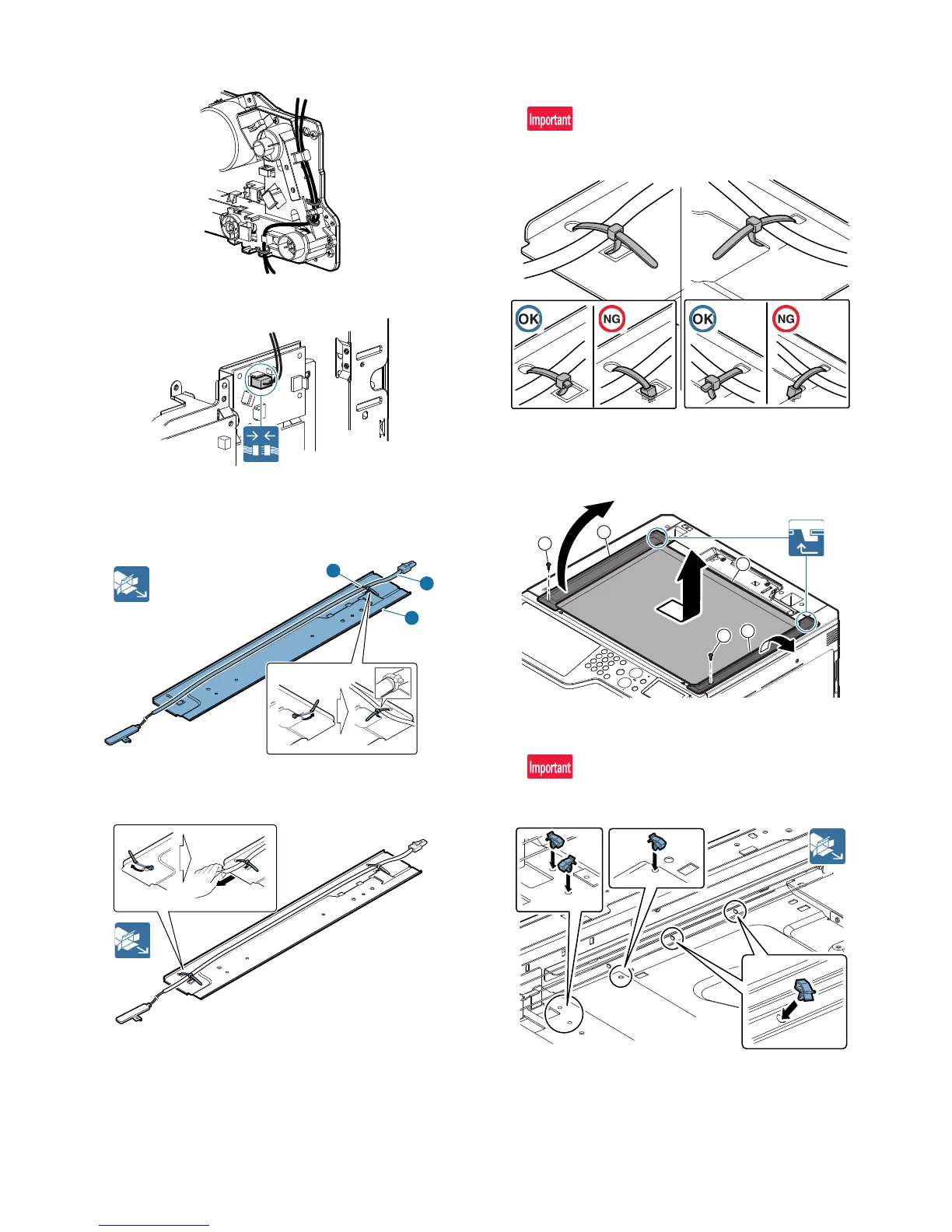

(3) Scanner heater unit assembly
1) Secure the marking position on the harness of the scanner
heater to the heater fixing plate with the banding band.
2) Extend the harness, and secure the other position of it with
banding band.
3) Tighten the snap band and cut its tip to approx. 5 mm or less.
Slide the banding band head to the square hole (Part that is
enclosed by the mark).
The banding band head and cut tip must not protrude behind
the heater fixing plate.
(4) Table glass removal
1) Remove the glass holder. Remove the table glass and the
SPF glass.
(5) Scanner heater unit attachment
1) Attach the clamp to the scanner frame.
When installing, be careful to prevent damage of the wire.
