MX-3610N Dehumidifying heater 3 – 15

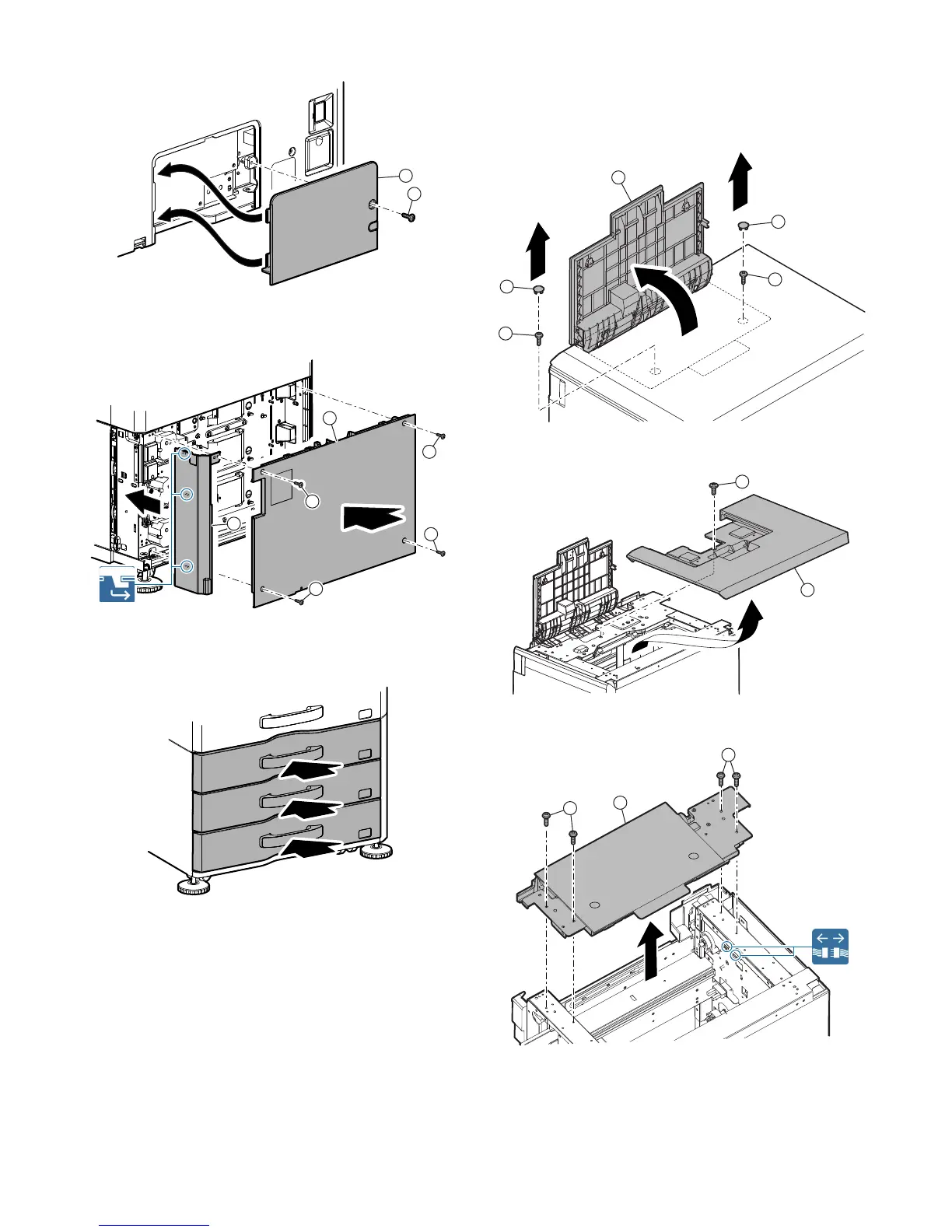

3) Attach the rear cabinet cover of the machine.
(10) Right rear cabinet and rear cabinet attachment
1) Attach the right rear cabinet and the rear cabinet.
(11) Paper feed tray attachment
1) Attach the paper feed tray.
E. LCC heater kit installation
(1) Paper feed unit removal
1) Pull out the paper feed tray.
2) Open the upper cover.
3) Remove the upper cabinet.
4) Disconnect the connector, and remove the paper feed unit.
