MX-3610N Dehumidifying heater 3 – 16

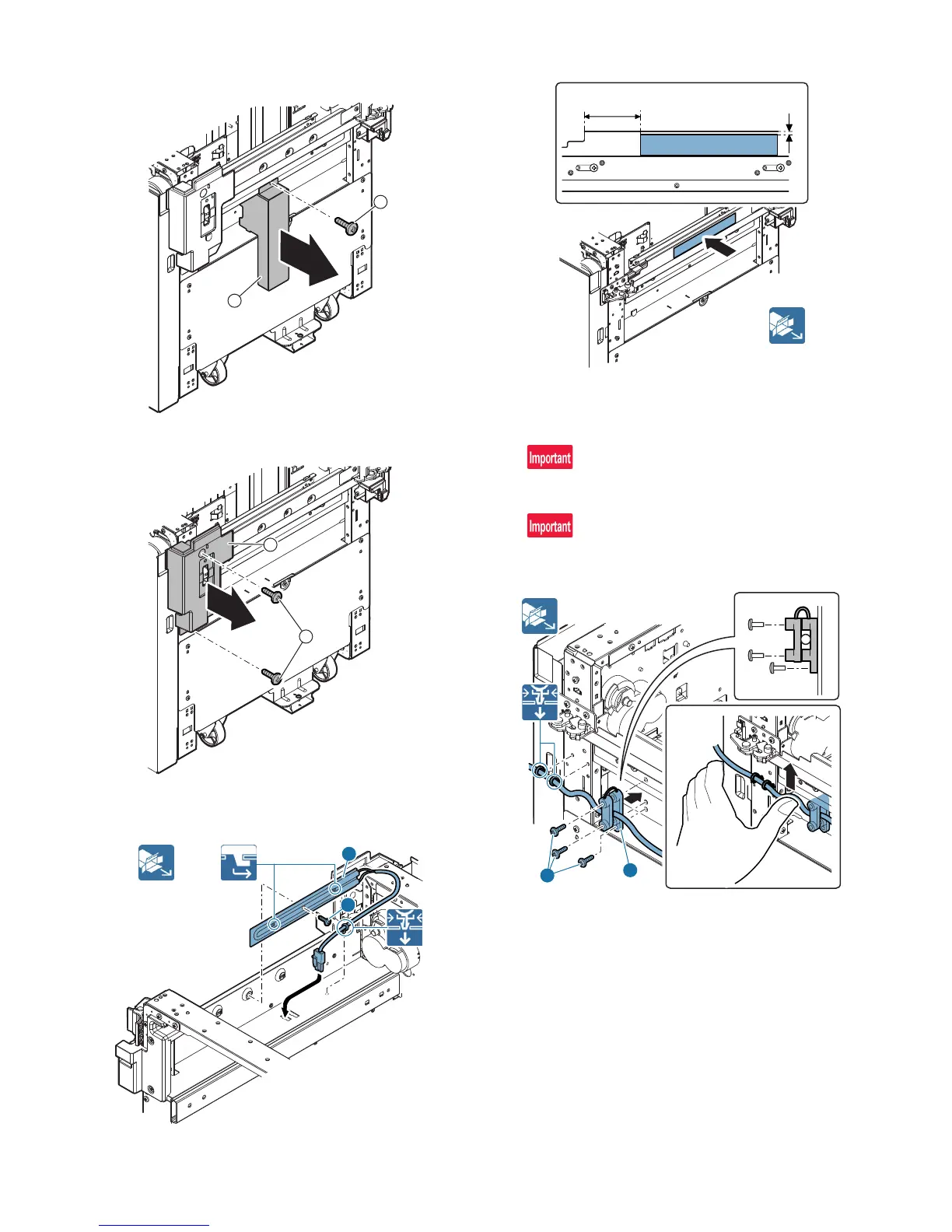

(2) Heater cover and cabinet removal
1) Remove the heater cover.
2) Remove the cabinet.
(3) Heater attachment
1) Attach the heater.
2) Attach the protect sheet.
(4) Heater harness unit attachment
1) Attach the snap band of the heater harness unit. While holding
the harness upward, attach the AC cord fixer.
After attaching the snap band, cut and trim the end of the
band.
Be careful not to mistake the attaching direction of the AC cord
fixer.
1
2
1
2
2
1
