Sharp MX-M264N Installation Manual

MX-M264U MX-DE17/DE18 (500/2x500 SHEET PAPER DRAWER) 5 – 2

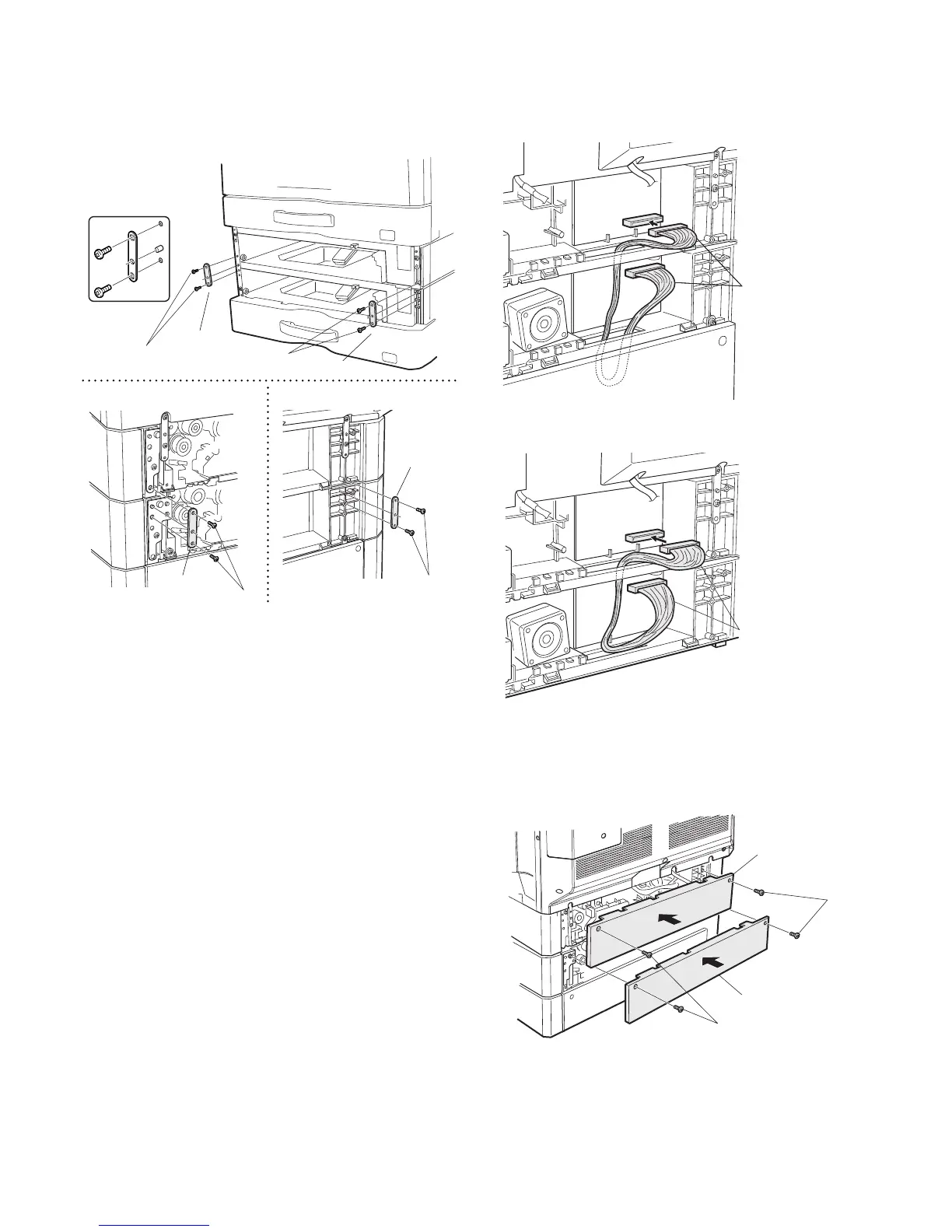

D. Attach the copier
1) Place the copier on the optional paper feed unit and remove
the second and third paper trays.
Connect the copier to the paper feed unit using four fixing
plates and two screws (M4 x 12) for each plate.
E. Connect the harness
1) Connect the cassette interface harness contained in the
optional paper feed unit to the paper feed unit interface PWB.
For two tray type
For one tray type
F. Attach the rear covers of the copier and the
optional paper feed unit
1) Attach the rear covers of the copier and the optional paper
feed unit using two screws respectively.
Right of rear side
Screws
(M4 x 12)
Detailed view
Front side
Screws (M4 x 12)
Screws (M4 x 12)
Fixing plate
Fixing plate
Fixing plate
Screws
(M4 x 12)
Left of rear side
Fixing plate
Cassette relay harness
Cassette relay harness
Rear cover
Rear cover
Screw
Screw

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
