IMPORTANT POINTS ABOUT PAPER
This section provides information that you should know before loading paper in the paper trays.
Be sure to read this section before loading paper.
NAMES AND LOCATIONS OF TRAYS

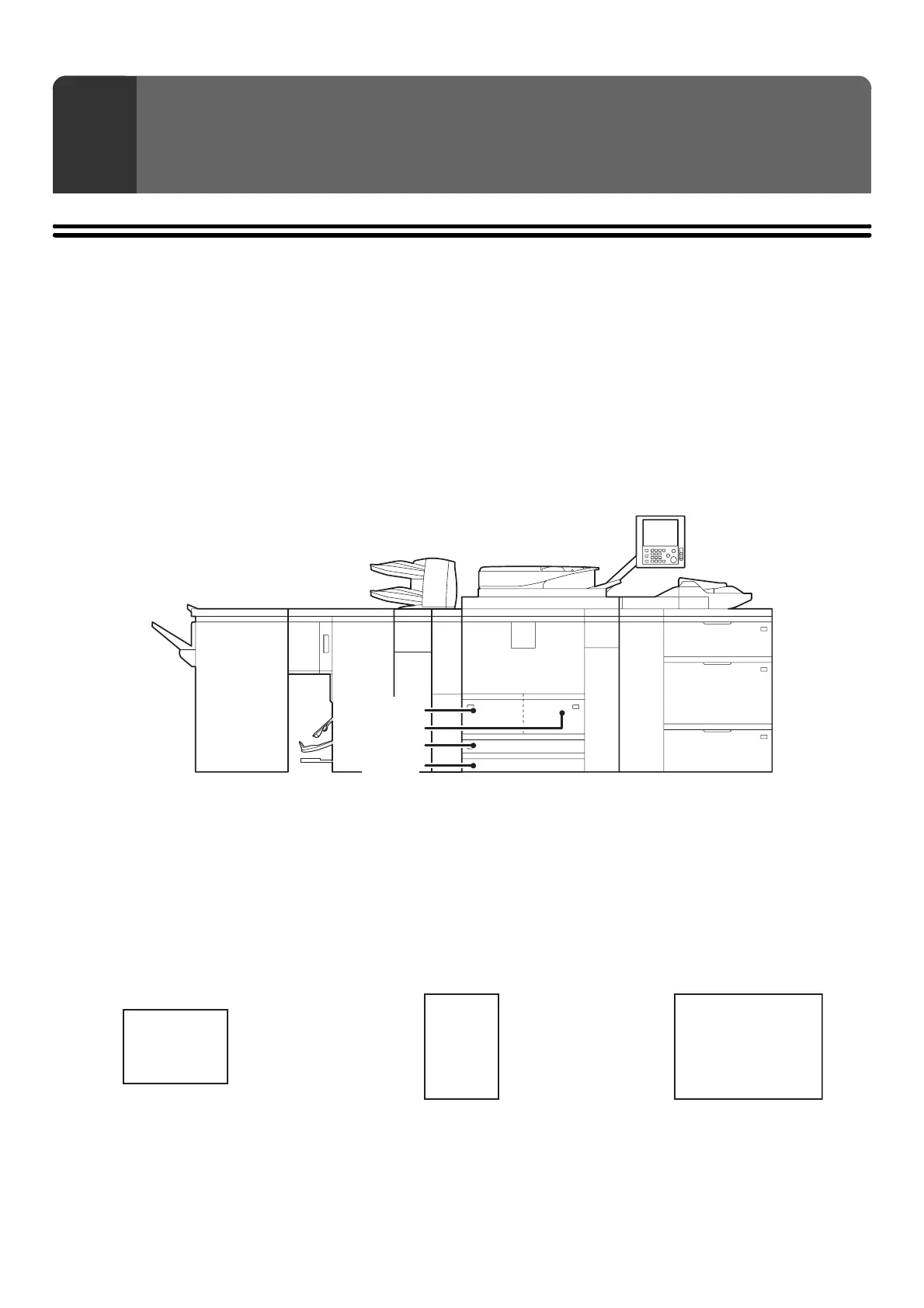

The trays are identified by the names indicated below. For the names of the peripheral device trays, see "TRAY
LOCATIONS AND NAMES" (page 35). For detailed information on the sizes and types of paper that can be loaded in
each tray of the machine, see the specifications in the Safety Guide and "PAPER TRAY SETTINGS" (page 80) in the
System Settings. For information on the peripheral device trays, see "TRAY LOCATIONS AND NAMES" (page 35).
THE MEANING OF "R" IN PAPER SIZES
Some original and paper sizes can be placed in either the vertical or the horizontal orientation. To differentiate between
vertical and horizontal orientations, paper sizes in the horizontal orientation will be followed by an "R" (for example,
8-1/2" x 11"R, A4R).
Sizes that can be placed only in the horizontal orientation (12" x 18", 11" x 17", 8-1/2" x 14", 8-1/2" x 13", A3W, A3, B4)
do not include the "R" in their size indication.
2
LOADING PAPER
Horizontal orientation
"R" is appended.
Vertical orientation
"R" is not appended.
Can be placed only in the
horizontal orientation
"R" is not appended.
Tray 1
Tray 2
Tray 3
Tray 4
8-1/2" x 11"R
(A4R)
8-1/2" x 11"
(A4)
11" x 17"
(A3)
