59
NAMES AND FUNCTIONS OF THE PARTS
OF THE PERIPHERAL DEVICE
This section explains the names and functions of the parts of the following peripheral devices:
FINISHER (page 59)
SADDLE UNIT (page 60)
FINISHER (FOR THE MX-M850) / SADDLE STITCH FINISHER (page 60)
FOLDING UNIT (page 61)
INSERTER (page 62)
FINISHER
The finisher is equipped with the offset function, which offsets each set of output from the previous set, and the staple
sort function, which staples each set of output.
A punch module can also be installed to punch holes in output.

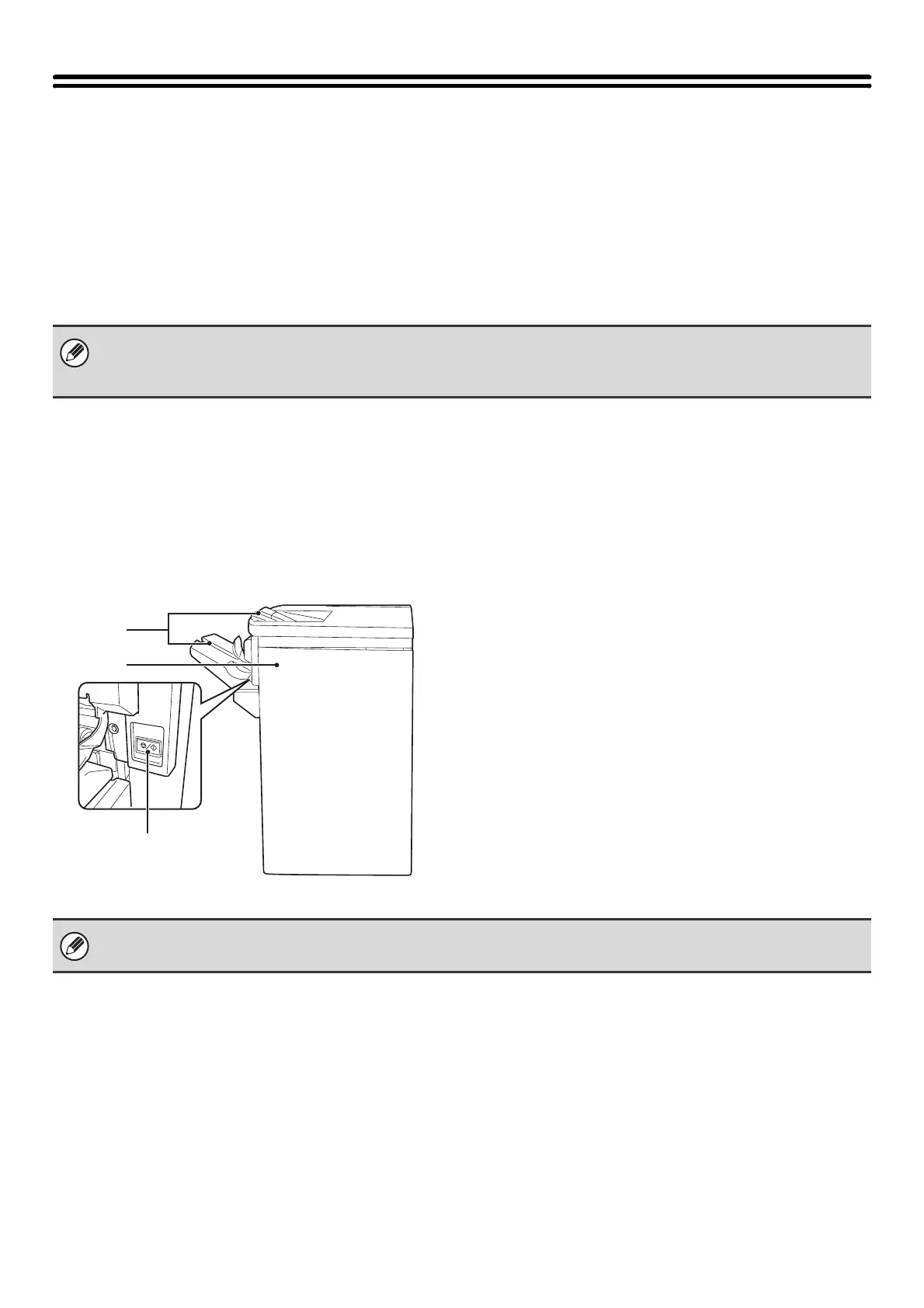

Part names
(1) Output trays (top tray, offset tray)
Stapled and offset output is delivered to these trays.
The trays are slidable. For large-size output (larger than
8-1/2" x 11"R or A4R), extend the tray.
(2) Cover
Open this cover to remove a paper misfeed, replace the
staple cartridge or remove a staple jam.
(3) [STOP] button
This button temporarily stops printing to the offset tray.
This button can be used to pause printing and remove
output from the offset tray before the maximum tray
capacity is reached. To resume printing, press the button
once again.
• Do not place heavy objects on or press down on the peripheral devices
• For peripheral devices with an offset tray, note that the tray will move up and down when the power is turned on and during
output.
(1)
(2)
(3)
• The finisher cannot be installed when a finisher (for the MX-M850), or saddle stitch finisher is installed.
• Paper that can be punched is 5-1/2" x 8-1/2" to 11" x 17" (16 lbs. to 65 lbs. cover) (A5 to A3 (52 g/m
2
to 176 g/m
2
))
