Sharp MX-M950 User Guide

60
SADDLE UNIT
The saddle unit is equipped with the saddle stitch function, which automatically staples and folds each set of output at
the centerline.

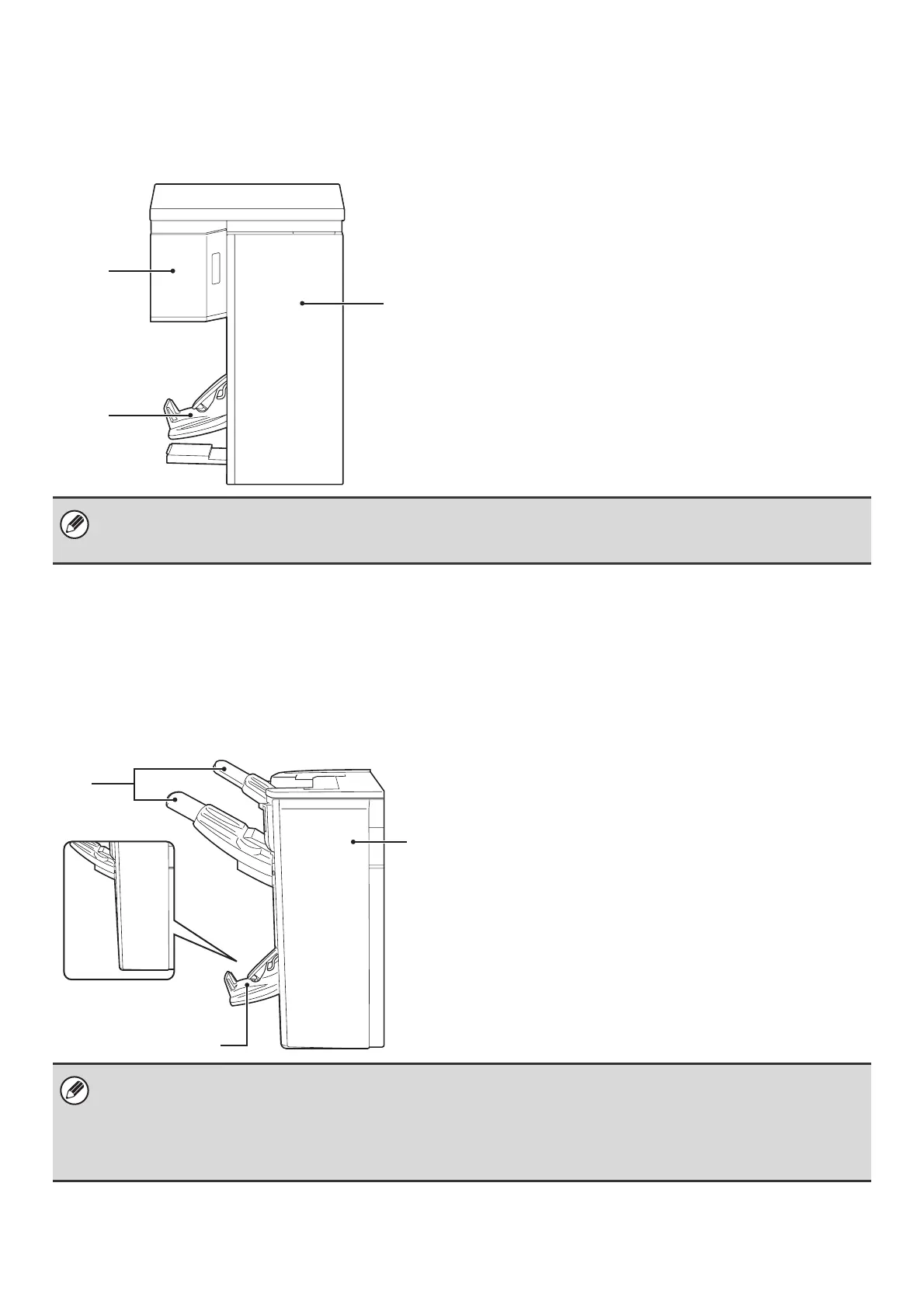

Part names
(1) Left front cover
Open this cover to remove a paper misfeed.
(2) Saddle stitch tray
Stapled and folded output is delivered to this tray.
(3) Cover
Open this cover to remove a paper misfeed, replace the
staple cartridge or remove a staple jam.
FINISHER (FOR THE MX-M850) / SADDLE STITCH
FINISHER
The finisher (for the MX-M850) and saddle stitch finisher are equipped with the offset function, which offsets each set of
output from the previous set, and the staple sort function, which staples each set of output. The saddle stitch finisher is
also equipped with the saddle stitch function, which automatically staples and folds each set of output at the centerline.
A punch module can also be installed to punch holes in output.
Part names
(1) Output trays (top tray, offset tray)
Stapled and offset output is delivered to these trays.
The trays are slidable. For large-size output (larger than
8-1/2" x 11"R or A4R), extend the tray.
(2) Saddle stitch tray (Saddle stitch finisher only)
Stapled and folded output is delivered to this tray.
(3) Cover
Open this cover to remove a paper misfeed, replace the
staple cartridge or remove a staple jam.
(3)
(1)
(2)
• The saddle unit cannot be installed when a finisher (for the MX-M850), or saddle stitch finisher is installed.
• Paper that can be used for the saddle stitch function is 8-1/2" x 11"R to 12" x 18" (16 lbs. to 24 lbs.) (B5R to A3W
(60 g/m
2
to 90 g/m
2
)).
(3)
(2)
(1)
Finisher
(for the MX-M850)
• The saddle stitch finisher cannot be installed when a finisher, finisher (for the MX-M850), saddle unit, inserter, or folding
unit is installed. Similarly, the finisher (for the MX-M850) cannot be installed when a finisher, saddle unit, saddle stitch
finisher, inserter, or folding unit is installed.
• Paper that can be used for the saddle stitch function is 8-1/2" x 11"R to 12" x 18" (16 lbs. to 24 lbs.) (B5R to A3W (60
g/m
2
to 90 g/m
2
)).
• Paper that can be punched is 8-1/2" x 11R" to 11" x 17" (16 lbs. to 90 lbs. index) (B5 to A3 (52 g/m
2
to 163 g/m
2
))
