Changing the paper size
To change the paper size of the large capacity tray (MX-LCX3N), follow the procedure below.
This procedure only explains how to change the paper size. For the procedures for opening/closing the tray and loading
paper, see "Loading paper" (page 44).

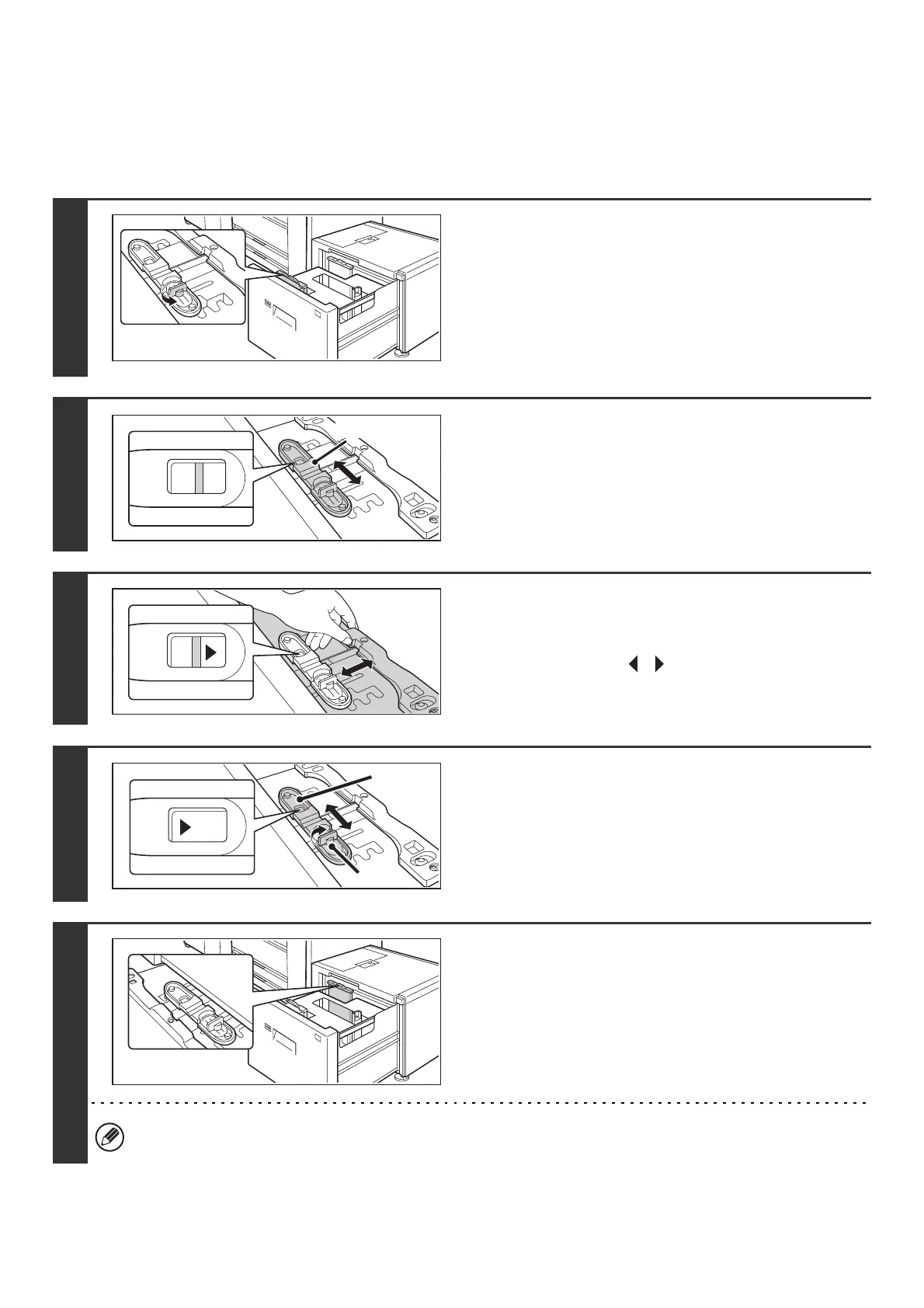

1
Loosen the paper guide screw.
2
Slide the plate of the paper guide.
Slide the plate until the red line appears at the center of the size
window of the plate.
3
Adjust the paper guide to the paper size
that will be used.
Slide the paper guide forward or backward until the size mark
of the paper to be used ( or ) appears in the size window of
the plate.
4
Secure the paper guide.
(1) Slide the plate of the paper guide.
Slide the plate until the paper size to be used appears in
the size window of the plate.
(2) Tighten the paper guide screw.
5
Repeat steps 1 through 4 to adjust the
far paper guide to the paper size to be
used.
Be sure to adjust the far guide to the same paper size as the
near guide.
Adjusting only one paper guide may result in skewed feeding or misfeeds.
Plate
(1)
(2)
