Safety Arm
To avoid serious injury or death,
the safety arm must be installed
after the Post Driver has been
mounted on a machine, or the
freestanding Post Driver has been secured
to prevent tipping.

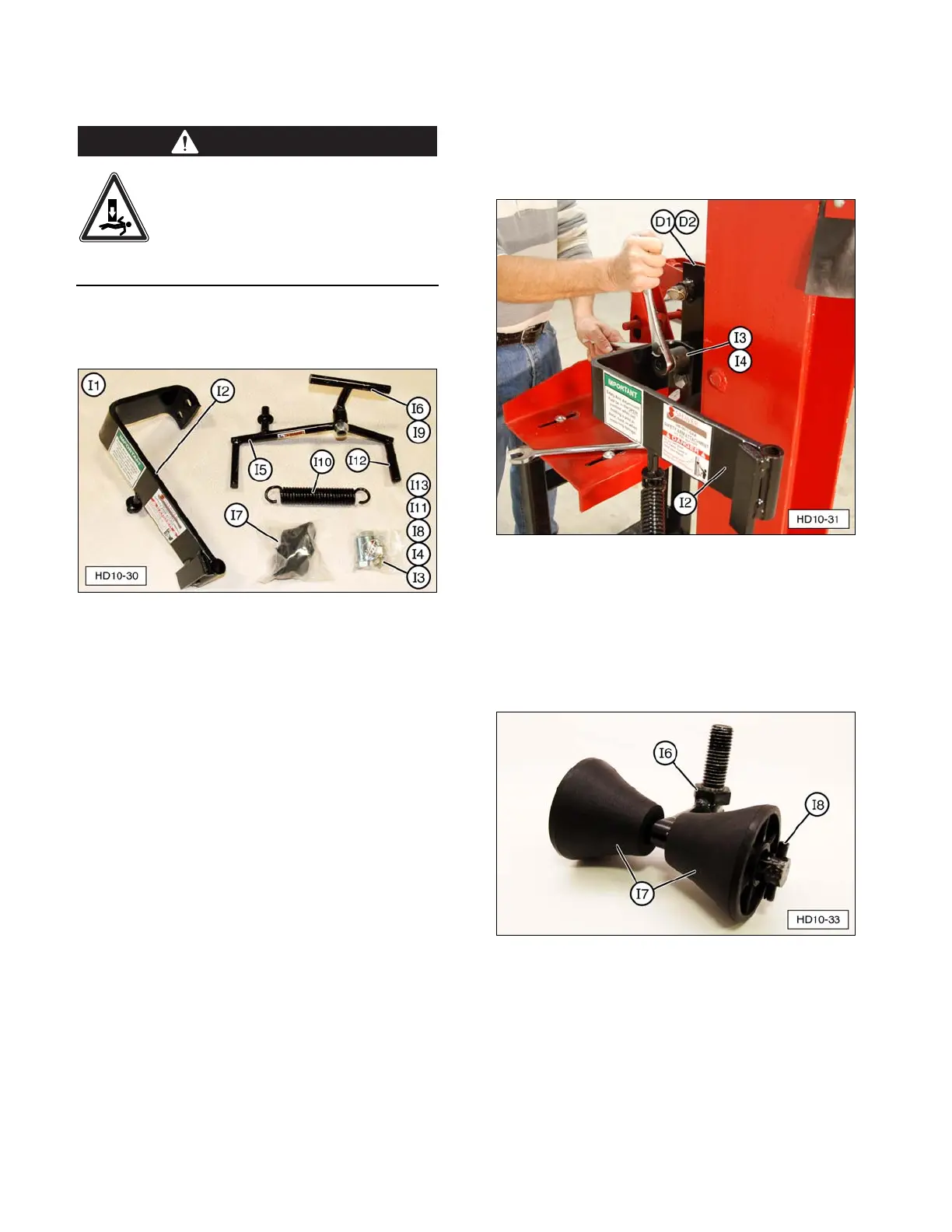

1. Locate safety arm assembly parts and
hardware.
(I2) Safety Arm Frame. (I3) Frame Mounting Bolt.
(I4) Self Locking Nut. (I5) Swing Arm Handle.
(I6) Roller Bracket. (I7) Rollers. (I8) Roller Retainer Roll
Pin. (I9) Roller Bracket Nut. (I10) Latch Spring.
(I11) Spring Retainer Flat Washer. (I12) Swing Arm
Handle Cover. (I13) Lynch Pin.
2. Attach safety arm frame (I2) to outside of
short channel bracket (D1 or D2) with two
3/4-10 x 2” frame mounting bolts (I3) and
self locking nuts (I4), as shown. Tighten
nuts securely.
(D1) Manual Short Channel Bracket. (D2) Hydraulic
Short Channel Bracket (not shown). (I2) Safety Arm
Frame. (I3) Frame Mounting Bolt. (I4) Self Locking Nut.
3. Assemble rollers (I7) onto roller bracket (I6)
and secure with two roller retainer roll pins
(I8), as shown.
(I6) Roller Bracket. (I7) Roller. (I8) Roller Retainer Roll
Pin.
