Assembly Procedure
Recommended Tools
The basic tools needed to assemble and
maintain the HD-10 and HD-10-H Post Driver
are shown below. Additional specialized tools
may be required.

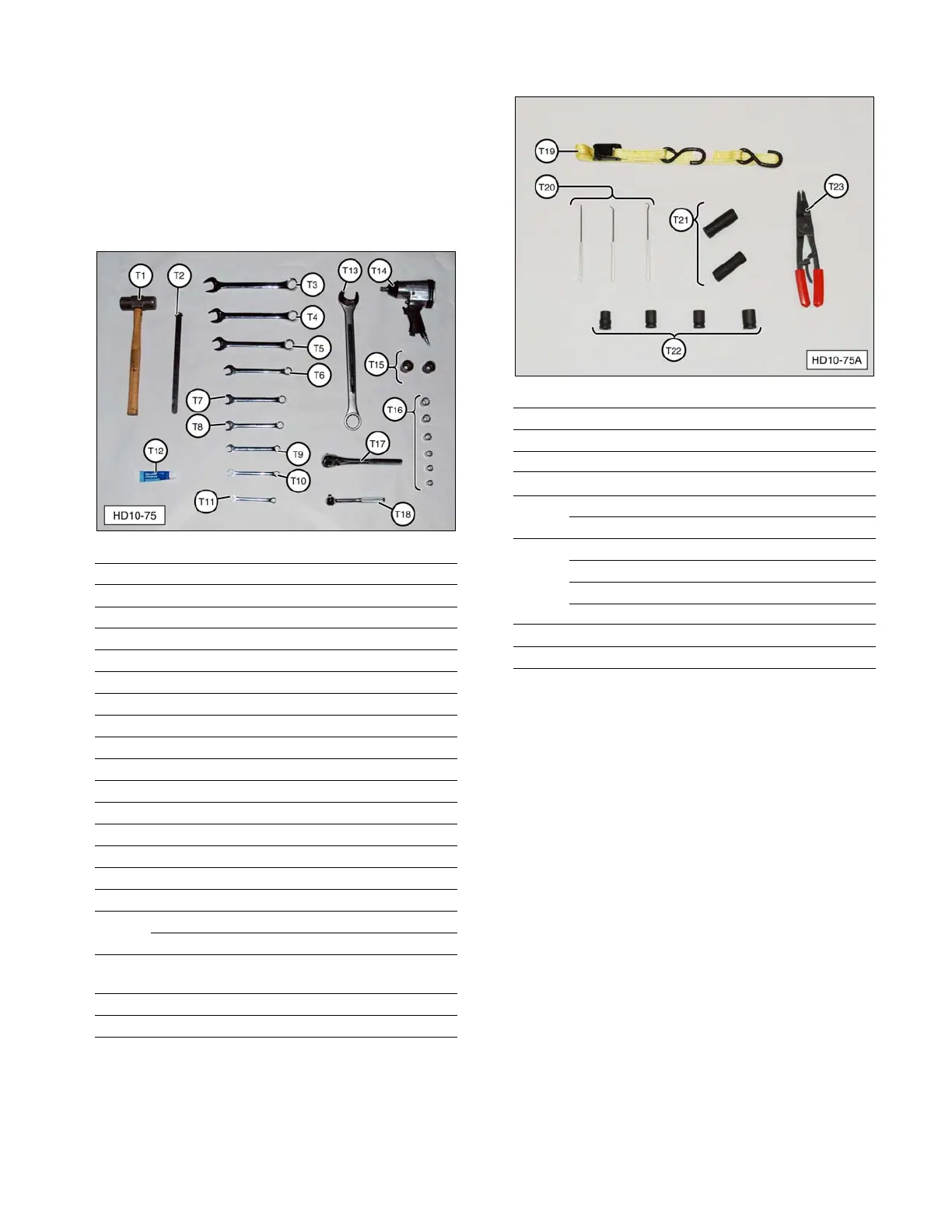

HD-10 and HD-10-H Recommended Tools
No. Description Qty
T1 Mallet or Hammer 1
T2 Straight Edge 1
T3 1-1/8 Inch Combination Wrench 1
T4 1-1/16 Inch Combination Wrench 1
T5 15/16 Inch Combination Wrench 1
T6 3/4 Inch Combination Wrench 1
T7 11/16 Inch Combination Wrench 1
T8 5/8 Inch Combination Wrench 1
T9 9/16 Inch Combination Wrench 1
T10 1/2 Inch Combination Wrench 1
T11 7/16 Inch Combination Wrench 1
T12 Paste-Type Thread Sealant AR
T13 1-1/2 Inch Combination Wrench 1
T14 1/2 Inch Drive Impact Gun 1
T15 1-1/2 Inch Impact Socket 1
1-1/16 Inch Impact Socket 1
T16 3/8 and/or 1/2 Inch Drive Socket Set
(9/16, 5/8, 11/16, 3/4, 15/16, 1 Inch ) AR
T17 1/2 Inch Drive Ratchet 1
T18 3/8 Inch Drive Ratchet 1
HD-10 and HD-10-H Recommended Tools (continued)
No. Description Qty
T19 Heavy-Duty Retaining Strap 1
T20 Heavy-Duty Seal Picks
1
AR
T21 9/16 Inch Deepwell Impact Socket 1
1/2 Inch Deepwell Impact Socket 1
T22 9/16 Inch Impact Socket 1
5/8 Inch Impact Socket 1
11/16 Inch Impact Socket 1
3/4 Inch Impact Socket 1
T23 Heavy-Duty Snap Ring Pliers
1
1
— Soft Brass or Wood Drift
1
(not shown) 1
1
Required for cylinder seal replacement.
AR - As Required
7
To Next Page
