Shaver HD-10 - Drive Cylinder Assembly; Assembly

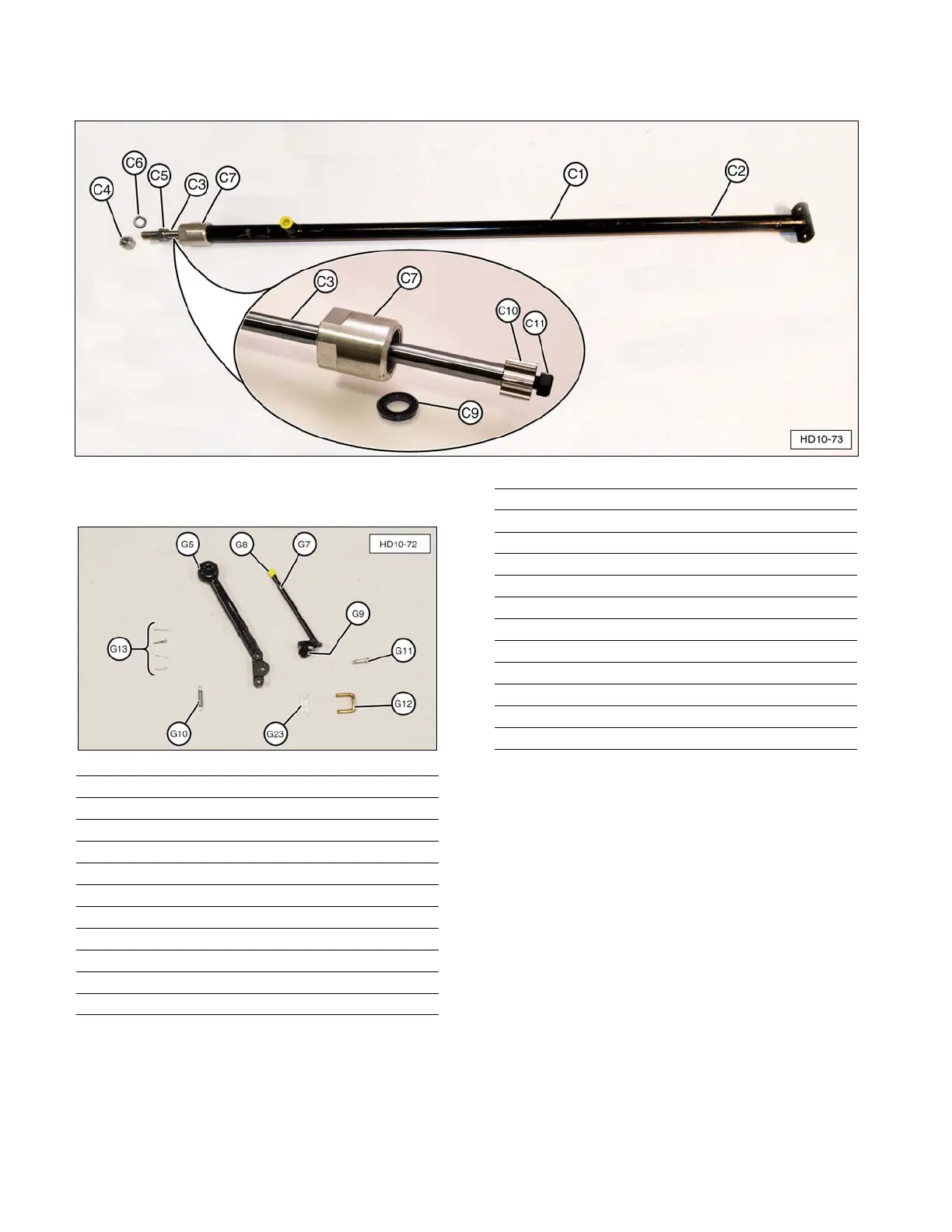

Drive Cylinder Assembly
Expanded View Of Safety Lever Assembly
HD-10 Service Parts - Safety Lever Assembly Detail
Item No. Part No. Description Qty.
G5 P-202 Control Valve Lever Only 1
G7 GS-001 Control Valve Safety Lever 1
G8 GS-001-2 Safety Lever Plastic Cap 1
G9 — Safety Lever Stop Setscrew 1
G10 GS-001-3 Safety Lever Return Spring 1
G11 P-206 Lever Clevis Pin 3
G12 P-209 U-Link 3
G13 P-205 Cotter Pin 4
G23 P-208 Flat Link 1
HD-10 Service Parts - Drive Ram Cylinder Assembly
Item No. Part No. Description Qty.
C1 SM-1026 Drive Ram Cylinder (complete) 1
C2 SM-10261 Drive Ram Cylinder Tube 1
C3 SM-10266 Drive Ram Cylinder Piston Rod 1
C4 SM-10267 Self-Locking Nut 1
C5 SM-018 Nut With Setscrew 1
C6 SM-10268 Spring Lock Washer 1
C7 SM-10262 Cylinder Cap With Seal 1
C9 SM-10265-D Cylinder Cap Seal Only 1
C10 SM-02610 Piston Rod Guide 1
C11 SM-0269 Self-Locking Piston Guide Nut 1
