Shaver HD-10 - Hitch, Safety Arm, and Hose Parts

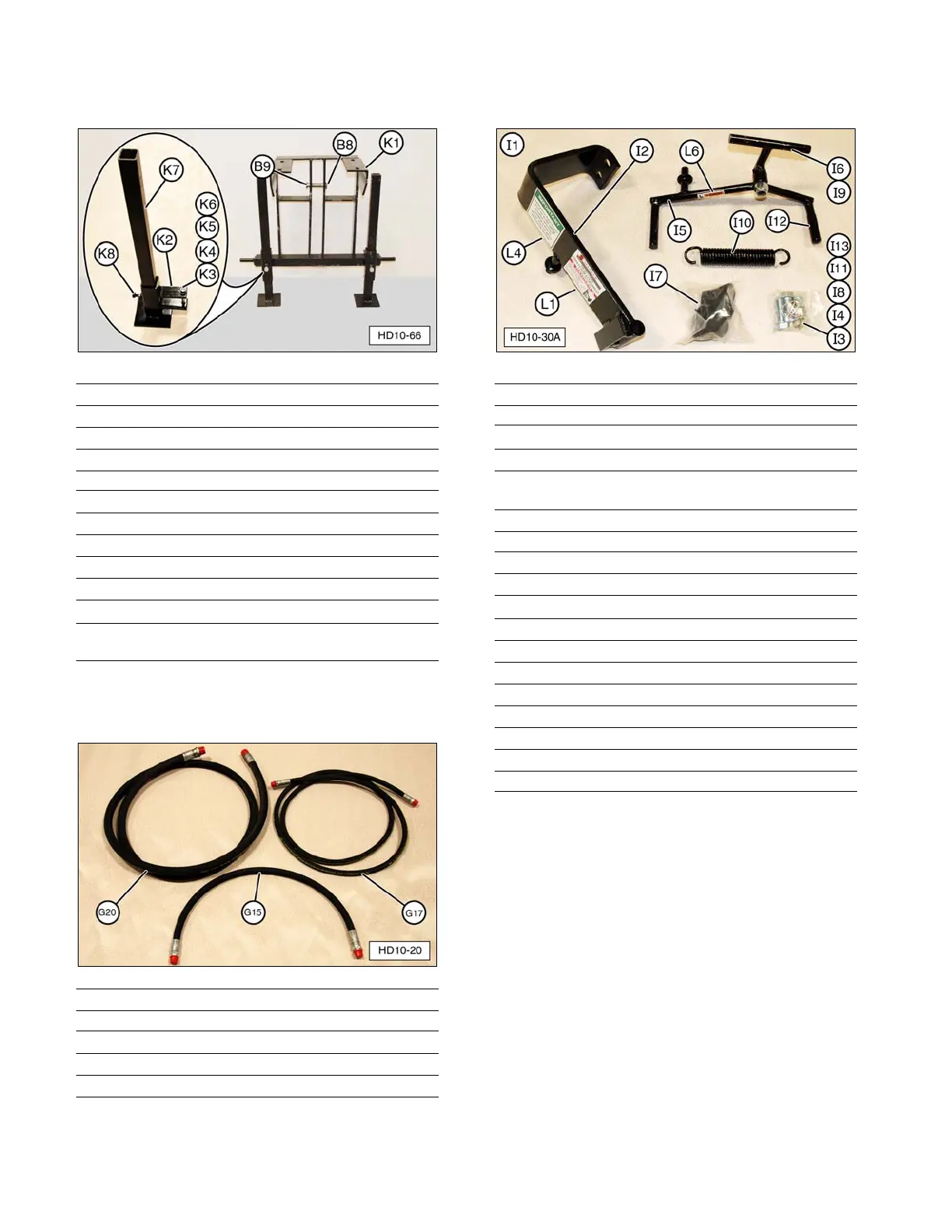

Three-Point Hitch Assembly
HD-10 Service Parts - Three-Point Hitch Assembly
Item No. Part No. Description Qty.
B8 MB-1201A-12 Upper Link Hitch Pin 1
B9 SM-2025-LP Lynch Pin 1
K1 MB-1201-A Three-Point Hitch Weldment 1
K2 OS-4-22-SFB Leg Bracket Weldment
1
2
K3 — Leg Bracket Bolt, 1/2-13 x 4
1
2
K4 — Leg Bracket Flat Washer, 1/2
1
2
K5 — Leg Bracket Lock Washer, 1/2
1
2
K6 — Leg Bracket Nut, 1/2-13
1
2
K7 OS-4-22-SSA Stabilizer Leg Only
1
2
K8 — Stabilizer Leg Lock Bolt, 2
5/8-11 x 1-1/2
1
1
OS-4-22 Stabilizer Leg Kit Includes Items K2 Through K8.
Hydraulic Hoses
HD-10 Service Parts - Hydraulic Hoses
Item No. Part No. Description Qty.
G15 SM-1023-P Valve to Drive Ram Hose
1
1
G17 SM-0234-P Power Supply to Valve Hose
2
1
G20 SM-1025-R Valve to Tank Return Hose
3
1
1
1” ID x 35” long.
2
1/2” ID x 120” long.
3
1” ID x 120” long.
Safety Arm Assembly
HD-10 Service Parts - Safety Arm Assembly
Item No. Part No. Description Qty.
I1 SM-0011-SAA Safety Arm Attachment
1
1
I2 SM-0011-SAAC Safety Arm Frame 1
I3 — Frame Mounting Bolt, 2
3/4-13 x 2
I4 — Self-Locking Nut, 3/4-13 2
I5 SM-0011-SAAD Swing Arm Handle 1
I6 SM-0011-SAA15 Roller Holder Swivel
2
1
I7 SM-0011-SAA16 Roller
2
2
I8 Roller Retainer Roll Pin
2
2
I9 Roller Bracket Nut, 3/4-13 1
I10 SM-0011-SAA2 Latch Spring 1
I11 SM-0011-SAA7 Flat Washer, 3/4 2
I12 SM-015-CC Swing Arm Handle Cover 1
I13 SM-2025-LP Lynch Pin, 3/16 x 1-7/8 3
L1 MS-165 Small “SHAVER” Decal 1
L4 MS-166 Safety Arm Decal 1
L6 MS-181 Pinch Area Warning Decal 1
1
Complete Safety Arm Kit (Items I2 through L6).
2
SM-0011-SAA13C Includes Items I6, I7, and I8.
