11. Install tilt cylinder(s) (F3, F4) with
appropriate mounting pins (F7, F8, and/or
D6) and secure with Lynch pins.
Reconnect the hydraulic hoses.

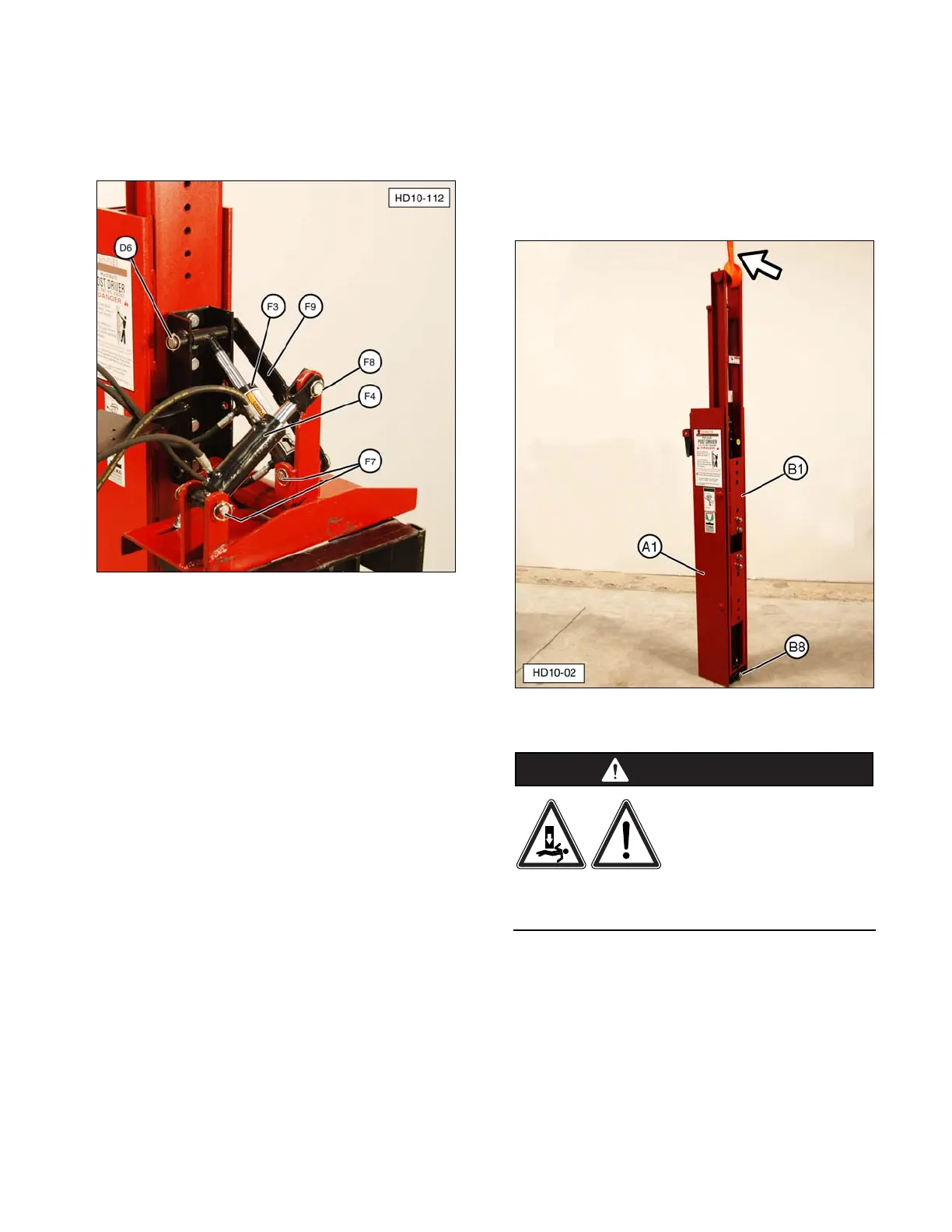

(D6) Short Channel Mounting Pin. (F3) Forward Tilt
Cylinder. (F4) Side Tilt Cylinder. (F7) Mounting Pin.
(F8) Short Mounting Pin.
Three-Point Hitch/Post Driver
Assembly
1. With road lock pin (B8) installed in the
lower hole of drive ram (A1), use a suitable
overhead lifting device to raise (stand up)
main carriage channel assembly (B1).
(A1) Drive Ram. (B1) Main Carriage Channel Assembly.
(B8) Road Lock Pin.
The main carriage
channel assembly is tall
and heavy. To avoid tip
over, resulting in serious
injury or death, leave the overhead lifting
device attached to the main carriage channel
while assembling components.
2. To connect the three-point hitch and Post
Driver assembly after service, refer to Step
5 in the Assembly Procedure, Base Plate
section in this manual.
