Introduction
The Shaver Manufacturing Company would
like to congratulate you on your purchase of
the Shaver Hydraulic Post Driver. You have
selected the best Post Driver in its class. The
clean design and uncomplicated working
principle have made Shaver the largest selling
Post Driver in the country.
The Shaver HD-10 (manual tilt adjustment) and
HD-10-H (hydraulic tilt adjustment) Hydraulic
Post Driver is a durable piece of equipment
that, with regular maintenance, will provide
many years of service.
This manual provides information regarding
assembly, operation, and maintenance. It is
important to read and become familiar with
this manual before assembling or operating
the Shaver Hydraulic Post Driver.
NOTE: For other valuable information on farm
equipment operation and safety, refer to the
following resources.
• Farm Equipment Manufacturers
Association (FEMA)
http://www.farmequip.org/home
• National Ag Safety Database
http://www.cdc.gov/nasd/
Product Information

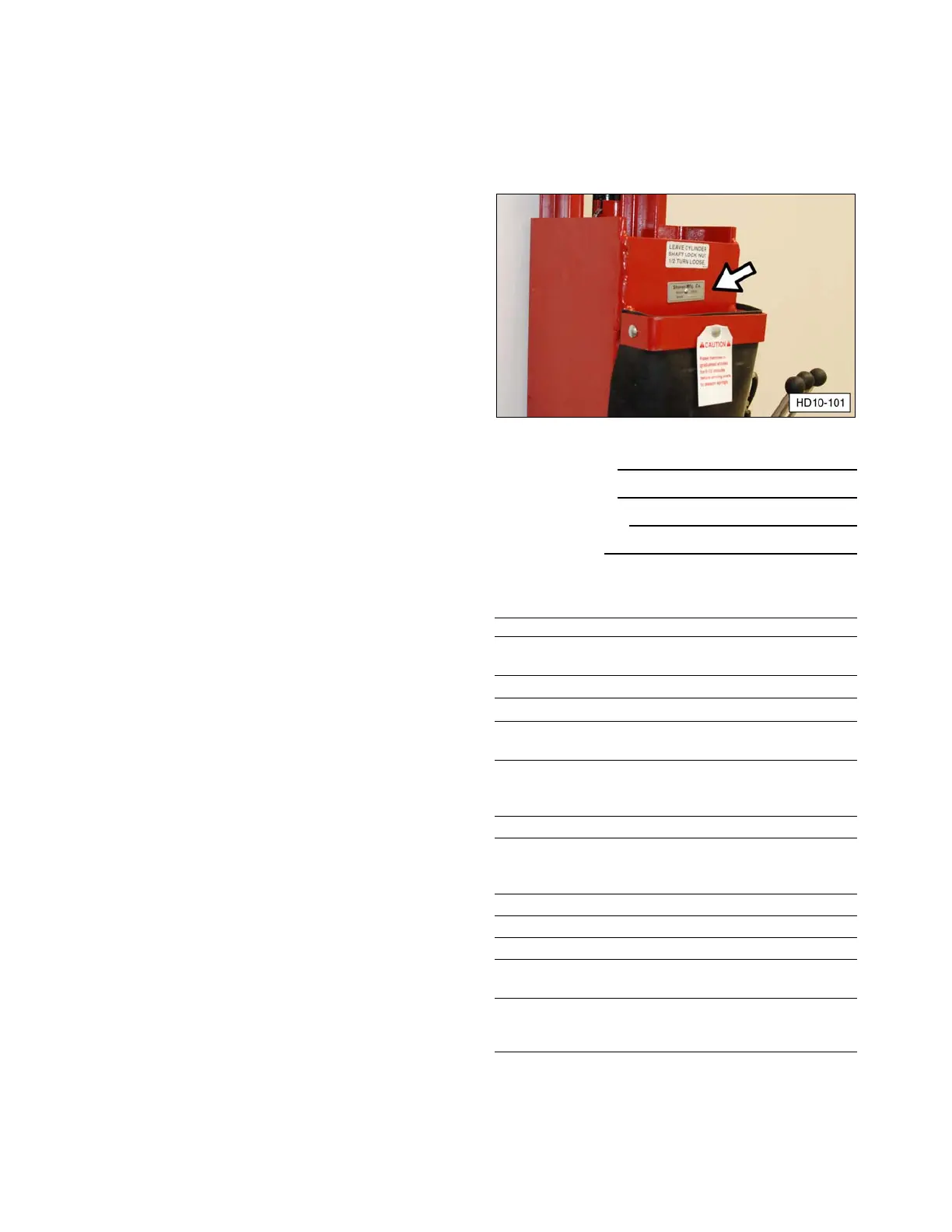

Record Shaver product information here. The
model number and serial number are found on
the metal tag attached to the drive ram.
Model Number
Serial Number
Date Purchased
Dealer Name
Specifications
HD-10 & HD-10-H Post Driver
Approximate Length
1
100 in (254 cm) collapsed
148 in (376 cm) extended
Approximate Width
2
44 in (111.8 cm)
Approximate Depth
2
33 in (88.8 cm)
Shipping Weight 694 lbs (315 kg) manual base
714 lbs (324 kg) hydraulic base
Effective Weight of 725 lbs (329 kg)
Spring Powered
Driving Ram
Impact (at full stroke) 71,500 lbs (32,432 kg)
Main Carriage Channel
Tilt Front/Back 15°/15°
Tilt Side/Side 15°/15°
Guide Blocks 4 (2 per side)
Mounting Options Tractor (rear/front) and skid steer
Three-Point Hitch Category II and III
Hydraulic Requirements 12 GPM at 1500 PSI
(45 LPM at 10,342 kPa)
Post Size
Maximum Width 8.75 in (22.2 cm)
Maximum Length 10 ft (3.0 m)
1
Driving ram and main carriage channel. Overall height will
vary, depending on mounting position and tractor.
2
With stabilizer legs attached to three-point hitch weldment.
