Main Carriage Channel
Disassembly
NOTE: Be prepared to collect any hydraulic
fluid that drains from the cylinder into a
suitable container.

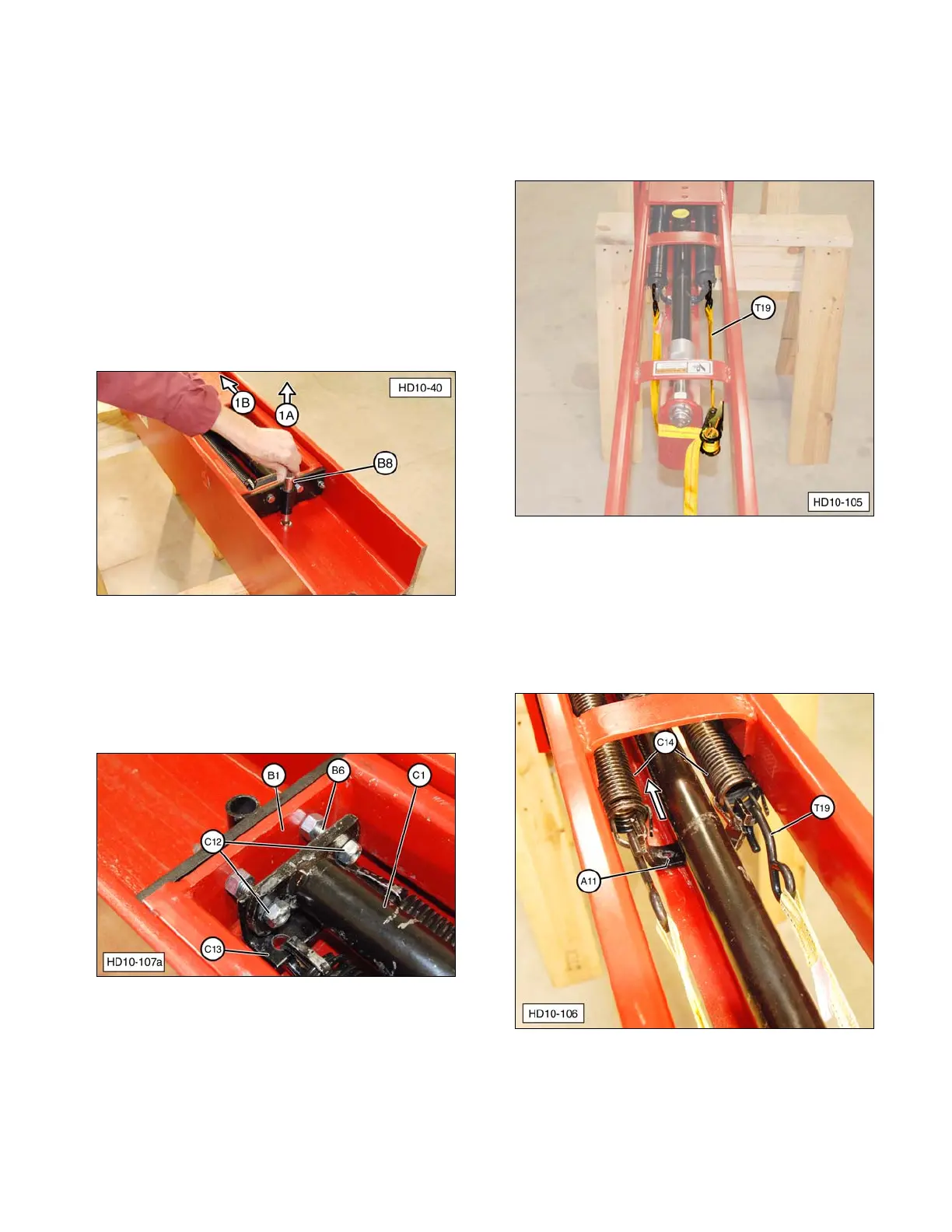

1a. Remove road lock pin (B8).
1b. Slide the main carriage channel up as far
as possible, to relieve tension on the
springs.
(B8) Road Lock Pin.
2. Loosen, but do not remove
,,
two
self-locking nuts (C12) that attach drive
cylinder (C2) and lower spring bracket
(C13) to main carriage channel (B1).
(B1) Main Carriage Channel. (C1) Drive Cylinder.
(C12) Self-Locking Nut. (C13) Lower Spring Bracket.
3. Connect retaining strap (T19) to both upper
spring eyes, with the strap positioned
around the top of the drive ram lift yoke bar,
as shown.
(T19) Retaining Strap.
4. Use retaining strap to pull springs (C14)
and then remove upper spring bracket
(A11) hardware. Carefully loosen the
retaining strap to release tension from the
springs.
(A11) Upper Spring Bracket. (C14) Return Springs.
(T19) Retaining Strap.
