Shaver HD-10 - Tilt Cylinder Assembly

53
Tilt Cylinder Assembly

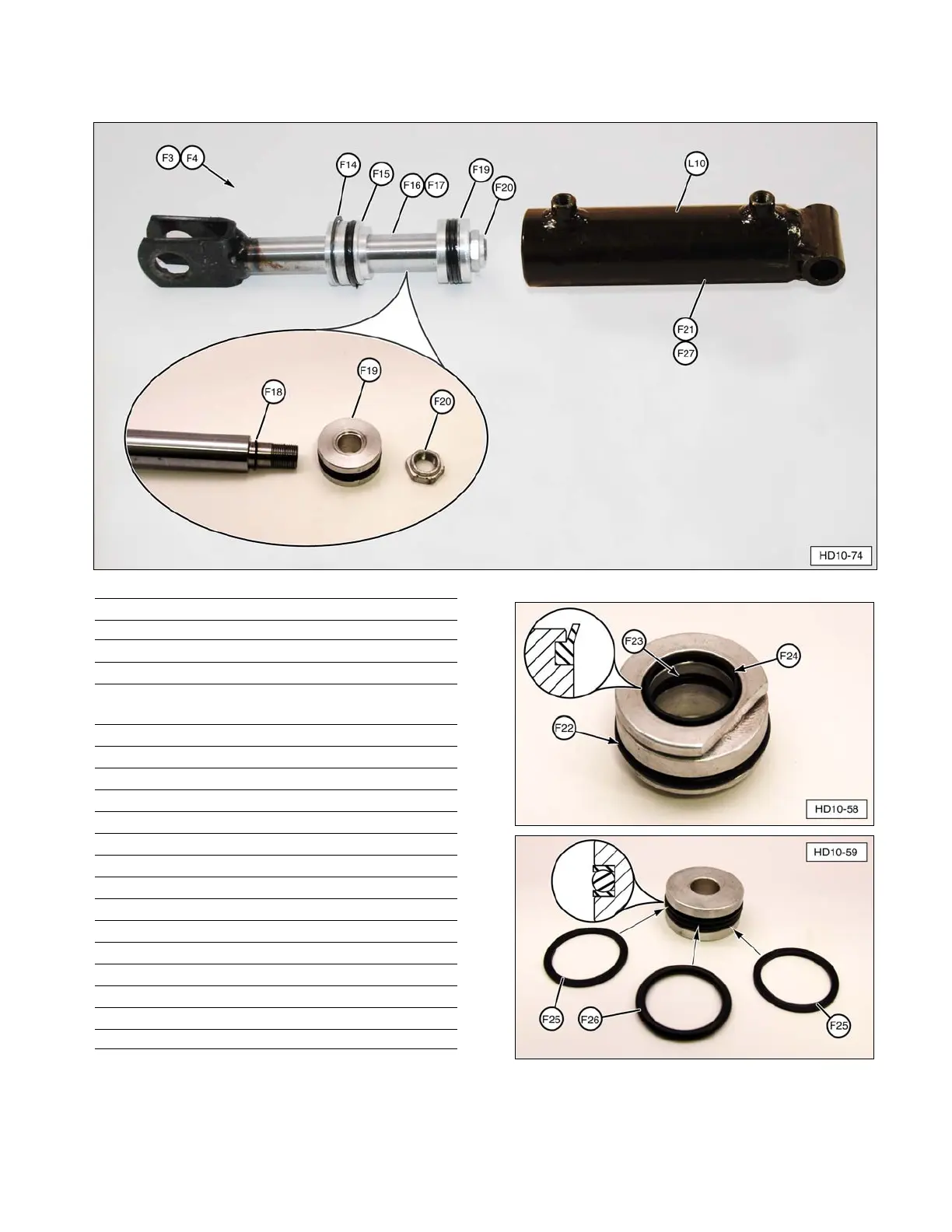

HD-10-H Service Parts - Fwd & Side Tilt Cylinder Assembly
Item No. Part No. Description Qty.
F3 HBP-90812 Forward Tilt Cylinder
1
1
F4 HBP-90813 Side Tilt Cylinder
1
1
F5 HBP-908131 Tilt Cylinder Seal Kit,
2
1
not shown
F14 HBP-908139 Snap Ring 1
F15 HBP-908136 Tilt Cylinder Cap/Gland 1
F16 HBP-90813-A Side Tilt Cylinder Rod 1
F17 HBP-908121 Forward Tilt Cylinder Rod 1
F18 — O-Ring Seal 1
F19 HBP-908137 Cylinder Piston 1
F20 HBP-908138 Piston Rod Self-Locking Nut 1
F21 HBP-90809 Fwd. Tilt Cylinder Tube Only 1
F22 — External O-Ring Seal 1
F23 — Internal O-Ring Seal 1
F24 — Internal Lip Seal 1
F25 — Scraper Seal 2
F26 — O-Ring Seal 1
F27 HBP-90810 Side Tilt Cylinder Tube Only 1
L10 MS-171 High-Pressure Warning Decal 1
1
Complete Tilt Cylinder.
2
Includes Items F18, F22, F23, F24, F25, and F26.
(one seal kit required per cylinder.)
