3. To drive the fence post straight, adjust the
main carriage channel side-to-side and
fore-and-aft using manual cranks (manual
base plate) or second and third hydraulic
control valve levers (hydraulic base plate).
IMPORTANT NOTICE
If the tilt cylinder hoses are attached differently
than shown, the control of the drive ram will not
be as described in this manual.

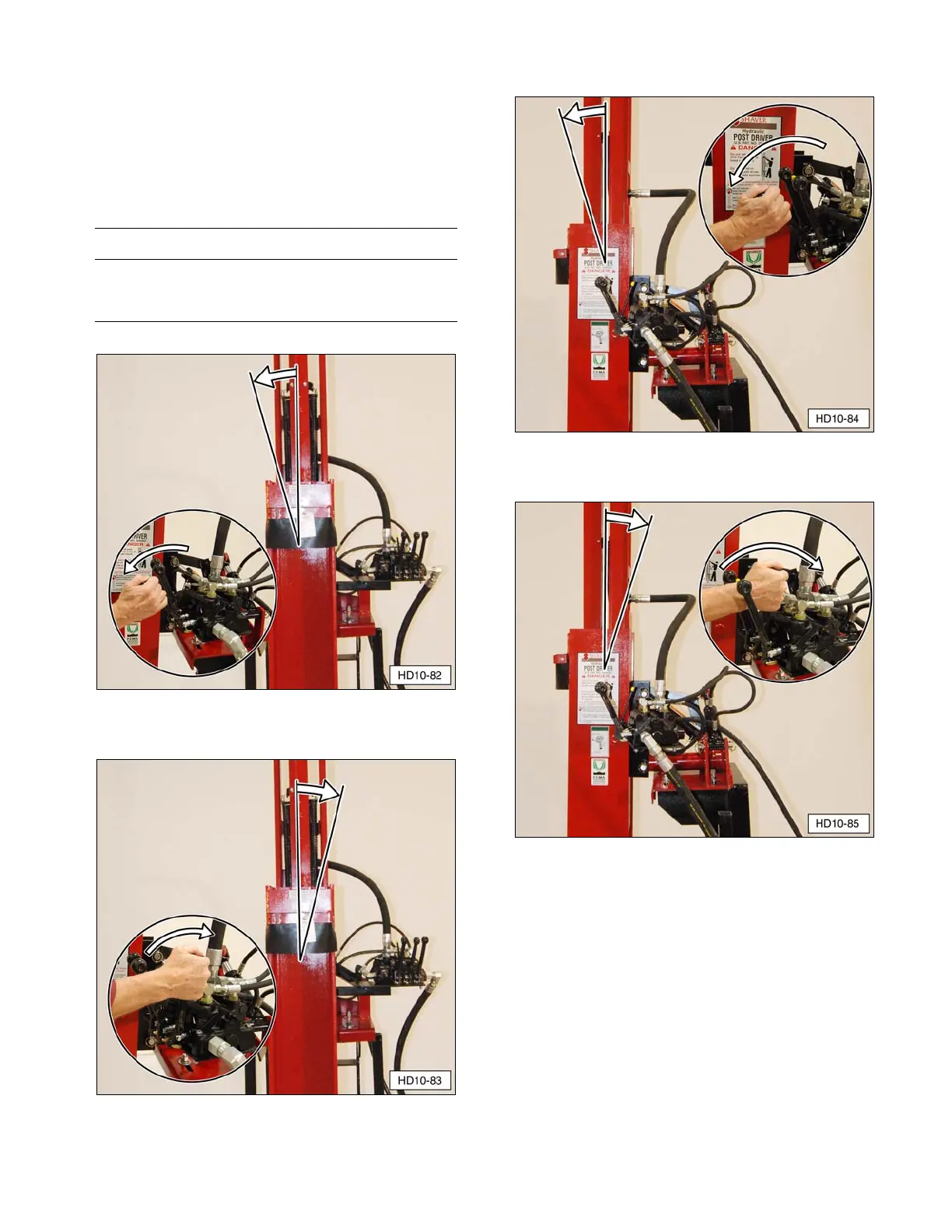

Tilt Top of Drive Ram Away From Operator.
Tilt Top of Drive Ram Toward Operator.
Tilt Top of Drive Ram Away From Tractor.
Tilt Top of Drive Ram Toward Tractor.
