REMOVING THE ENGINE
450 SEF-R

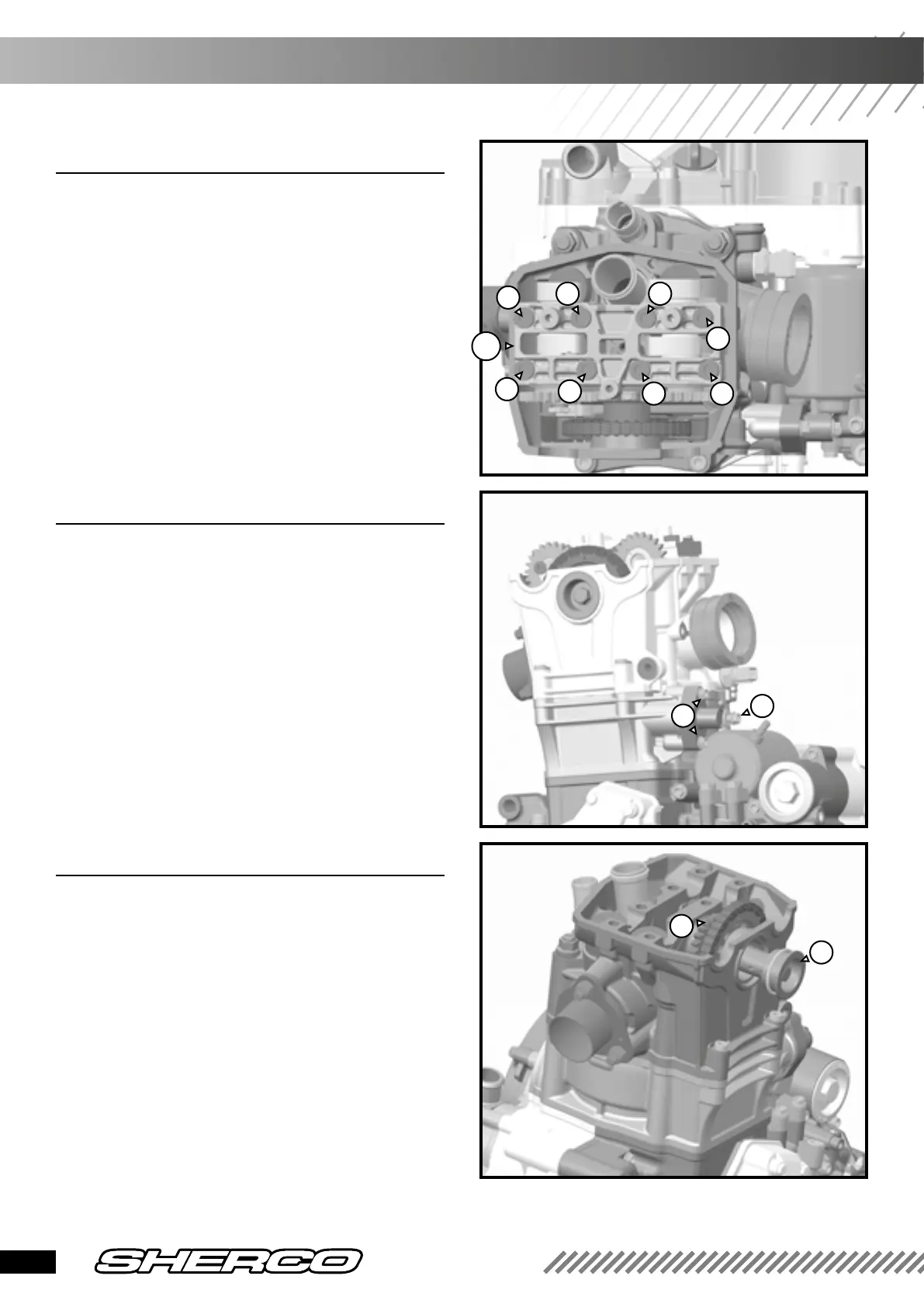

❱❘ Removing the camshafts
• Unscrew the eight screws from the shaft
bearing cap cam following the order shown in the
picture.
• Remove the bearing cap (A).
• Remove the camshafts.
❱❘ Removing the distribution tensioner
• Unscrew the screw (1) and remove the spring.
• Unscrew the two screws (2).
• Remove the tensioner along with its gasket.
❱❘ Removing the drive chain
• Remove the shaft (1).
• Hold the pinion (2) and disengage the chain.
• Remove the pinion (2).
• Remove the timing tool from the top dead cen-
ter position 1819.
1
5
2
68
4
3
7
A
1
1
2
2
