❱❘ Removing the clutch

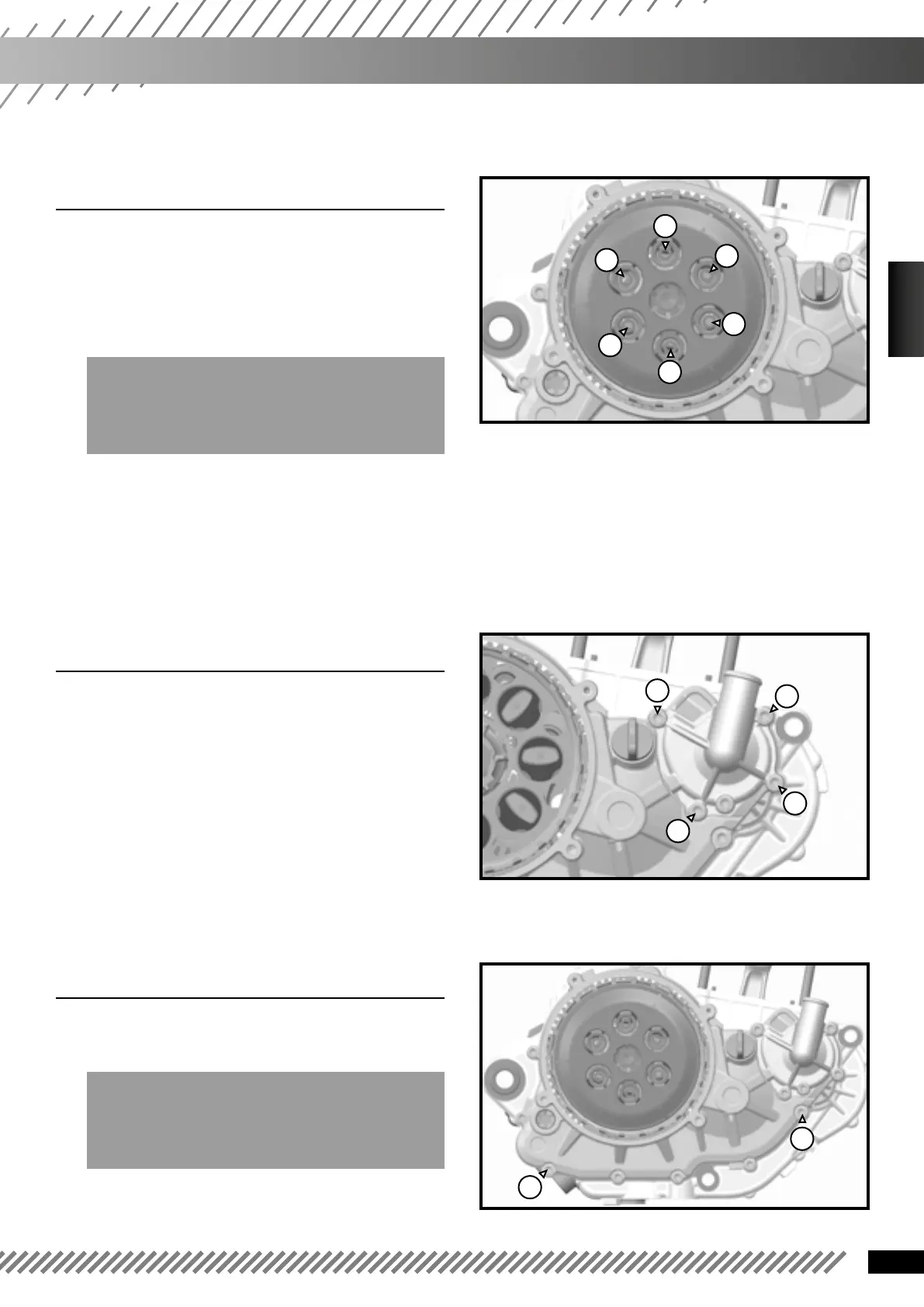

• Remove the clutch housing cover by unscrewing
the 4 screws. Beware of the O-ring located on the
rim of the cover.
• Set the TDC 1819 tool.
WARNING
Do not use this tool for tightening or loosening
with a torque value higher than 10 Nm.
• Remove the 6 screws from the pressure plate.
• Remove the friction and metal plates.
• Make sure the inner clutch hub can freely
rotate.
❱❘ removing the water pump housing
• Remove the screws (1) of the water pump
housing.
Beware of the O-ring located on the rim.
❱❘ Removing the clutch housing
• Dismount the 8 screws of the clutch housing.
WARNING
You need to identify the screws,
6 are 25 mm long, 2 are 30mm long (screw (1)).
• Remove the clutch housing and remove
the seal carefully.
1
3
6
4
2
5
1
1
1
1
1
1
