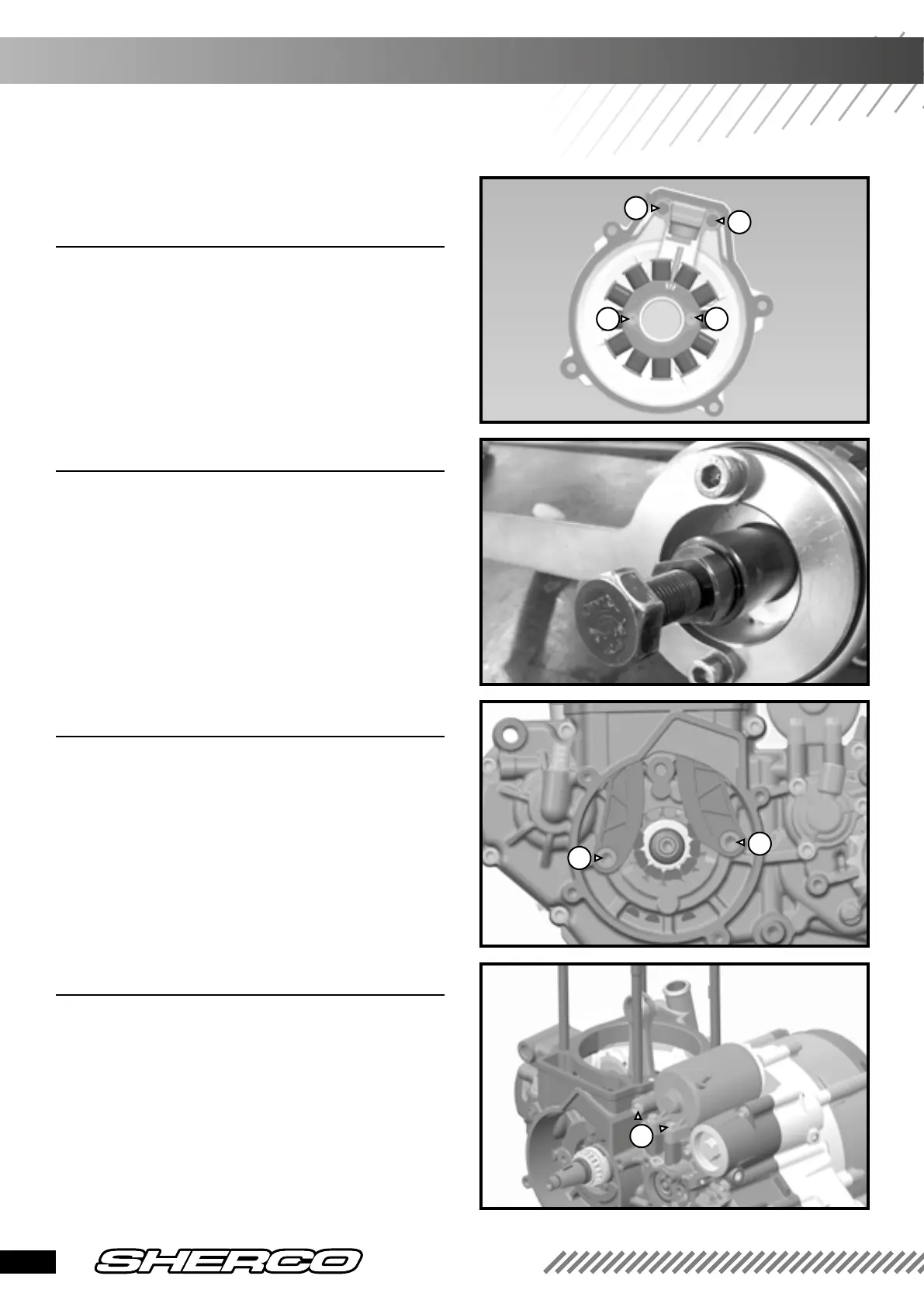

❱❘ Removing the rotor
• Use the rotor maintenance tool 4753.
• Unblock the central nut.
• Extract the flywheel with the flywheel
extractor R462.
❱❘ Changing the stator and the engine
speed sensor
• Remove the 2 screws from the sensor (2) and
the two screws from the stator (1).
• Set up the new parts.
• Reinstall the screws with red thread lock
and tighten to 7 Nm,
❱❘ Removing the drive chain
• Unscrew the drive chain guide plates (1) and (2).
• Remove the drive chain.
❱❘ Removing the electric starter
• Unscrew the two screws (1) and pull
horizontally to the left.
Remove the oil filter, if not done yet.
1 1
2
2
2
1
1
REMOVING THE ENGINE
