32
1
3
6
4
2
5
450 SEF-R

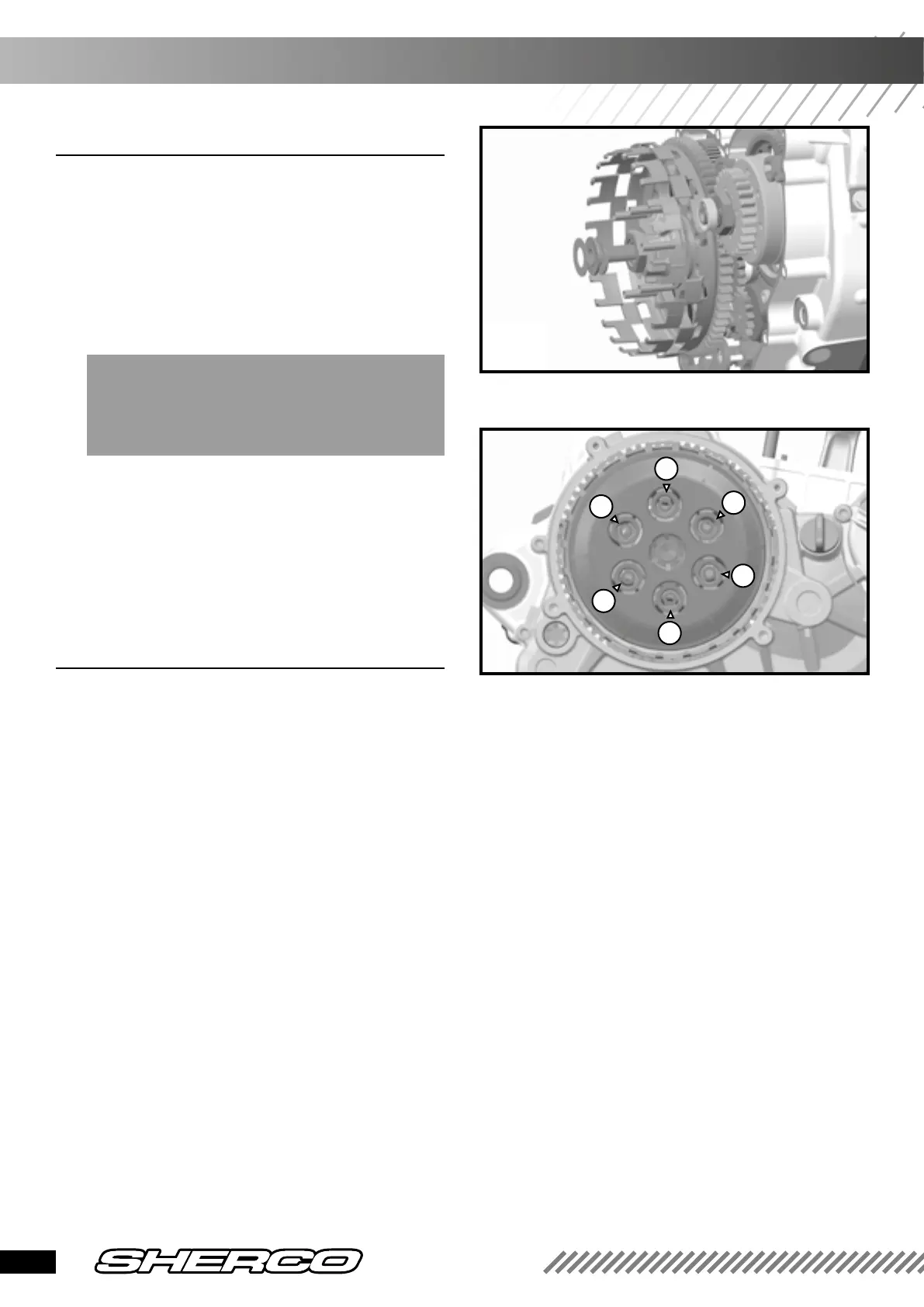

❱❘ installing the clutch
• Put the 8 friction discs and the 7 metal discs,
starting with a friction disc.
• Install the finger follower and do not forget to
install the stop and the washer.
• Put the pressure plate and the 6 screws fol-
lowing the order shown in the picture.
• Place the TDC 1819 tool.
WARNING
Do not use this tool for tightening or loosening at
a torque value superior to 10 Nm.
• Place the clutch housing cover by tightening the
4 screws. The 4 screws are not the same length.
Beware of the O-ring located on the rim of the lid.
• Remove the TDC 1819 tool.
Tightening torque of the plate screws: 10 Nm.
❱❘ installing the electric starter
• Lubricate the starter O-ring.
• Fit the electric starter and tighten the 2 screws.
Tightening torque of the starter: 10 Nm.
ENGINE ASSEMBLY
