450 SEF-R
❱❘ installing the cylinder
• Seal the joint between the left and right casings
with sealing dough.
• Set the guide pins and a socket joint.
• Lubricate the piston skirt.
• Oil the cylinder.
• Fit the cylinder paying attention to the rings.
• Place the piston at TDC and the 1819 tool.
❱❘ installing the cylinder head
• Set the guide pins and the cylinder head gasket.
• Set the washers and nuts.

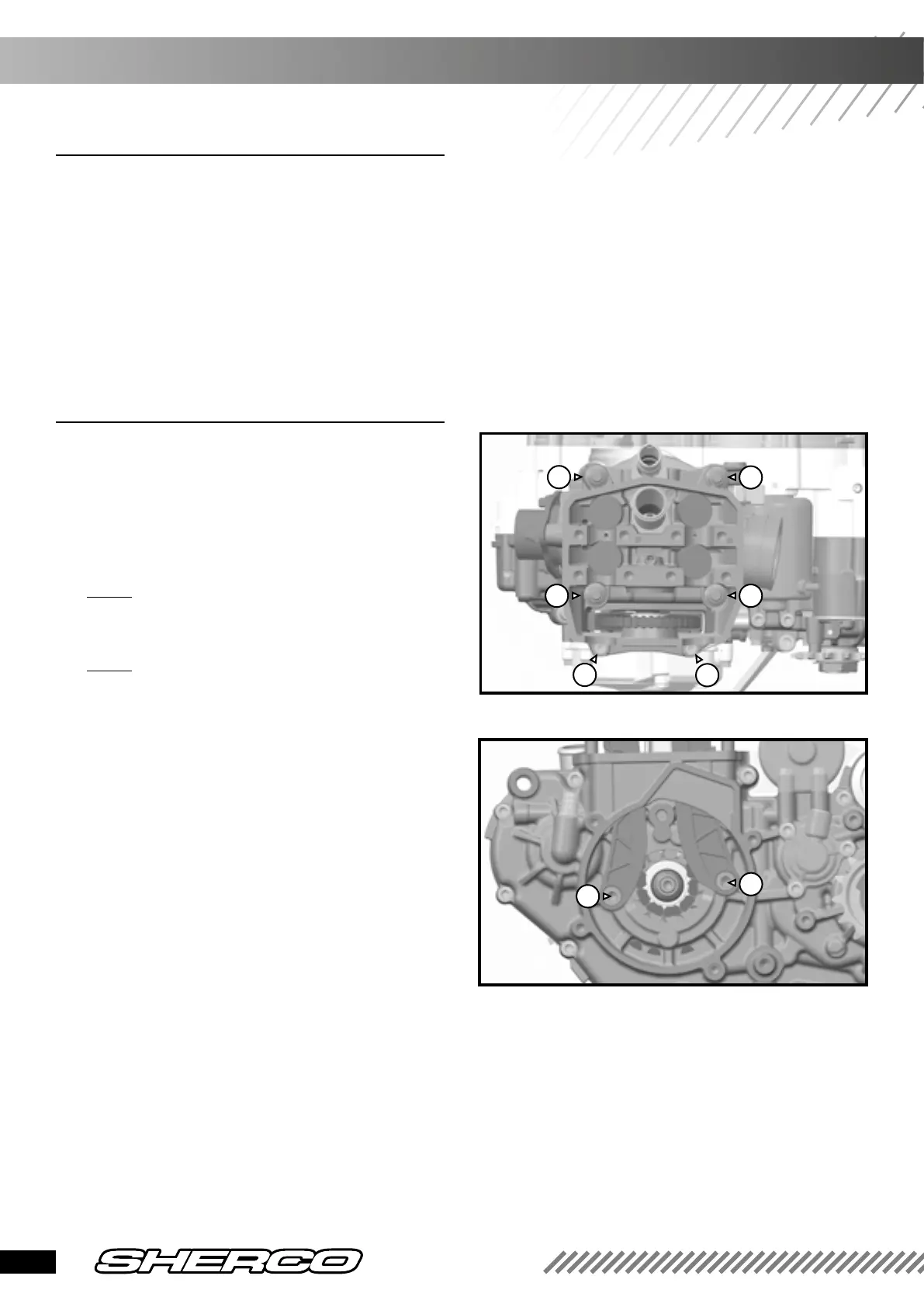

• Screw the cylinder head in the order shown in
the picture.
Pass 1
Tightening torque of nuts 1/2/3/4: 30 Nm.
Pass 2
Tightening torque of nuts 1/2/3/4: 50 Nm.
Tightening torque of nuts 5/6: 10 Nm.
