ENGLISH

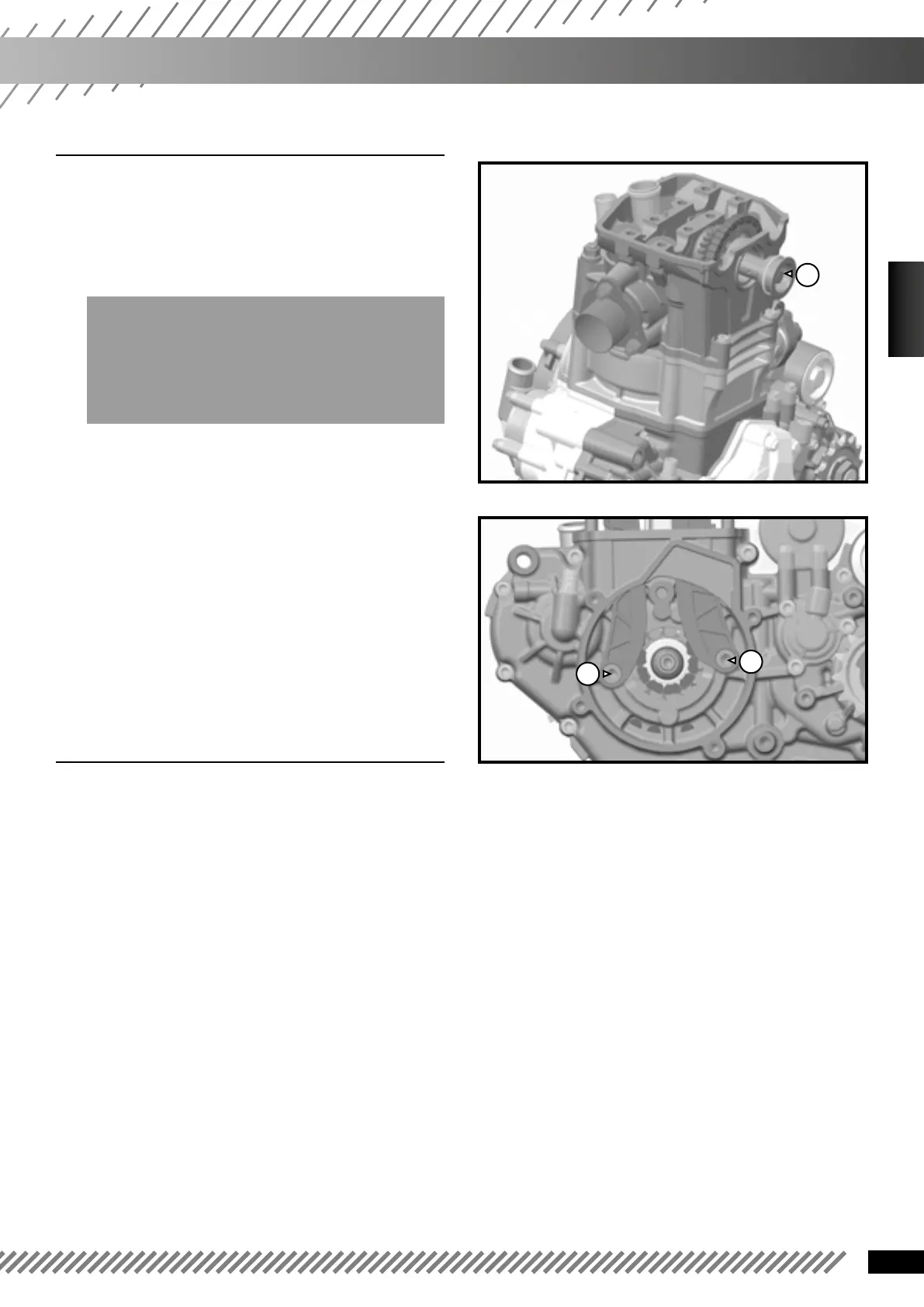

❱❘ Installing the drive chain
• Set the 2 distribution guide plates going through
the chain well.
• Fit the chain on the crankshaft pinion.
• Put the distribution upper pinion.
WARNING
Make sure that the mark is vertical to the cylin-
der, or that the FLANGE mark is aligned with the
cylinder head gasket plane.
• Do not forget the two-needle housing of the
pinion.
• Place back the axis (2) and the O-ring and tigh-
ten them.
Tightening torque of the shaft: 30 Nm.
• Apply blue thread lock on the two screws (1).
Tightening torque of the plate screws (1): 10 Nm.
• Put in the drive chain.
Tensioner tightening torque: 10 Nm.
❱❘ Installing the rotor
• Place the rotor.
• Use the 4753 rotor holding tool.
• Put medium Loctite and tighten the central nut.
Tightening torque of the oil cap: 80 Nm.
2
1
1
1
ENGINE ASSEMBLY
