1
Stepper motor (idle control and engine brake)
2
Injector
3
Temperature / pressure sensor (TMAP)
4
TPS: throttle position sensor
1.2- Exxodiag diagnostic description tool reference 4967
The diagnostic tool allows you to perform diagnostic operations, to update injection mapping and to verify certain
information (serial number , operating hours, etc.).
1.3- Composition of the diagnostic tool
The case consists of a cable with a USB connector to MUX, a MUX device, a MUX cable to the motorcycle dia-
gnostic connector, an installation CD, and a user manual.
Injection diagnostic tool SYNERJECT
1
2
3
4

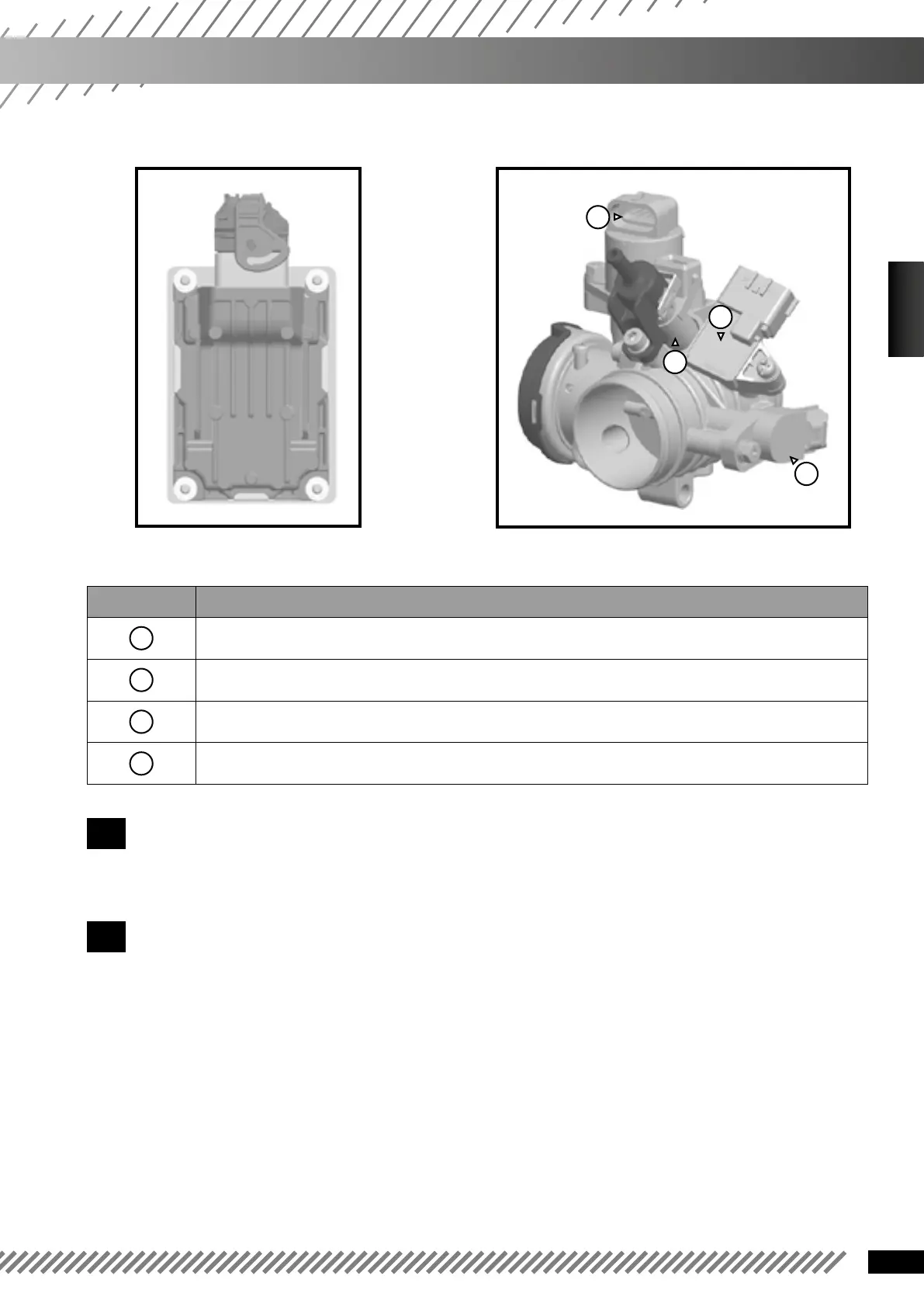

Synerject M3C Calculator Synerject Ø42 mm Throttle Body
