49
ENGLISH

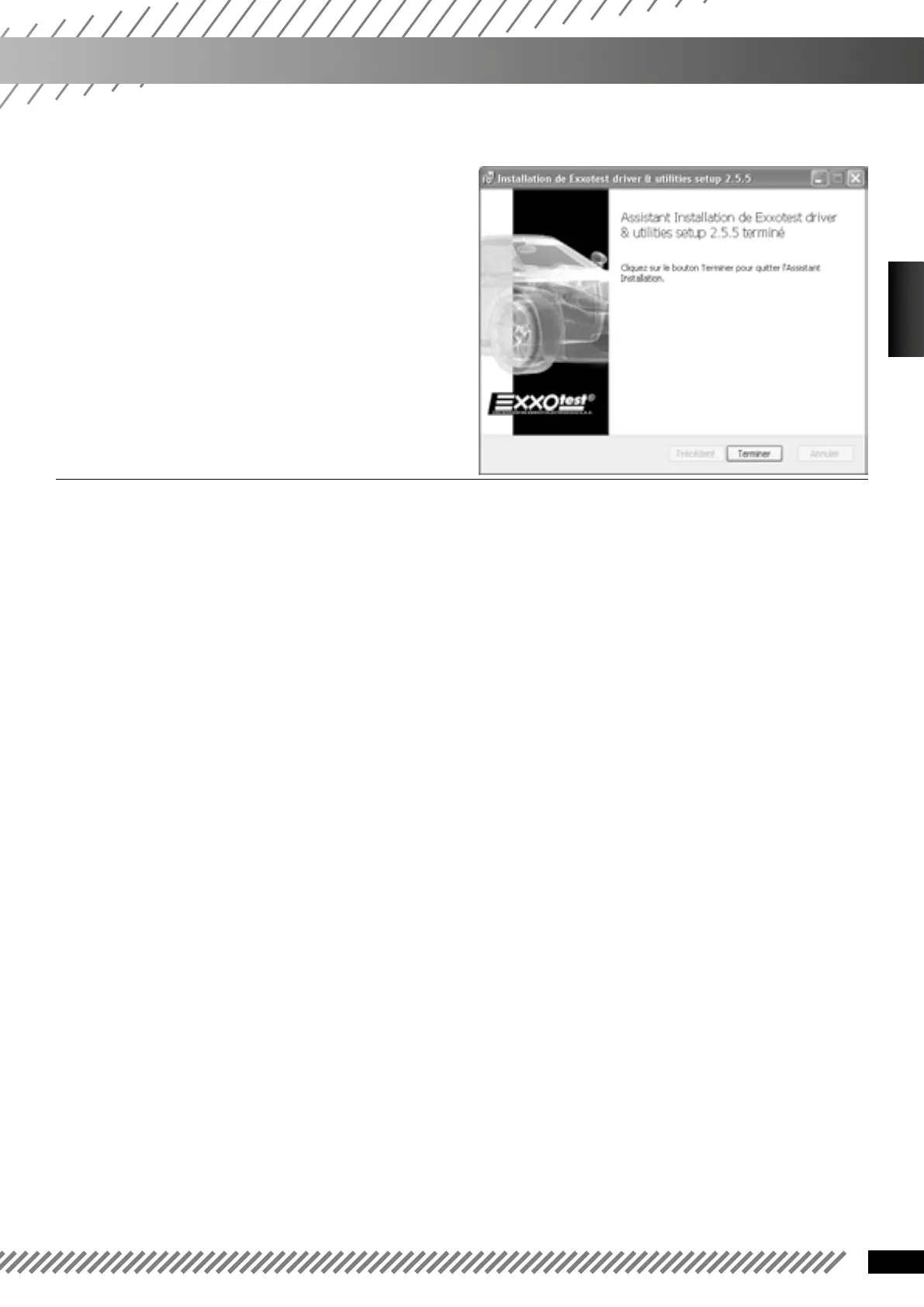

• The following window will open. Click on
«Finish».
The installation is complete.
B- Connect the «MUXDIAG II» cable and its interface to a USB port on your computer.
Connect the cable to the diagnostic connector of the motorcycle.
Make sure the «MUXDIAG II» unit is properly powered by checking the LED:
• Solid blue: PC connection properly established.
• Flashing blue: communication with PC in progress.
• Blue off: no connection to the PC, or device in standby; it can also indicate a problem with the USB connector.
• Solid green: firmware issue.
• Flashing green (slow): firmware correctly run.
• Flashing green (fast): communication with PC in progress.
• Green off: no firmware.
• Solid red: correct power supply to the card.
• All LEDs OFF: the outlet is not powered on, or is off or USB in on standby mode.
Injection diagnostic tool SYNERJECT
