2.2 Instrument Placement and Site Requirements
2-7
AA-6800/6650 Instruction
Front view
Plane view

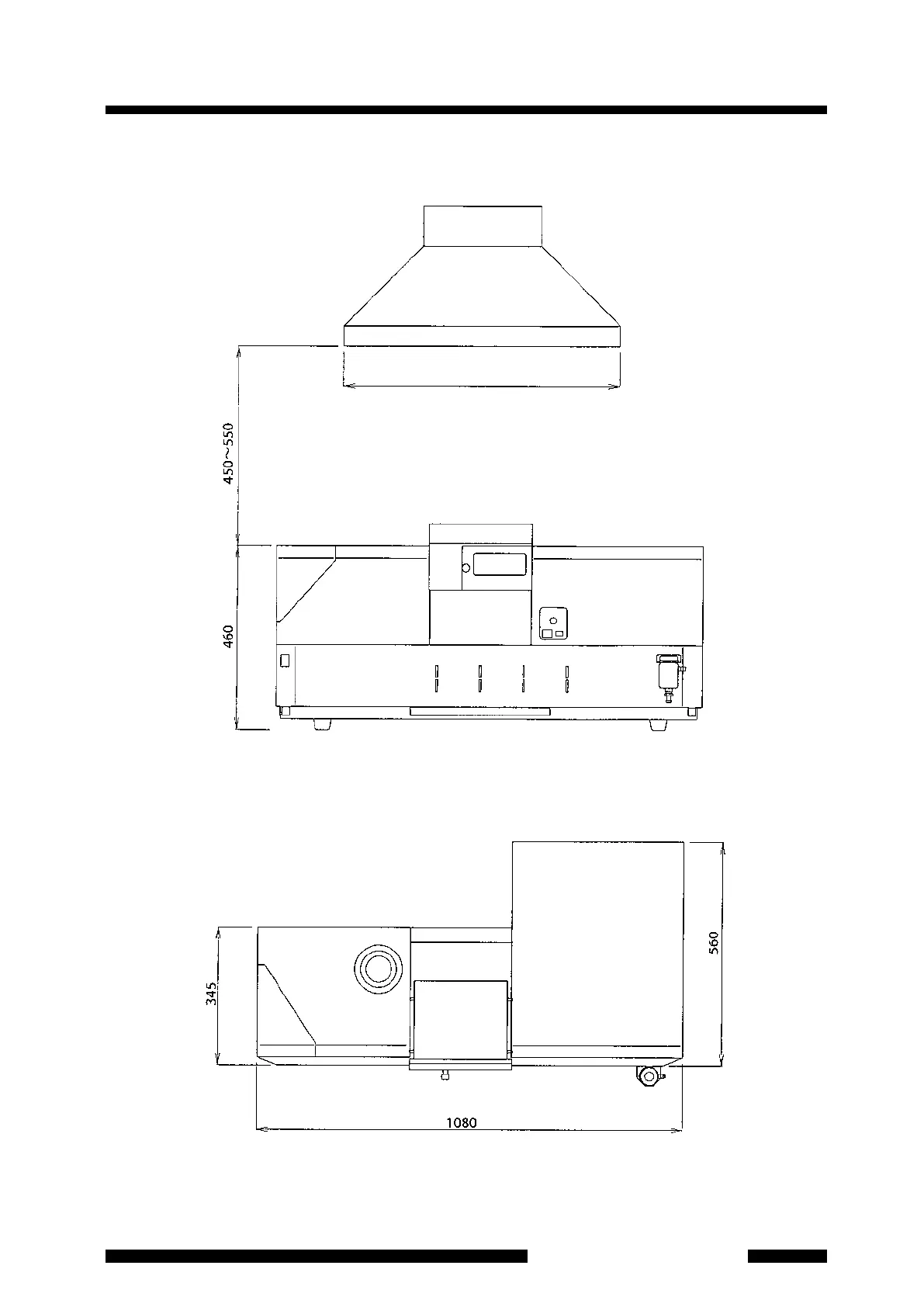

Figure 2.3 Instrument Placement
About 700
Duct
(Unit: mm)
