102(108)

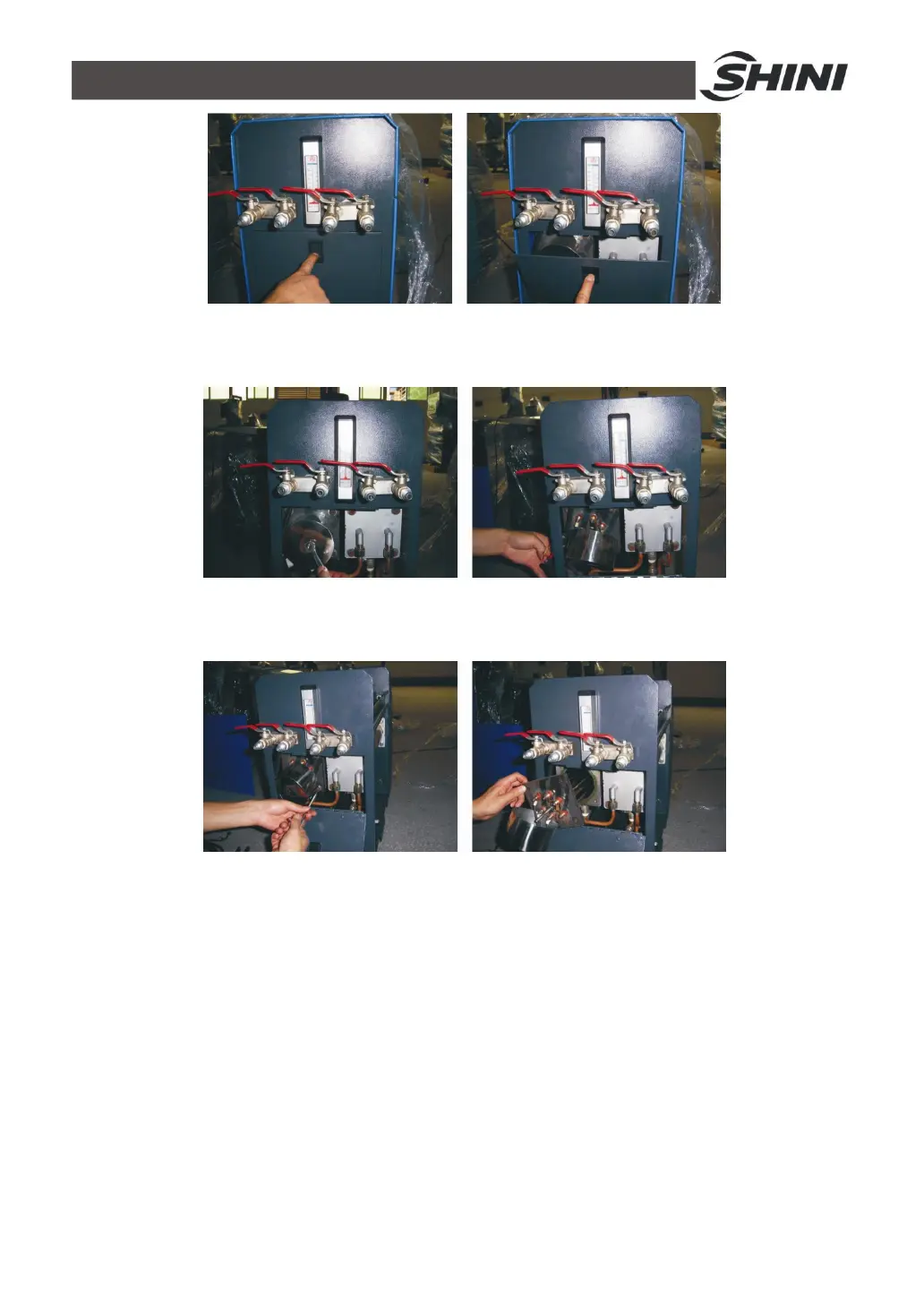

Picture 6-6：Pipe Heater 1
2) Unscrew the screws of heater cap and take it down. (Refer to pictures below)
Picture 6-7：Pipe Heater 2
3) Unscrew the screws of pipe heater to take it out. (Refer to pictures below)
Picture 6-8：Pipe Heater 3
4) Re-fix the pipe heater in a reverse order.
6.5 Cooling Pipes
1) Pull the black door locker downward, then draw it outward to open machine
rear cover. (Refer to pictures below)
To Next Page
